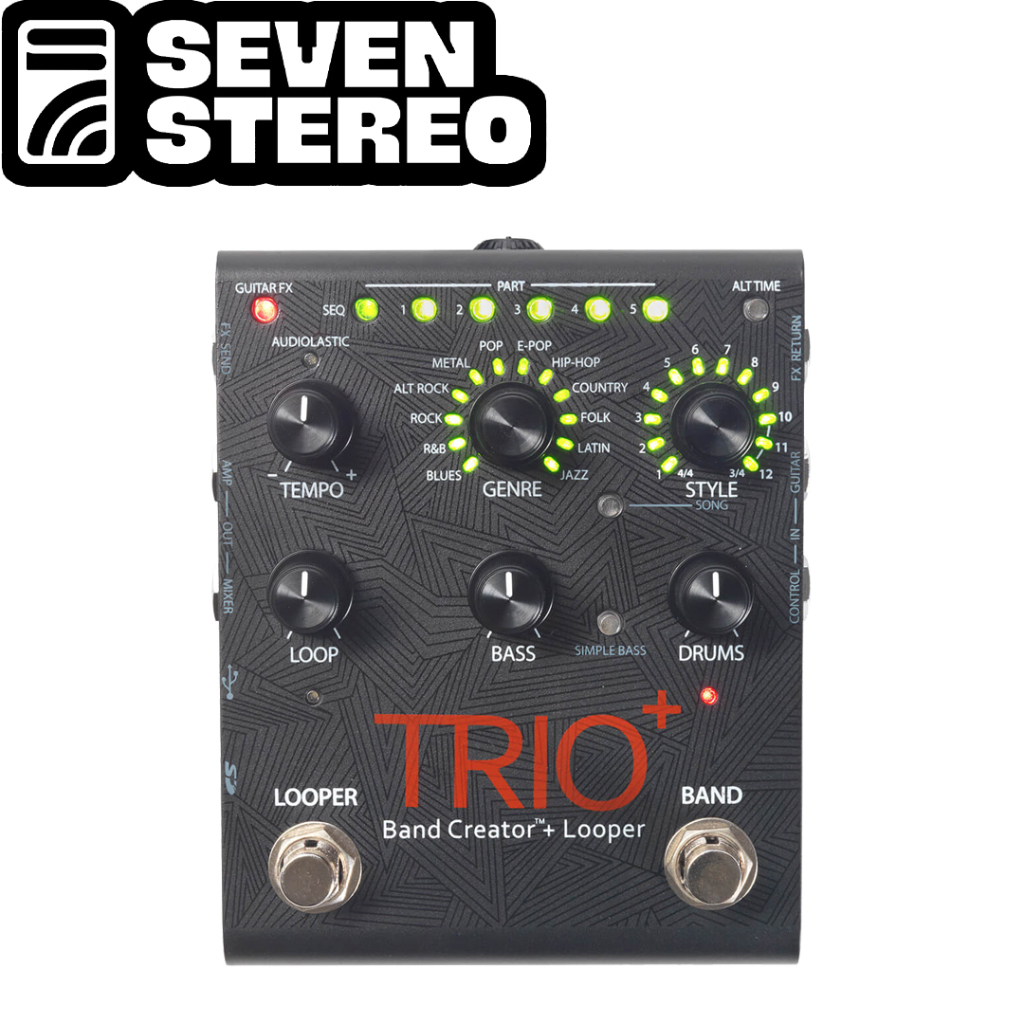

DIGITECH Trio Plus Band Creator + Looper Pedal

Detail DIGITECH Trio Plus Band Creator + Looper Pedal

General Specifications
CONTROLS : Tempo, Genre, Style, Loop, Bass, Drums, Headphone Volume
BACKLIT BUTTONS : Guitar FX, Seq, Part 1-5, Alt Time, Song, Simple Bass
FOOTSWITCHES : Looper, Band
LEDS : Genre types, Style 1–12, Audiolastic, Looper, Band
JACKS : Power, Control In, Guitar In, FX Return, FX Send, Amp Out, Mixer Out, Headphone

OTHER : Mini USB port, microSD card slot
BIT DEPTH : 24-bit
SAMPLE RATE : 44.1 kHz
SIGNAL-TO-NOISE RATIO : 110dB, A-weighted
MAXIMUM RECORDING TIME : 230 seconds per song part — based on a minimum 50 BPM and 48 bars per part
USB TYPE : Mini-B
SD CARD TYPE : microSDHC, Class 10
SD MIN/MAX STORAGE SIZE : 8 GB/32 GB
POWER REQUIREMENTS : 9 VDC external power adapter
POWER CONSUMPTION : 7.2 W
CURRENT DRAW : 800 mA

Dimensions
LENGTH : 5.4″ (137mm)
HEIGHT : 2.5″ (64mm)
WIDTH : 4.25″ (108mm)
WEIGHT : 1.46 lb. (622g)

Audio Output
AMP OUTPUT TYPE
Unbalanced, 1/4″ TS
AMP OUTPUT IMPEDANCE
1 kΩ
MIXER OUTPUT TYPE
Unbalanced, 1/4″ TS
MIXER OUTPUT IMPEDANCE
1 kΩ
FX SEND OUTPUT TYPE
Unbalanced, 1/4″ TS
FX SEND IMPEDANCE
1 kΩ
HEADPHONE OUTPUT TYPE
1/8″ (3.5 mm) Stereo Mini Jack
HEADPHONE OUTPUT IMPEDANCE
120 Ω
Audio Input
GUITAR INPUT TYPE
Unbalanced, 1/4″ TS
GUITAR INPUT IMPEDANCE
1 MΩ
FX RETURN INPUT TYPE
Unbalanced, 1/4″ TS
FX RETURN IMPEDANCE
1 MΩ
CONTROL INPUT TYPE
1/4″ TRS (compatible with DigiTech FS3X)
