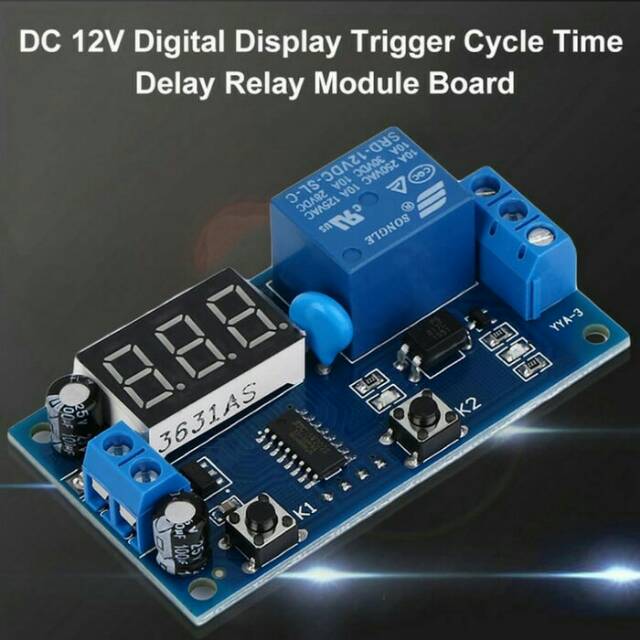

Detail Digital timer module (2B3D) timer delay switc 12 v

Digital Timer 2 Button 3 Display

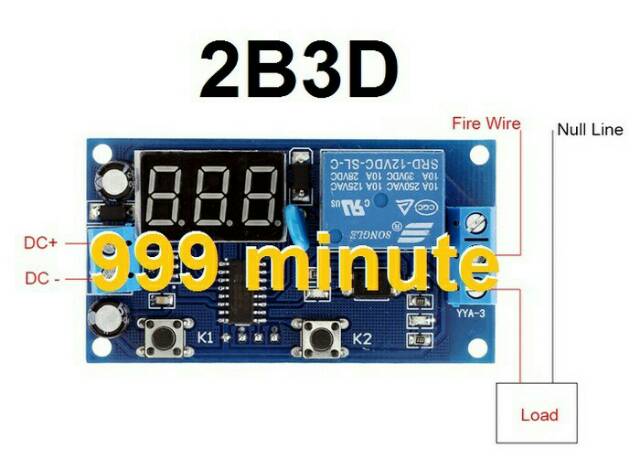

Rentang waktu 0,1 ~ 99.9 detik, 1 ~ 999 detik, 1 ~ 999 menit
Bisa ON sampai 16jam OFF 1 menit.. terus menerus tanpa triger..
Tegangan kerja 12V DC

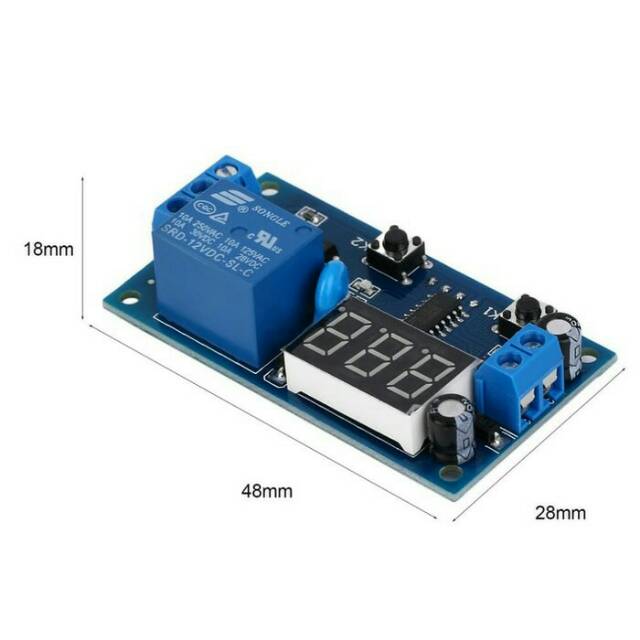

Ukuran PCB: 65 * 36 mm

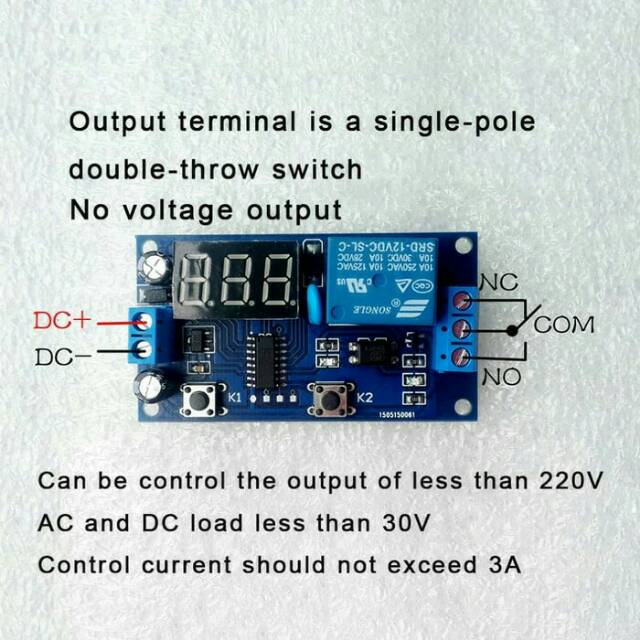

Output Capacity: DC 5~30V, AC 220V 10A
Static Current: 20mA
Working Current: 50mA

Features:
New upgrades to simplify, meeting the users' needs.
LED 3 digits display, intelligent control, time relay/delay function.
The use of opto isolated input and output, enhanced anti-jamming capability and consumption.
The last setting parameters can be memorized after power off.
To ensure stability, industrial grade PCB board.
Applied to control motor, bulb, LED light string, mini pump, etc.
