DIGITAL TEMPERATURE CONTROLLER C100 thermostat control suhu 220v REX C-100 SSR

Detail DIGITAL TEMPERATURE CONTROLLER C100 thermostat control suhu 220v REX C-100 SSR

hanya dapat rex c100 saja, tanpa ssr dan thermocouple
*********

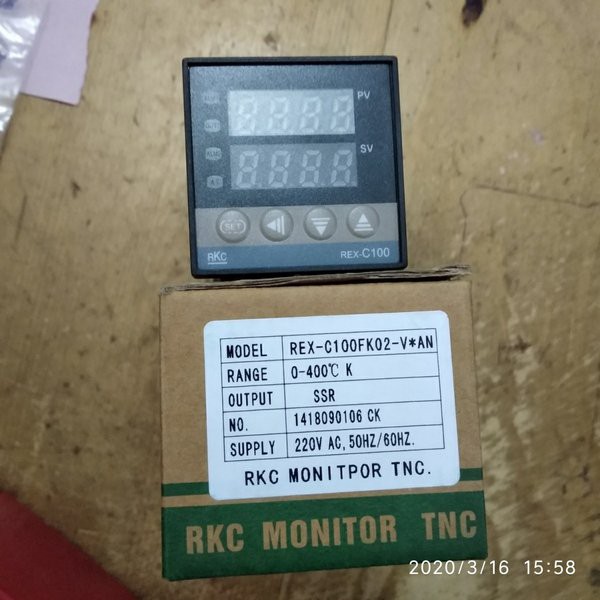

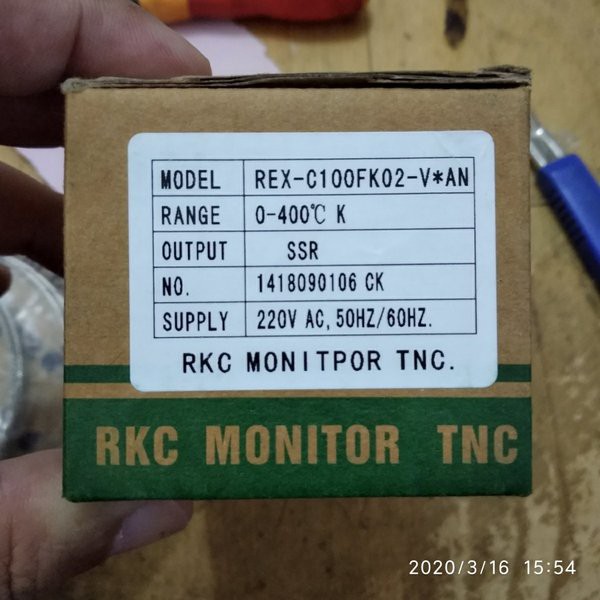

REX C100 TEMPERATURE CONTROLLER (REX-C100 FK02-V*DN)
OUTPUTnya SSR jadi disambung ke SSR
adalah modul controller/thermostat digital untuk mengendalikan ON/OFF nya pendingin ruangan (AC), pemanas (Heater), mesin penetas telur dan alat pendingin/pemanas lainnya.
******
utk paket lengkap dgn SSR relay
/p/rumah-tangga/perkakas-rumah-tangga/1khtam-jual-rex-c100-temperature-controller-thermostat-thermocouple-c-100-c-100-control
*********

-- Probe Sensor Thermocouple yang compatible K

**Spesifikasi:
Model: REX-C100 Temperature Controller Kit
Measuring accuracy: 0.5% FS
Cold-end compensation tolerance: ~2C (can be modified by software in 0~50C)
Resolution: 14 bit
Sampling cycle: 0.5 Sec
Power supply: 220V AC
Indicator Process value (PV), Setting value (SV) Output, alarm and self-tuning: LED
PIN control: Self-tuning (including ON/OFF, step-type PID and continuous PID)
OUTPUT : SSR
Alarm function output: 1 way
Contact capacity of output: 250V AC 3A (resistive load)
Setting value (SV): identical to measuring range (PV)
Integral time (I) and Derivative time (D) : 0 ~ 3600 sec (No integral action when set to 0)
Heat-reset proportional cycle: 1 ~ 100 sec
Detective temp range: 0 to 400C
Power consumption: 10 VA
Thermocouple type: K
Size: 48x48x110mm

Probe Sensor Suhu Thermocouple Type K, sebagai sensor untuk mendeteksi suhu 0-400C dan banyak dipakai pada thermostat, thermometer, sensor dan berbagai pengendali suhu lainnya.


**Kelengkapan:
1pcs REX C100 Controller
1lbr User Manual

Gambar produk
