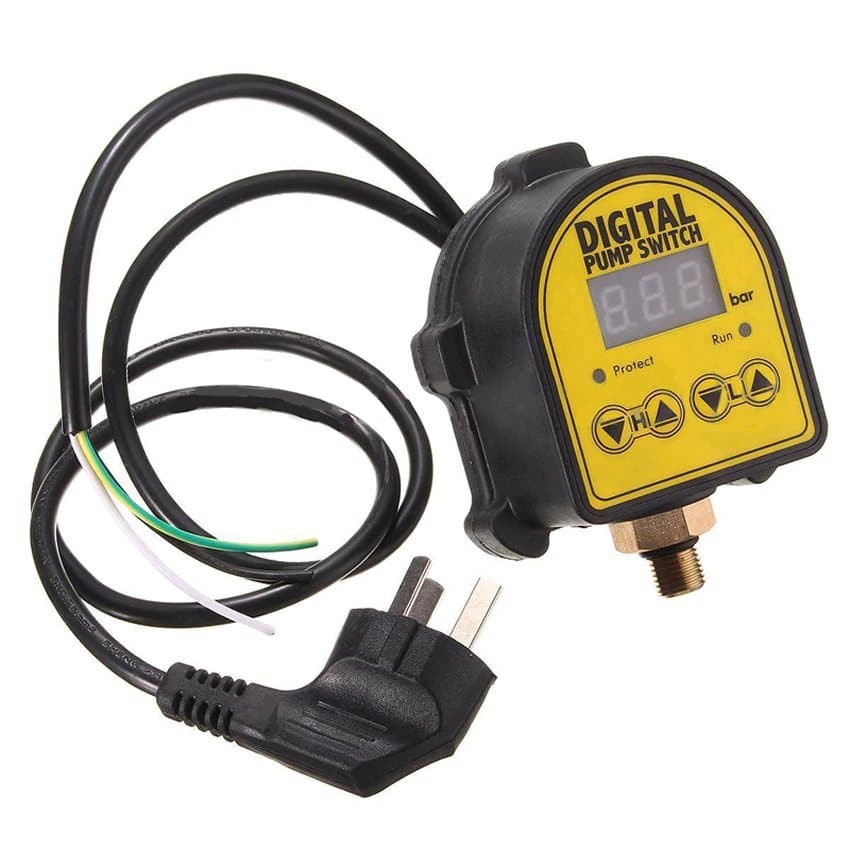

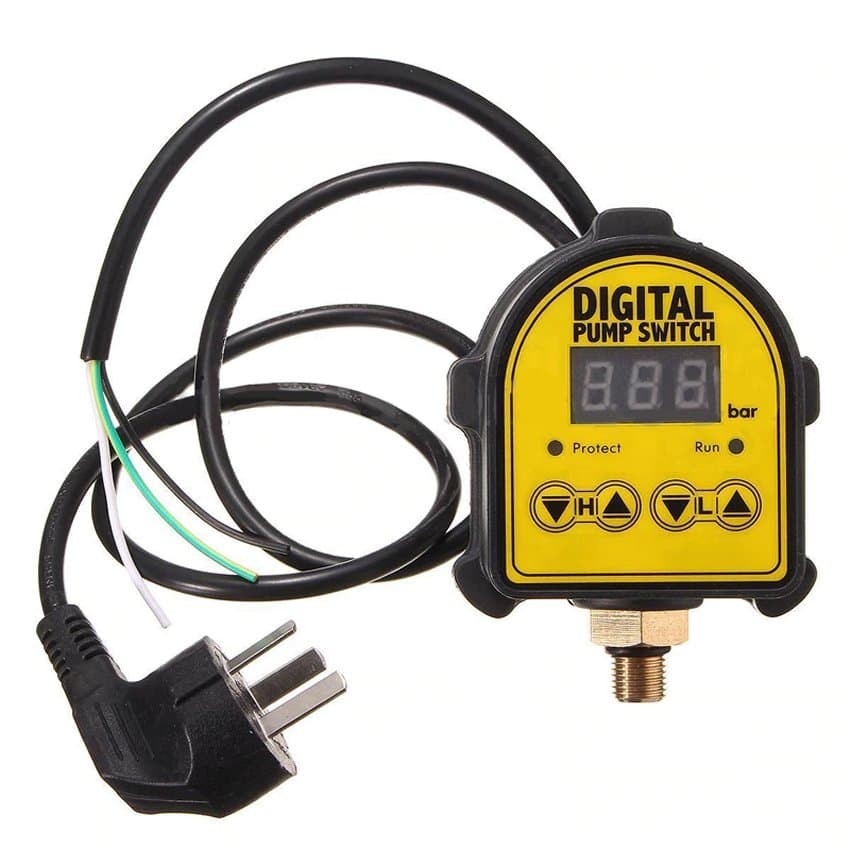

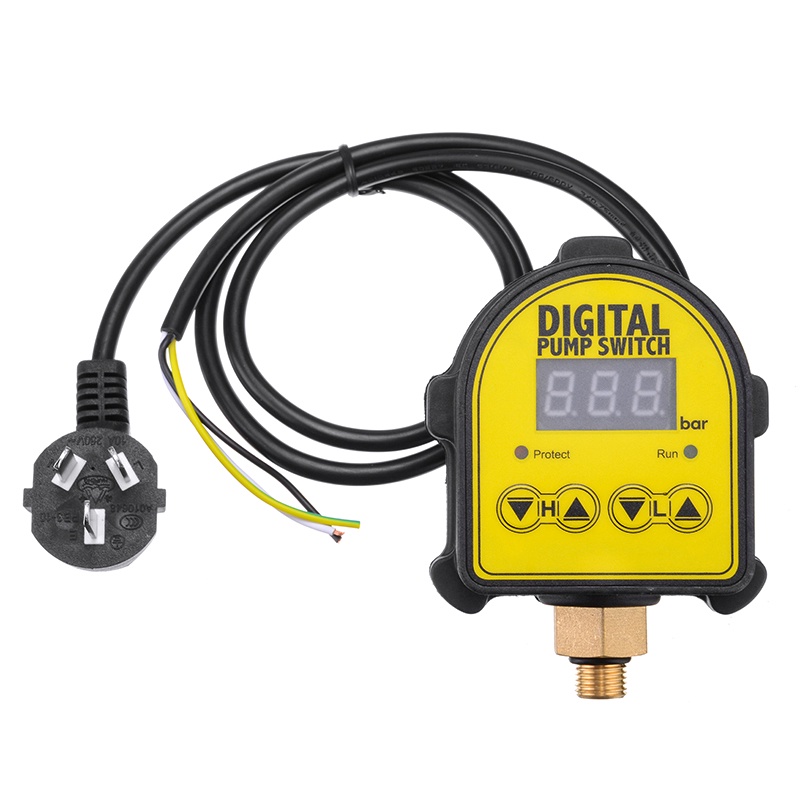

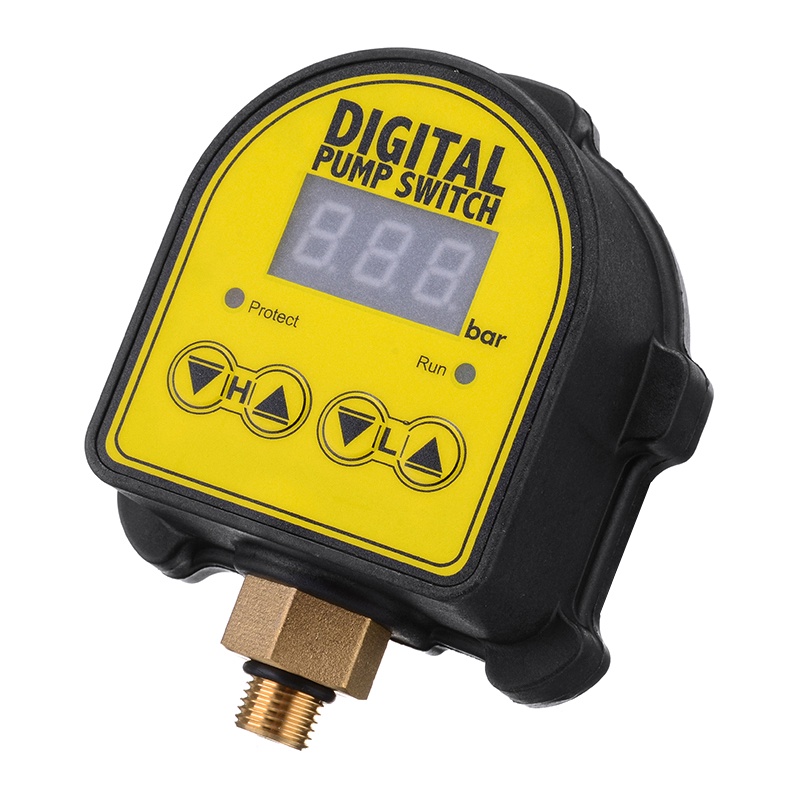

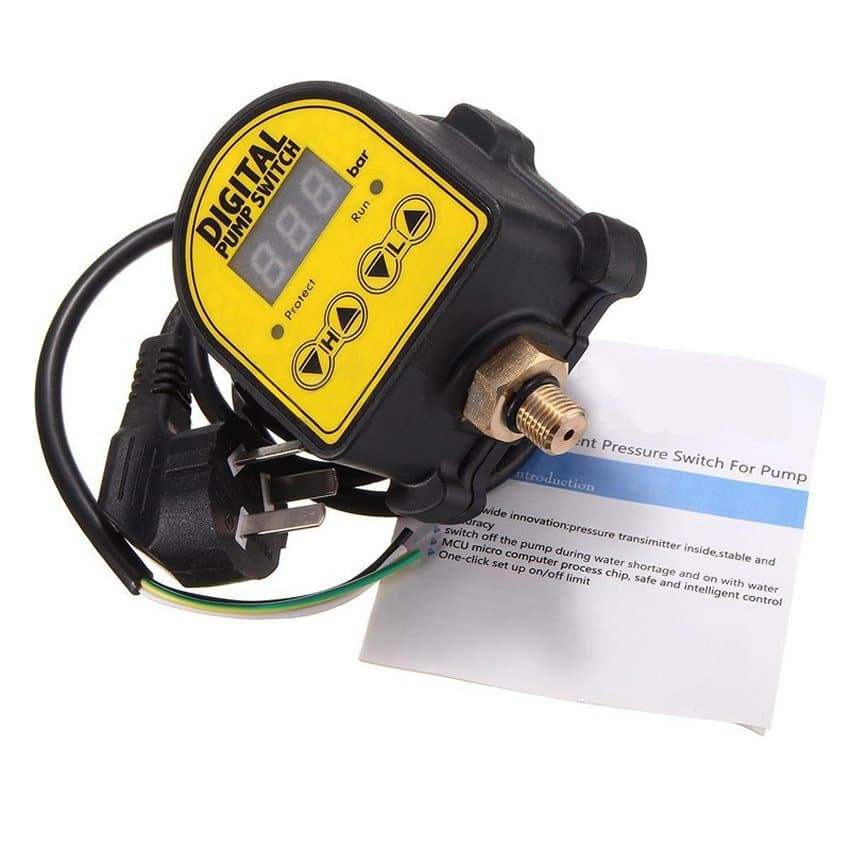

Digital Switch Controller Automatic Pressure Switch Water Pump 10A

Detail Digital Switch Controller Automatic Pressure Switch Water Pump 10A

Ready Stok langsung order saja
100% unit BARU
-----
Garansi quality CHECK sebelum kirim
GARANSI toko 1BULAN
-----
Dikirim dari JOGJA
Garansi packing AMAN (GRATIS bublewarp/kardus)

Specification:
Wiring: 3 wires
White: Positive
Black: Negative
Green& Yellow: Ground

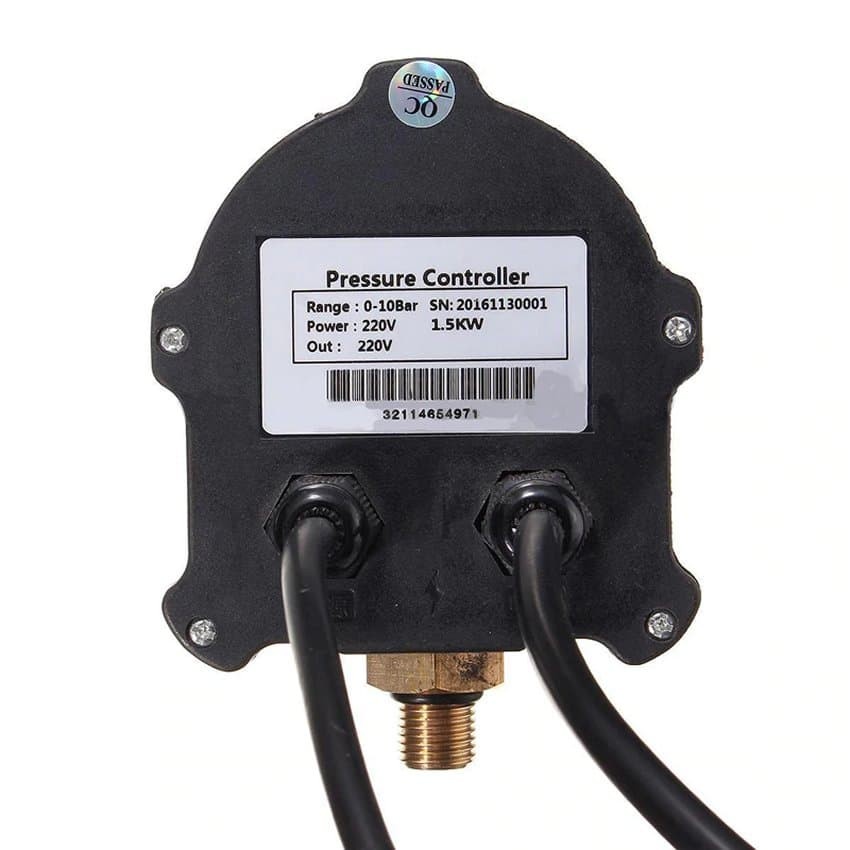

Relay Capacity: 220V AC 10A.
Fluid Temperature: 80 degrees
Socket type: International three flat pins plug

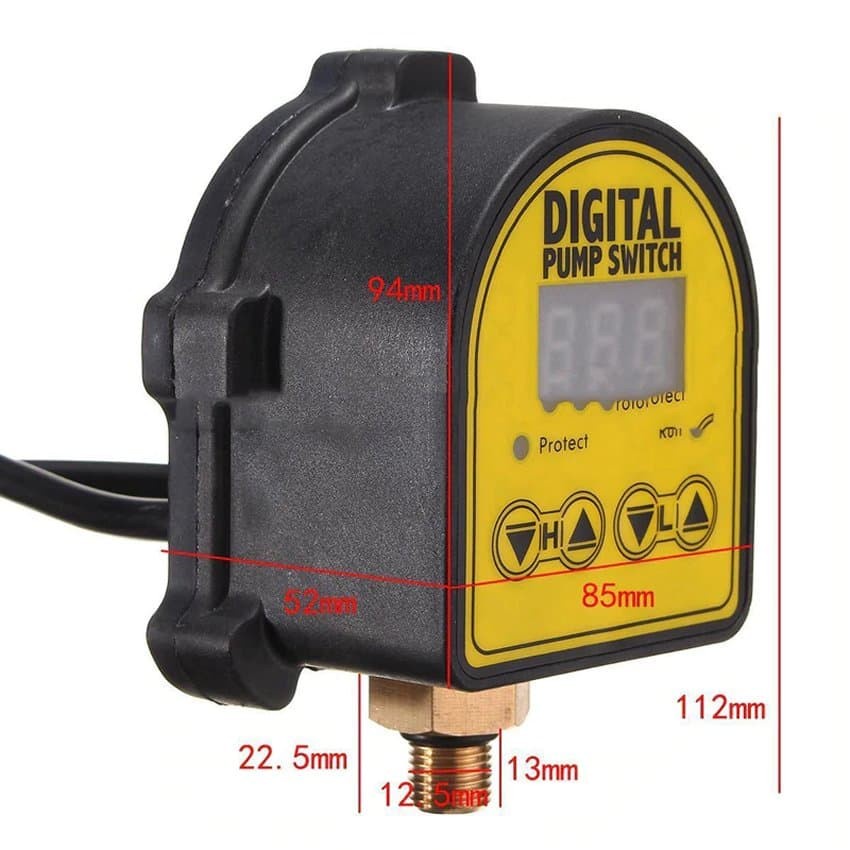

Overall Size (approx.): 85x52x112mm
One is 88cm; the short one is 35cm.
Package Size (approx.): 12x9.3x9.8cm (LxWxH)
Long Life: can be used continuously for more than 20 million times.
Working Pressure Range: 0-10 Bar, matching with all pumps Cable length: the Long
Output signal: active output, to provide pump 220V, start the pump below 1.5KW directly.

Features:
Pressure transmitter inside, stable and accuracy.
Switch of the pump during water shortage and on with water.
MCU micro-computer process chip, safe and intelligent control.

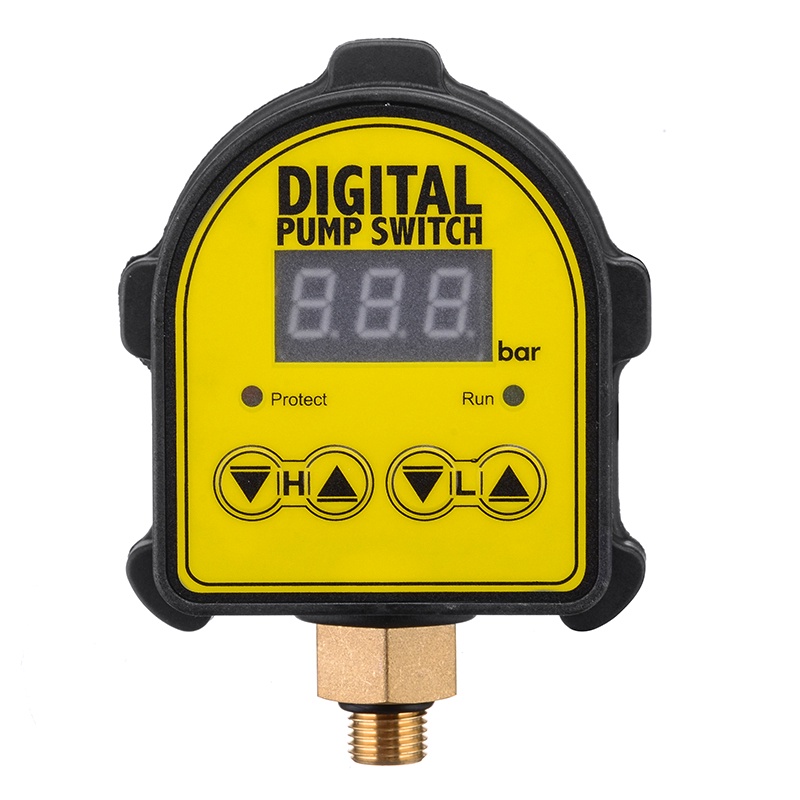

One-click set up on/off limit.

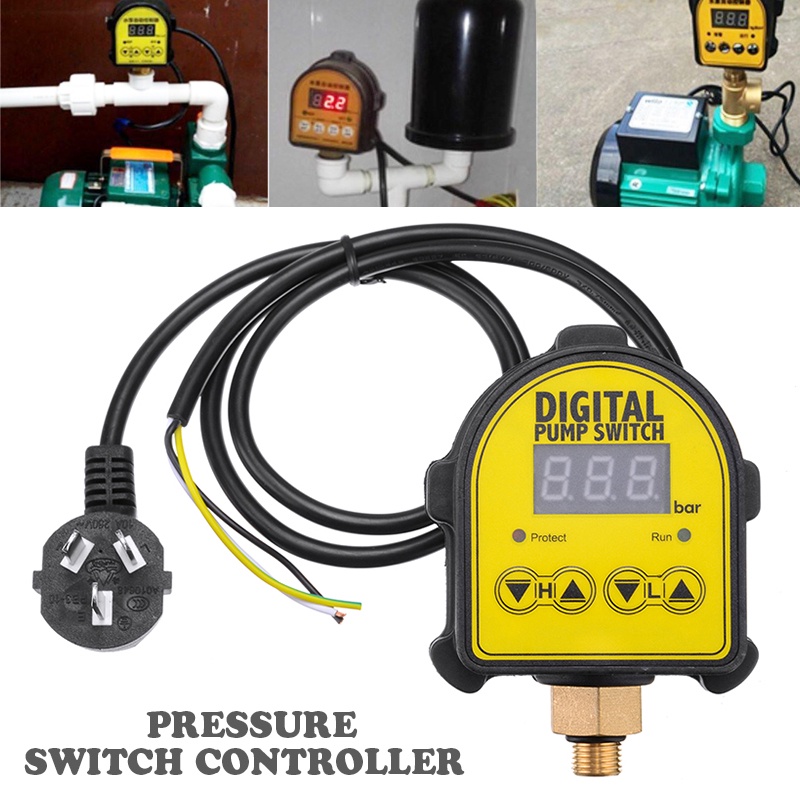

Installation:
If the pump doesn't have a check valve, then a check valve must be installed in front of the pressure, in this case the pump may on/off ,or frequently.
When you turn on the tap water, if the pump is on/off time to time, please adjust the H valve to a larger valve.
If the pump keep runs with stopping, please lower the H valve, on the other hand, if the pump doesn't work, please set the L valve higher.

Package Included:
1x Digital Switch Controller
1 x English user manual

------
