Detail Digital signal audio usb to usb isolation ADuM3160 (1564)

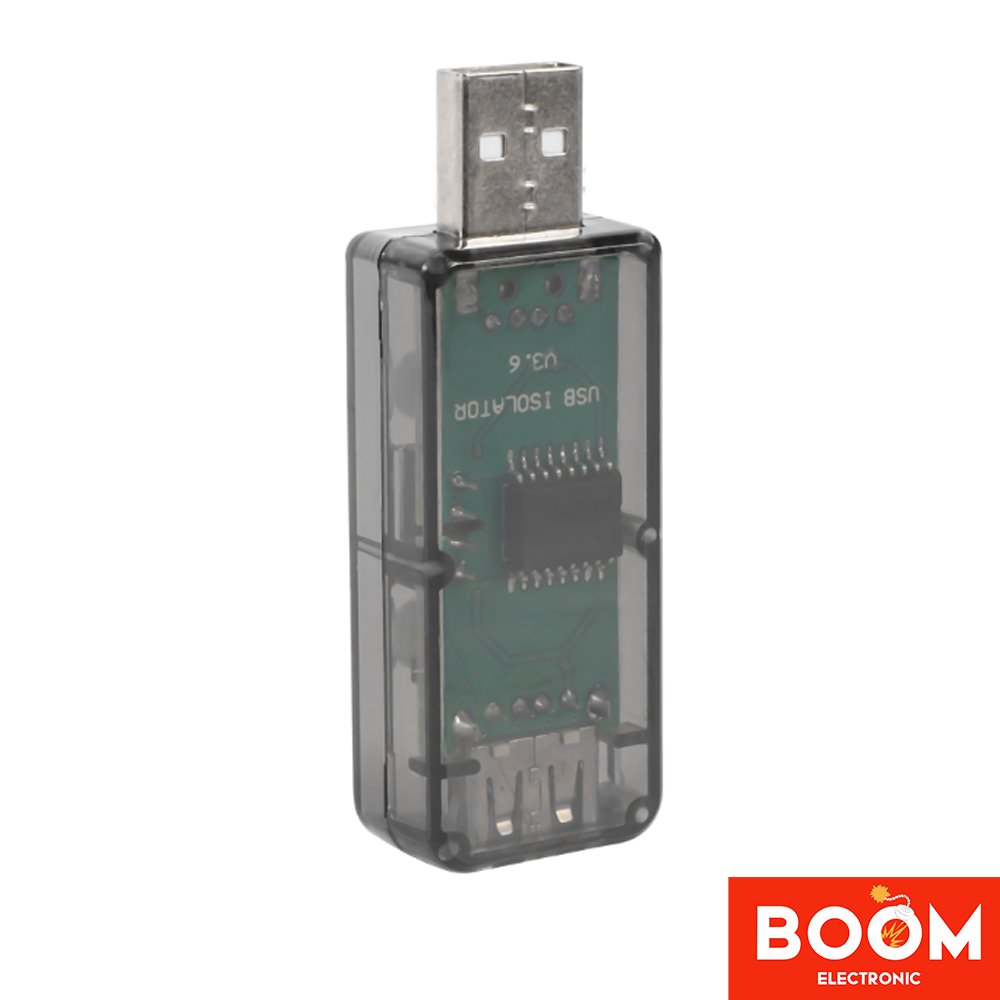

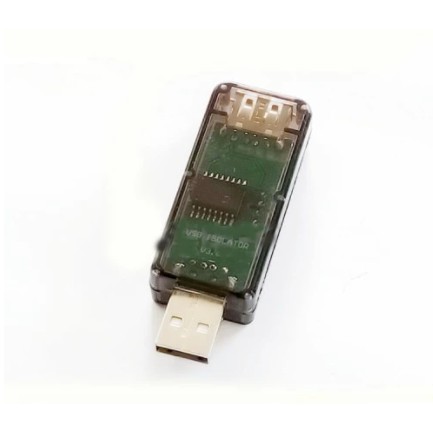

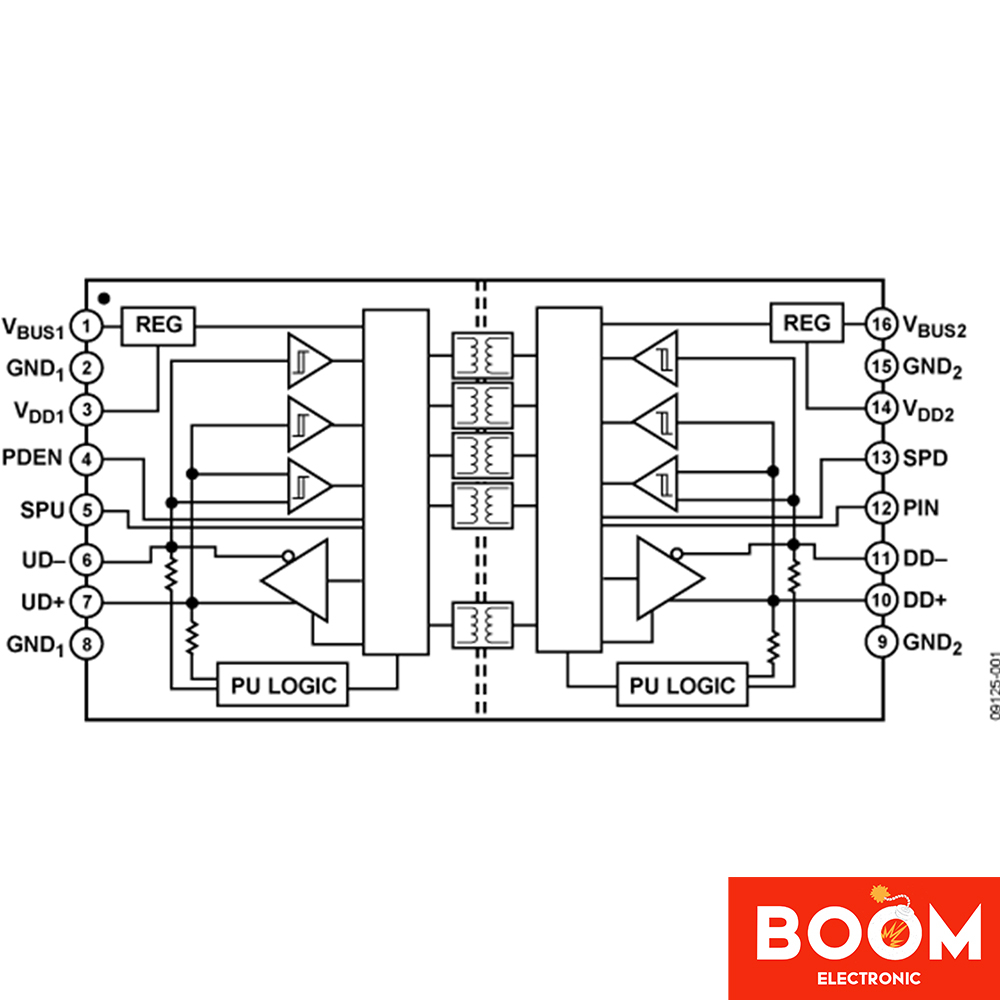

Digital signal audio usb to usb isolation ADuM3160 (1564)his product uses ADI's proprietary iCoupler® technology and is the industry's first single-package USB isolation solution. Compatible with USB 2.0, providing complete isolation 12 Mbps data rate, isolation of 2500V voltage, no external power supply, no driver. The timing, amplitude, direction, speed, and protocol of the USB signal are extremely complex, so the realization of the magnetic isolation of the USB signal is also a very complicated technology. This paragraph basically represents the highest level in the isolation field.
Technical index:
■ Compatible with USB2.0
■ ADUM3160 isolation voltage: 2500V
■ Power module isolation voltage: 1500V
■ Supports USB full-speed 12Mbps, does not support pure high-speed devices
■ Support USB control transmission, batch transmission, interrupt transmission, synchronous/isochronous transmission
■ Power supply: from the USB port of the host computer
■Drive-free, more convenient to use
■ Operating environment: -40℃ to 85℃
