Digital PID Thermostat Temperature Controller RKC REX C-100FK02 Multi Sensor PT100

Detail Digital PID Thermostat Temperature Controller RKC REX C-100FK02 Multi Sensor PT100

Yuk buruan diorder !!!

RKC REX C 100FK02-M*AN merupakan upgrade tipe sebelumnya.
Kita dapat merubah progam sensor pada unit controller sesuai kebutuhan yang di inginkan.

Spesifikasi :
Ouput : Relay (jadi langsung dihubungkan ke beban karena sudah ada RELAY di unit controller)
maksimal :3A
Features :
Measuring accuracy : 0.5%FS
Cold-end compensation tolerance : 2 can be modified by software in 0~50
Resolution : 14 bit
Sampling cycle : 0.5 Sec
Power : AC 220V 50/60HZ
Process value (PV), Setting value (SV)
Output, alarm and self-tuning can be indicated by : LED
PIN control (including ON/OFF, step-type PID and continuous PID)
Self-tuning control
output : relay
Alarm function output : 2 way
Proportional band (P) : 0~full range (ON/OFF control when set to 0)
Detective temperature range : 0 to 1820 (tergantung jesnis thermocouplenyan dan setting SLH / default SLH=400)
Insulation resistance : >50M ohm(500V DC)
Insulation resistance : 1500V AC/min
Insulation resistance : Power Consumption < 10 VA
Service environment : 0~50
Environment with no corrosive gas 30~85% RH

Tipe ini memiliki filtur Multi sensor berupa :
1. Input sensor default berupa RTD PT100
2. Sensor thermocouple tipe K,J,R,S,B,E,N,T
3. Sensor arus dan hambatan

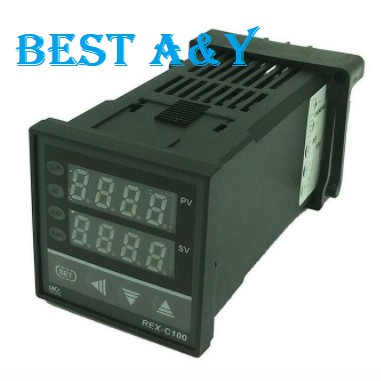

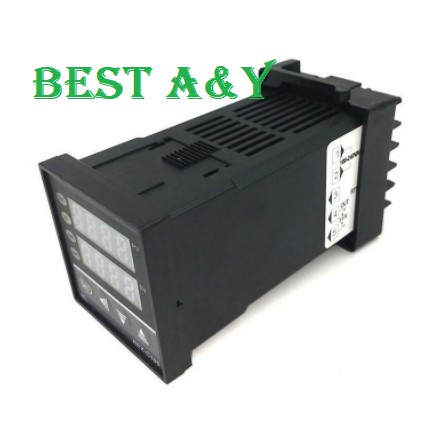

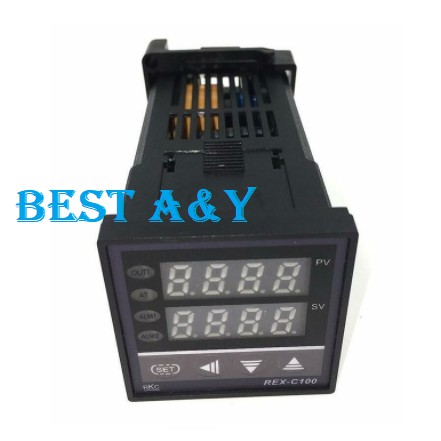

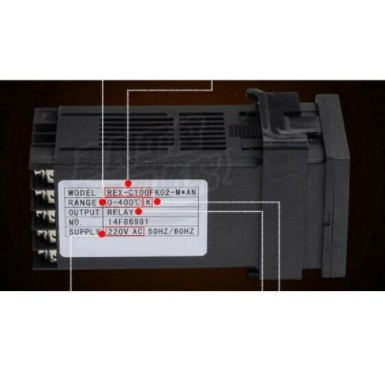

Gambar produk
