Detail DIGITAL PEN MULTIMETER XE7 XE 7 XEAST PEN MINI NON CONTACT 6000 COUNTS
READY STOCK !!!!
Max Display: 6000 counts.
True RMS

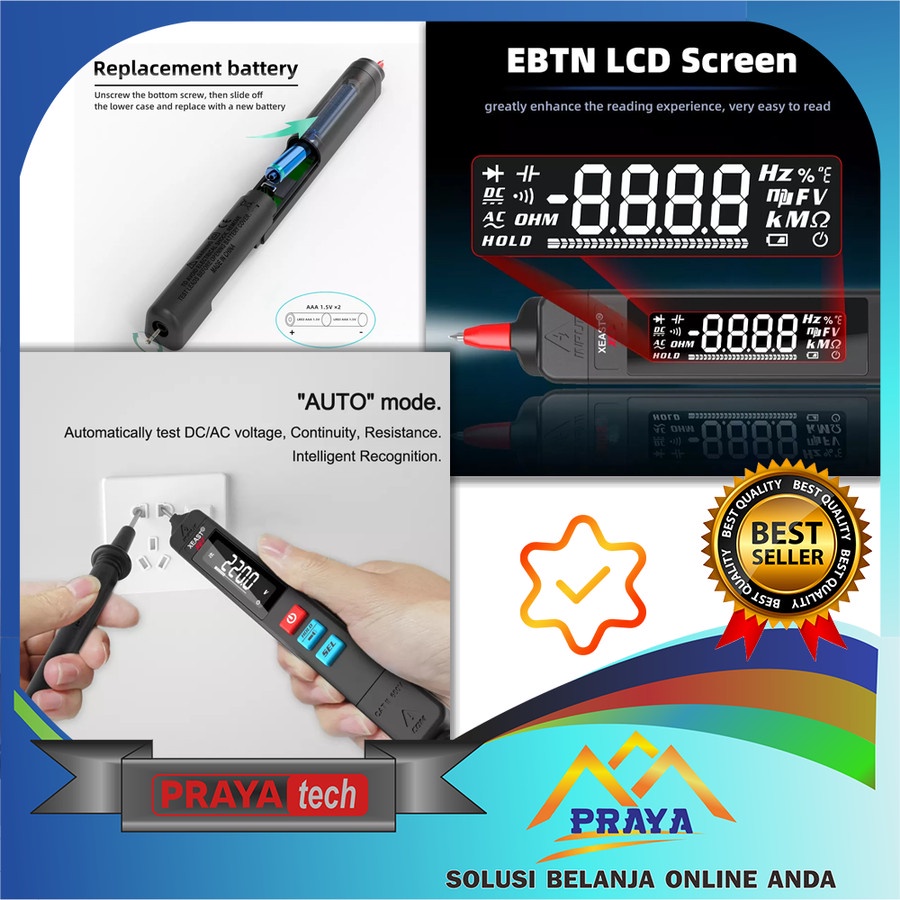

Display Type: EBTN screen.
Screen: 1.9 inch.
DC Voltage: 0.1V-600V ±(0.8%+3); Resolution: 0.001V.
AC Voltage: 0.1V-600V ±(1.2%+5); Resolution: 0.001V.
Resistance: 0.1Ω-10MΩ ±(1.2%+3), 10MΩ-60MΩ ±(2.0%+10); Resolution: 0.1Ω
Capacitance: 1nF-1.00mF ±(3.5%+8), 1mF-60.00mF ±(4.5%+10); Resolution: 0.001nF
Frequency: 10Hz-10MHz ±(2.0%+10) (ACV: 3V-600V); Resolution: 0.1Hz
Duty Cycle: 0.1%-99.9% ±(1.5%+5) ; Resolution: 0.1%
Diode: Auto identify diode if less than 3.0V.

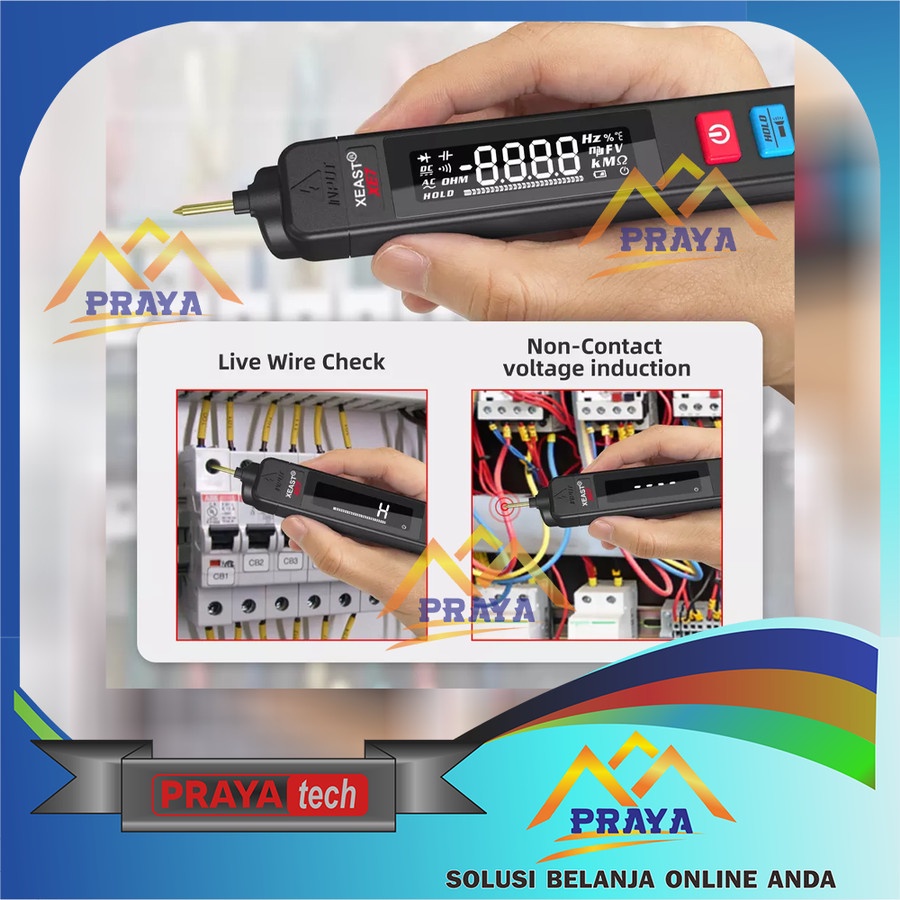

V-Alert(non-contact voltage detection): alarm beep sounds, LCD screen display stripe.
Live Check: alarm beep sounds, LCD screen display stripe.
Continuity: If the resistance is less than 50Ω, the beeper sounds.
Power: 2*1.5V AAA battery
Size: 185*22*22mm.
Weight: 52g.
Package Includes:
1 * XE7 Ultra-portable Multimeter.
1 * Test Lead.
1 * EVA portable cloth bag. 1 * screwdriver.
1 * Alligator clip.
1 * User Manual.
1 * Packing Box.
