Digital Oscilloscope HANTEK DSO5102P DSO-5102P DSO2D10 DSO-2D10 2 channel

Detail Digital Oscilloscope HANTEK DSO5102P DSO-5102P DSO2D10 DSO-2D10 2 channel

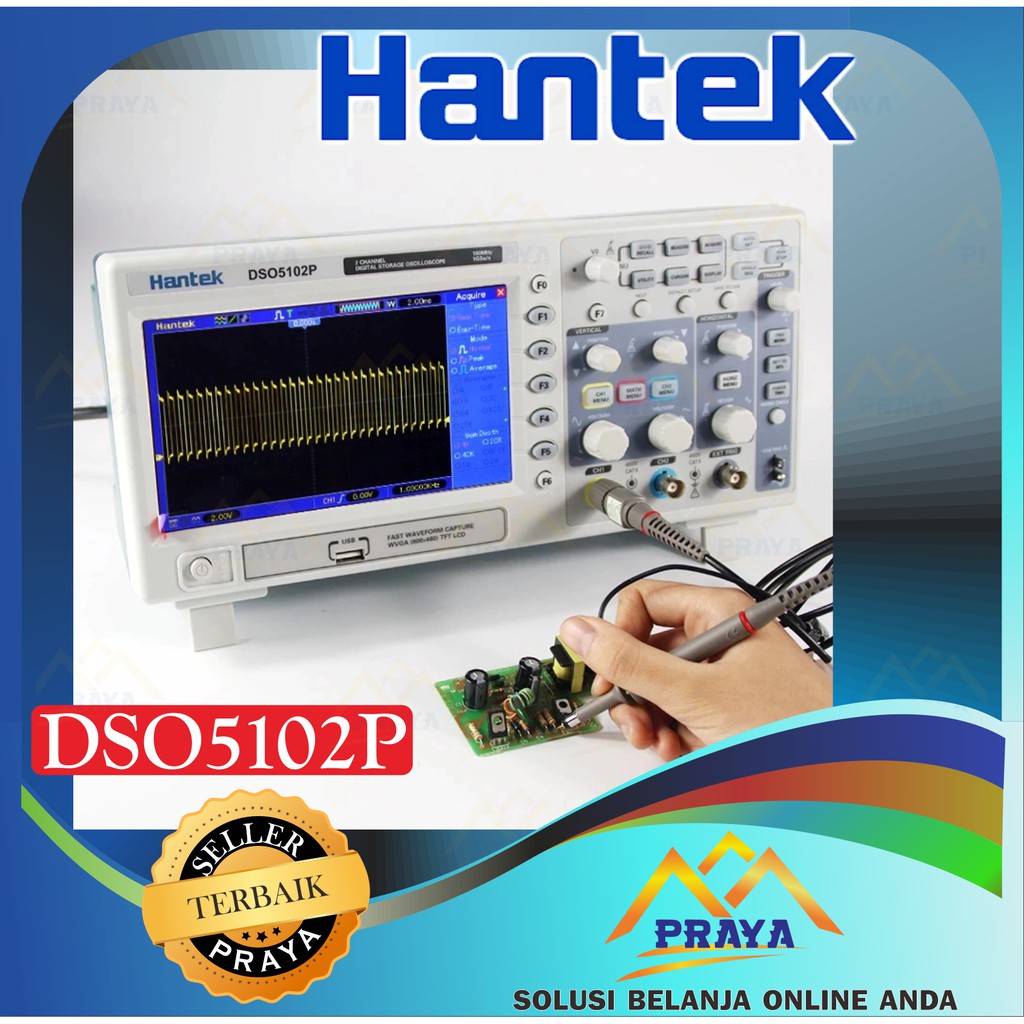

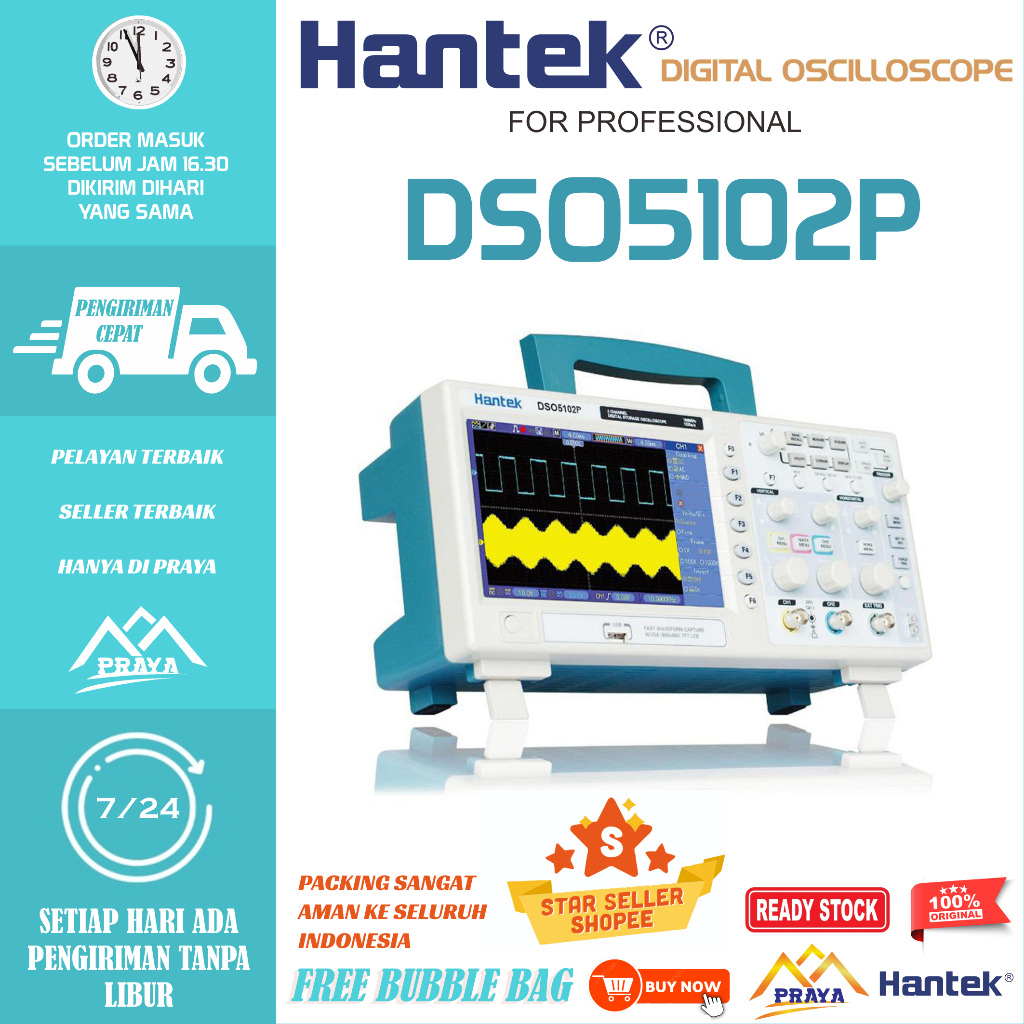

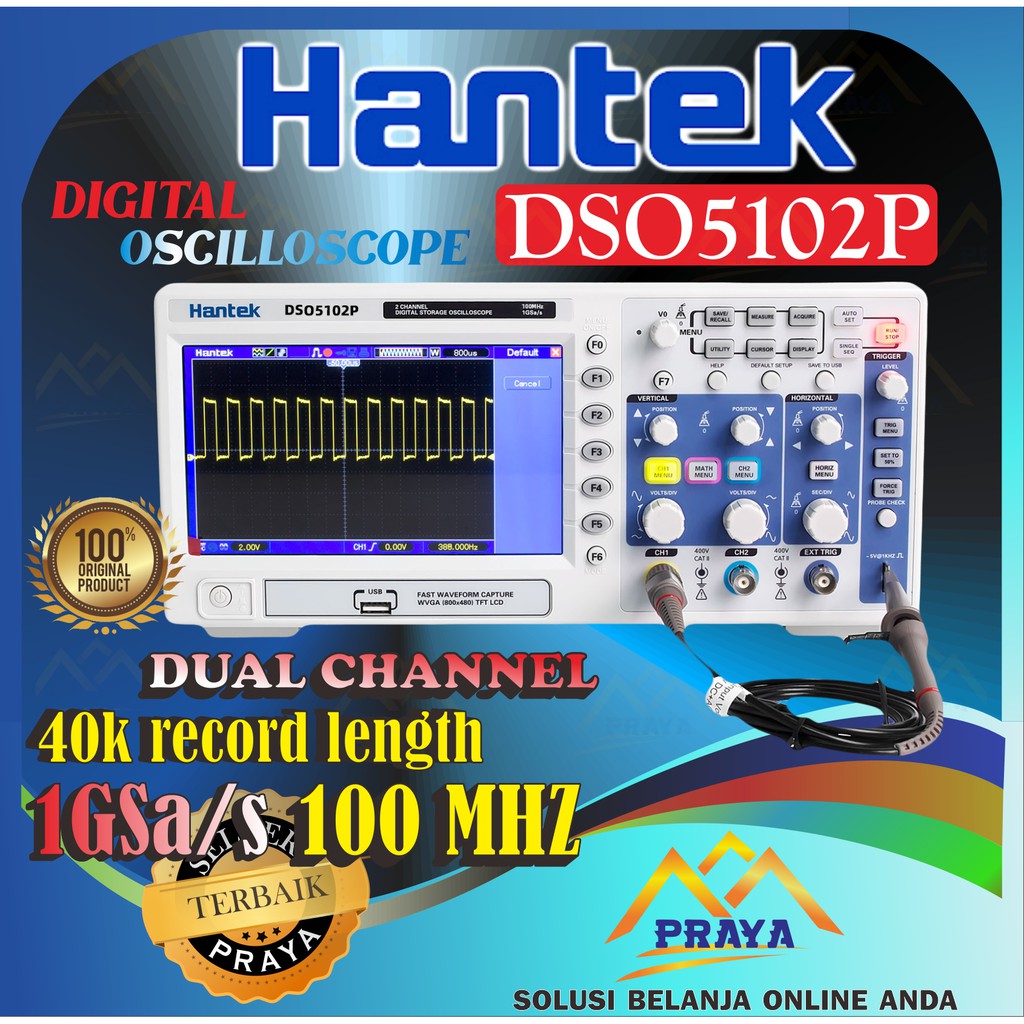

Hantek DSO5102P USB Digital Storage Oscilloscope 2Channels 100MHz 1GSa/s
Features:
100MHz bandwidths
1GSa/s Real Time sample rate
Large (7.0-inch) color display,WVGA(800x480)
Record length up to 40K
Trigger mode: edge/pulse width/line selectable video/slop/overtime etc.
USB host and device connectivity, standard
Multiple automatic measurements
Four math functions, including FFTs standard
Provides software for PC real-time analysis

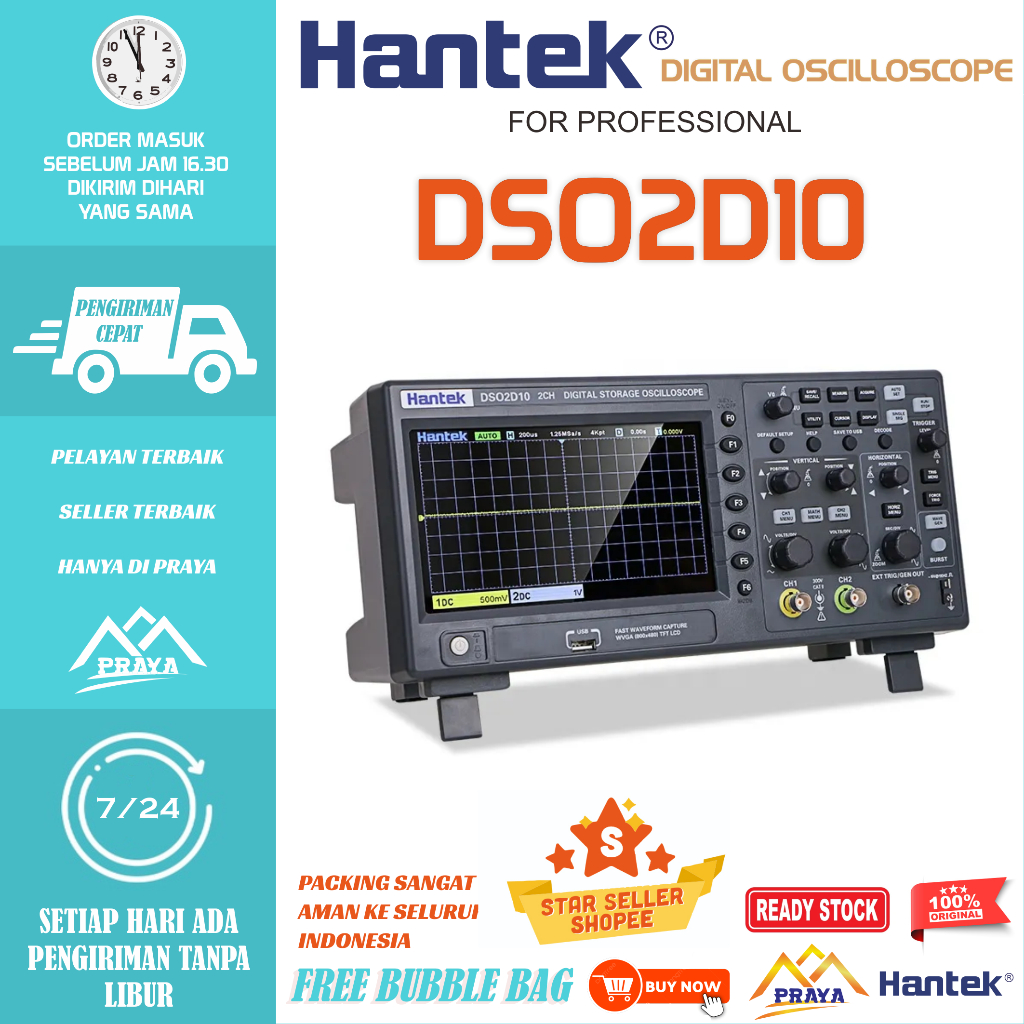

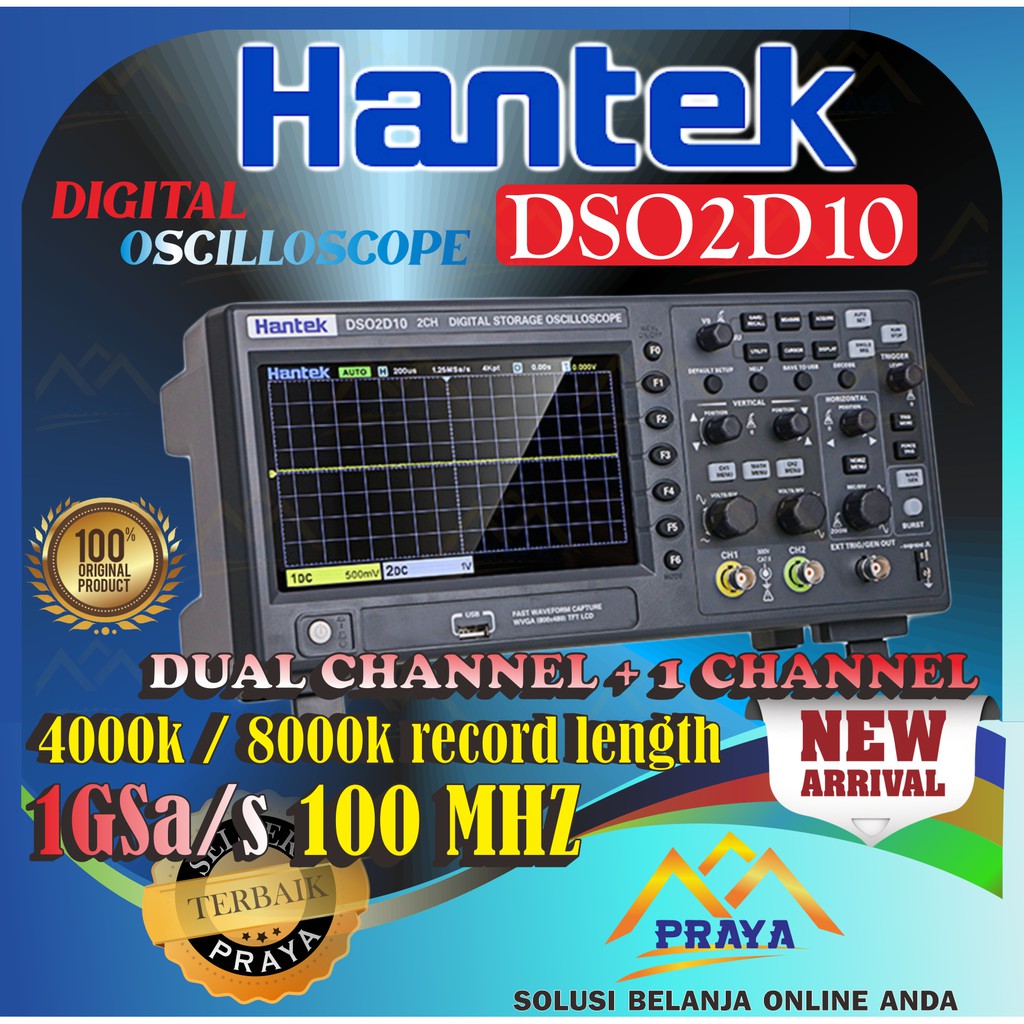

Hantek DSO2D10
Features:

1), 2 channels, each channel has independent knob control;

2), 100MHz analog bandwidth

3), the highest sampling rate is 1 GSa / s;

4), The storage depth is 8Mpts;

5), 2mV / div ~ 10V / div vertical range;

6), Built-in 25MHz signal generator;

7), Vertical resolution: 8bit;

8), Trigger: edge, pulse, video, slope, timeout, window, pattern, interval, runt, UART, LIN, CAN, SPI, IIC;

9), Bus decoding and protocol analysis: RS232 / UART, I2C, SPI, CAN, LIN;

10), Can save settings, waveforms, reference waveforms, CSV, images and other data formats.

11), 3 digit digital voltmeter and 6 digit frequency meter function;

12), Support 32 kinds of automatic measurement and statistical functions, real-time statistics minimum, maximum, standard deviation and other statistical information;

13), Two sets of digital voltmeter functions;

14), Support threshold test to realize free measurement on screen;

15), rich SCPI remote control instructions;

16), Provides several types of peripheral interfaces: Host / USB Device.
