Detail Digital Oscilloscope DSO138 Module Kit Osiloskop Osciloscop Osiloskop 2.4 inc with Casing Akrilik

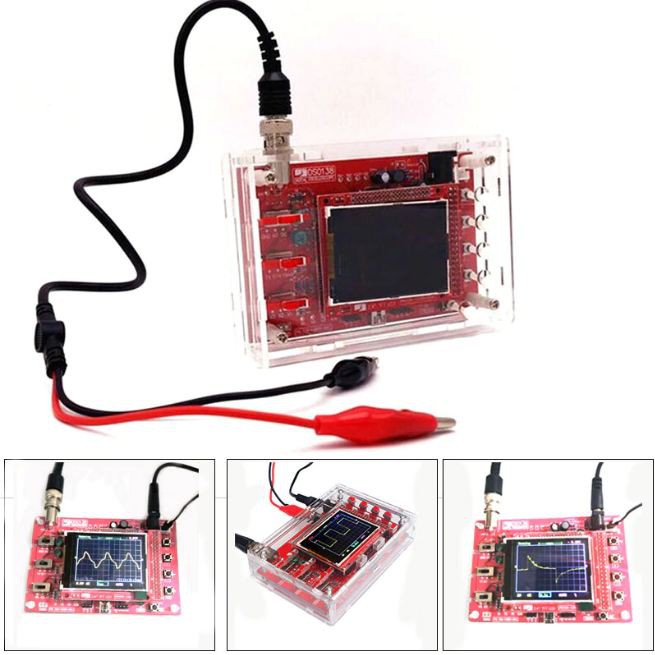

Digital Oscilloscope DSO138 Sudah di Rakit dan Ada Casing Akriliknya
DSO138 Kit
Maximum Real-time Sampling Rate: 1Msps
Accuracy: 12Bit
Sampling Buffer Depth: 1024 bytes
Analog Bandwidth: 0-200KHz
Vertical Sensitivity: 10mV / Div - 5V / Div (1-2-5 progressive manner)
Input Impedance: 1M
Supply voltage: DC 9V
Maximum Input Voltage: 50Vpp (1: 1 probe), 400Vpp (10: 1 probe)
Coupling Modes: DC / AC / GND
The Horizontal Time Base Range: 10s / Div - 50s / Div (1-2-5 progressive manner)
Supply Voltage: DC 9V
PCB Size: 117 * 76mm / 4.6 * 3in
Screen Size: 52 * 40mm / 2 * 1.57in
Package Size: 18 * 12.5 * 3cm / 7.08 * 4.92 * 1.18in
Package Weight: 119g / 4.21oz
Isi Paket:

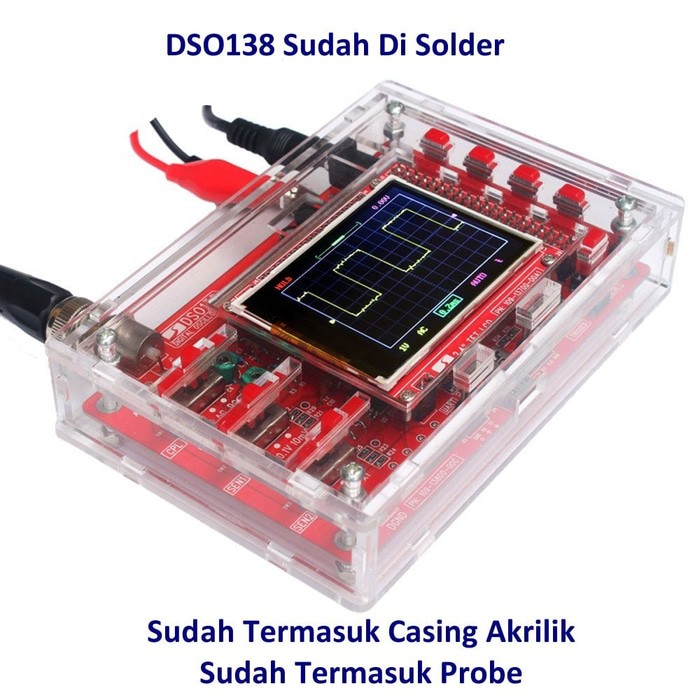

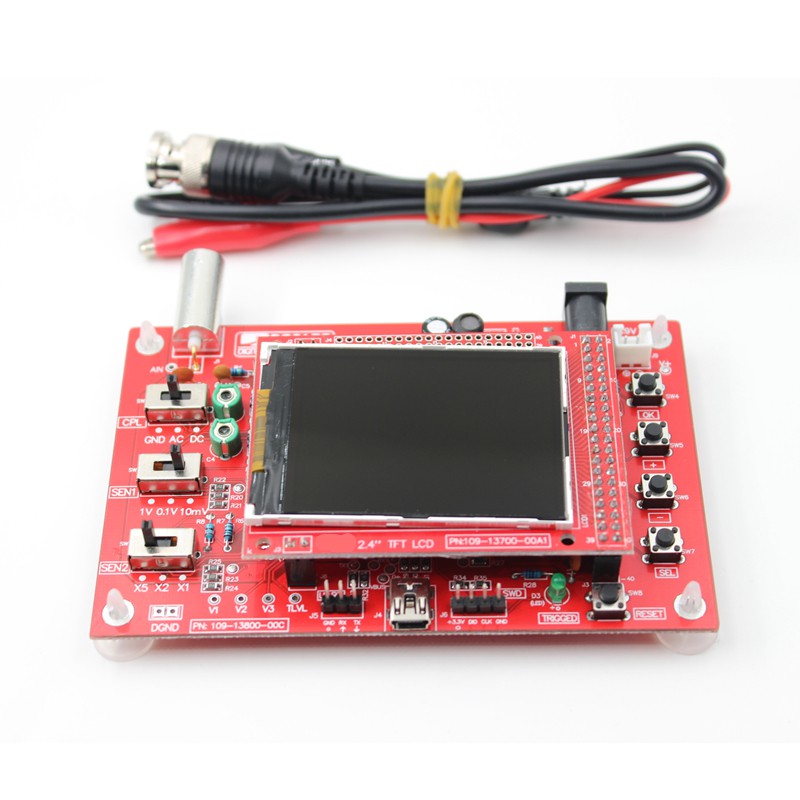

1 x DSO138 Oscilloscope Sudah tersolder tinggal pakai

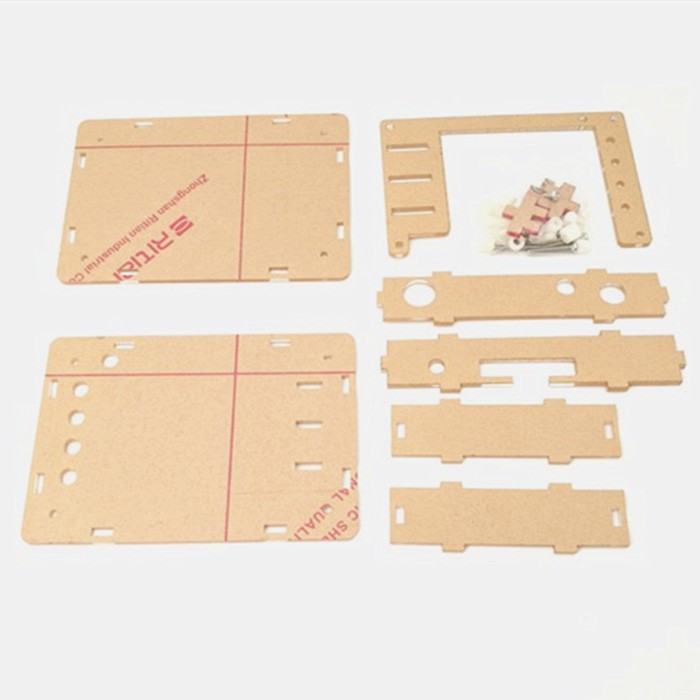

1 x Casing Akrilik belum di rakit
1 x Probe
Gambar produk
