Digital Multimeter Multitester Avometer WINNER DT-9205A

Detail Digital Multimeter Multitester Avometer WINNER DT-9205A

Multitester Digital Winner type DT9205A Original
Ukuran nya : 19cm x 9cm x 3.5cm

DT9205A is a digital Multimeter with high precision and accuracy. It comes with
a large LCD display with a maximum reading of 1,999, easy to read even in the
dark. It has many nice features such as Auto power-off, Data hold, Tilt back
stand, Test leads holder and etc. All our brand new meters have a 1-year limited
warranty unless otherwise specified. Please call for wholesale and warranty
information.

Specifications:

DC Voltage: 0.5%, 1000V0.8%
AC Voltage: 700V1.2%
DC Current: 20A 1.2%, 20mA0.8%, 200mA1.2%,10A2%
AC Current: 200mA1.8%,10A3.0%
Resistance: 20M1.0%,200M5%
Capacitance: 20n/200n/2 2.5%, 200F5.0%
Frequency: 2Khz -20Khz, Resolution: 1 Hz- 10Hz,(1.5%+5d)
Temperature: -20C -400C /400C- 1000C
Continuity checking with buzzer
Diode check: Test current 0.8mA, Test voltage 3V
Live wire identification
Remote control test (Infrared type only)

hFE: 1 - 1000
Power source: 6F22(9V) x 1

ISI PAKET :
- Multitester Winner DT9205A
- Kabel multitester ( baterai sudah ada di dalamnya ) MS
- Manual Book

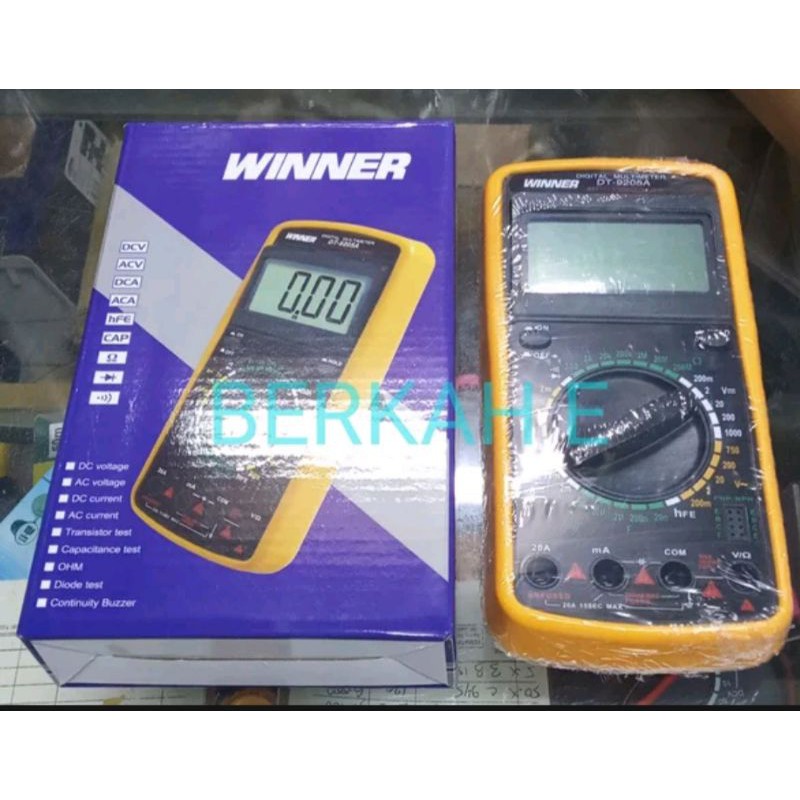

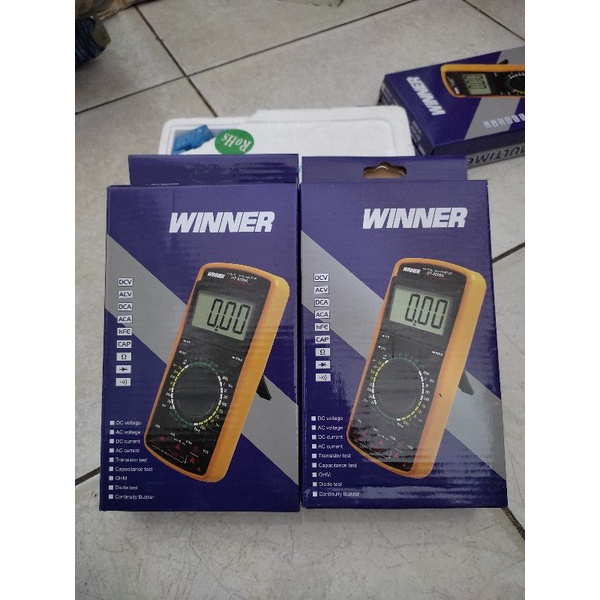

Gambar produk
