Detail Digital Multi Meter New Volt Amp HZ VAF39A 96 X96mm EWIG.
Video perkenalan produk Digital Multi Meter New Volt Amp HZ VAF39A 96 X96mm EWIG.. Sumber: Shopee.

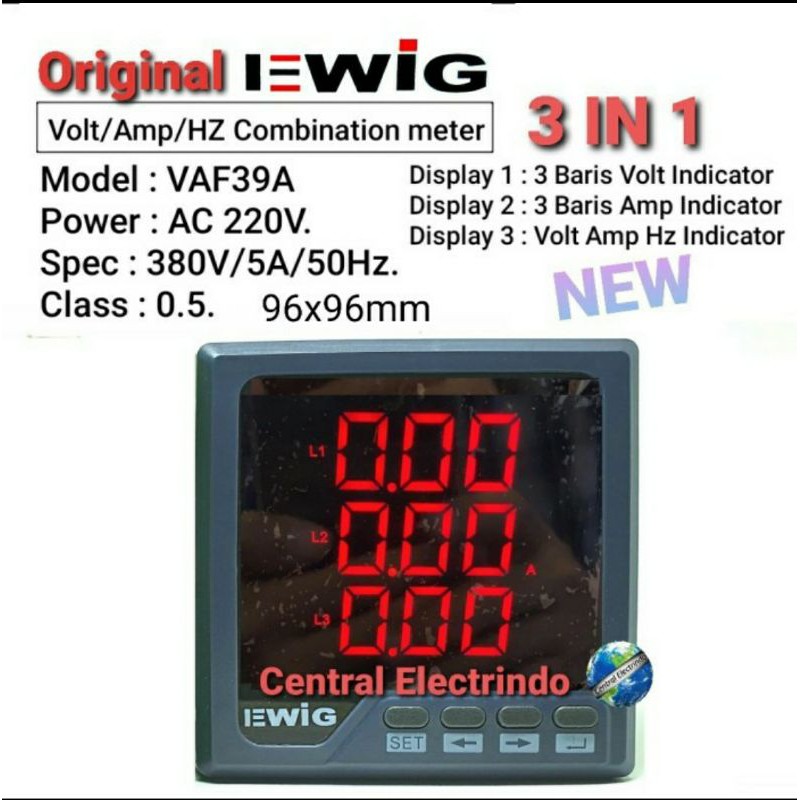

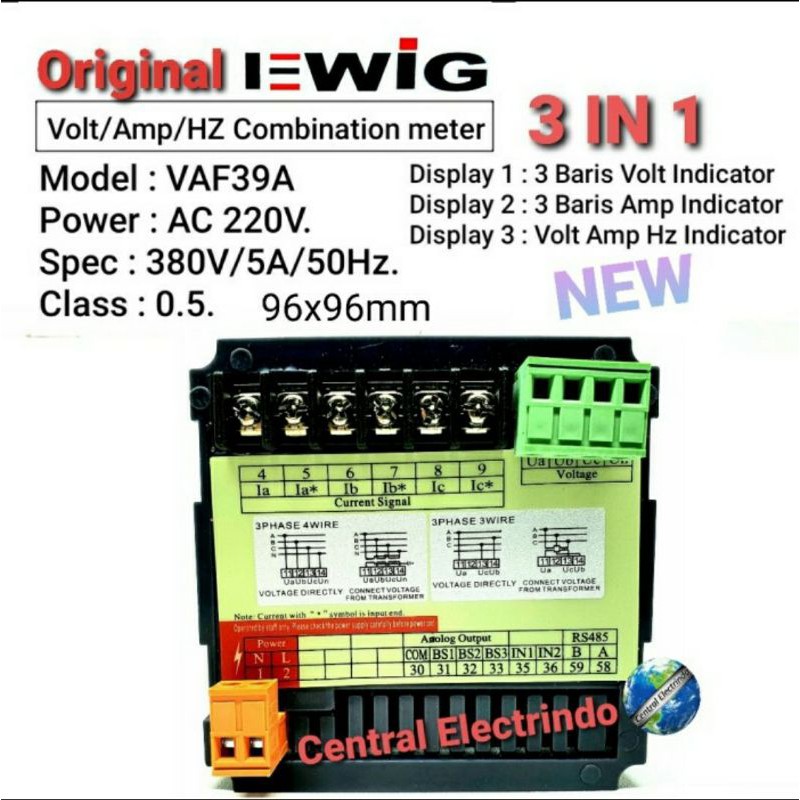

Digital Multi Meter 3 Model.
Model : VAF39A.
Power: AC 220V.
Spec : 380V/5A/50Hz.
Class : 0 5.
Spesifikasi Produk :
Size : 96x96x78mm.
* Mounting :
1. Size : 91x91mm.
2. Mode : Flush Mounted.
* Display :
1. Type : Backlit LED.
2. Resolution : 3 Lines.
* Type of Measure :
1. Voltage Primary & Secondary CT.
2. Current Primary & Secondary PT.
3. Frequency.
4. Run Hour.
5.RPM.
* Rated Input Voltage :
- 600VAC.
- 11~300 VAC (L-N).
- 19~519 VAC (L-L).
* Rated Input Current :
- 5A (Standard).
- Min. 50 mA. Max .6A.
* Frequency Range : 50/60Hz.
* Primary CT : 5A~1000A
(Programable to any value).
* Secondary CT : 5A (fixed).
* Primary PT : 100V~500kV.
(Programable to any value).
* Secondary PT.
(Programable to any Value).
* Measure Accuraty :
- 0.5% Voltage.
- 1.0% Current.
- 1.0% Frequency.
- 1.0% Run Hour.
QUALITY YOU CAN TRUST.
DI CENTRAL ELECTRINDO.
