DIGITAL LCD MULTIMETER XL-830 Multi Tester Ukur Voltase DC AC Resistance Dioda

Detail DIGITAL LCD MULTIMETER XL-830 Multi Tester Ukur Voltase DC AC Resistance Dioda

JUAL : DIGITAL MULTIMETER XL-830

Digital multitester adalah Tester untuk Voltase AC/DC dengan layar Digital.

Low cost, pocket sized

Ideal for hobby & DIY users

Features :

Auto polarity display

Small and compact design

Overload protection on all ranges

Sampling 2~3 times readings per second.

Diode assembly test / Transistor P-N junction test/Transistor hFE test.

Low battery voltage indication.

3 1/2digits 0.5 " HIGH LCD with a maximum reading of 1999

Specifications:

Measuring range:

Max AC Current:10A

( DCA:0-200u-2m-20m1.0%-200mA1.2%-10A2.0%Fused. )

Max AC Voltage range:1000V

( ACV:0-200V-600V1.2% )

Max DC Voltage range:750V

( 0-200m0.25%-2-20-200-750V0.5% )

Resistance Measurement : 200 Ohm-2000K Ohm range

( R:0-200-2k-20k-200k0.8%-2Mohm1.0% )

hEF measurement

Power : dc 9V 6F22 battery

Size of Multimeter: 138mm x 69mm x 31 mm

Package of Contents :

1 x DIGITAL MULTIMETER xl-830

1 X Set of test leads

1 x Instruction Manual

Berat sebelum di bungkus menjadi paket : 330 gram

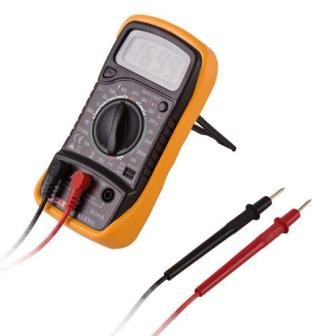

Gambar produk
