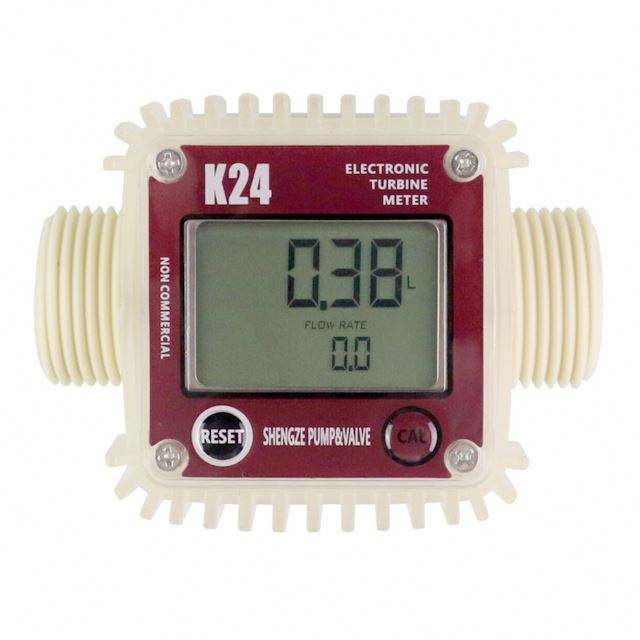

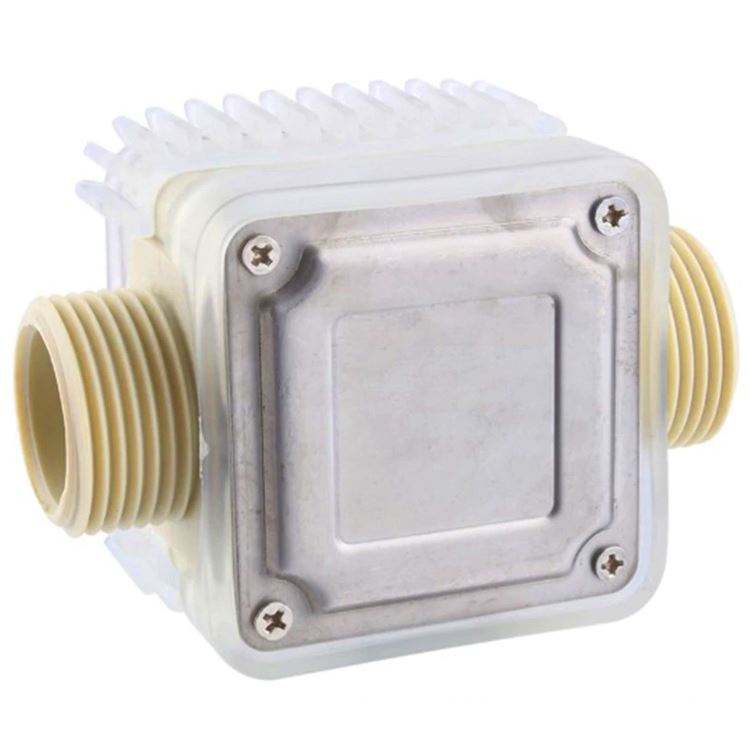

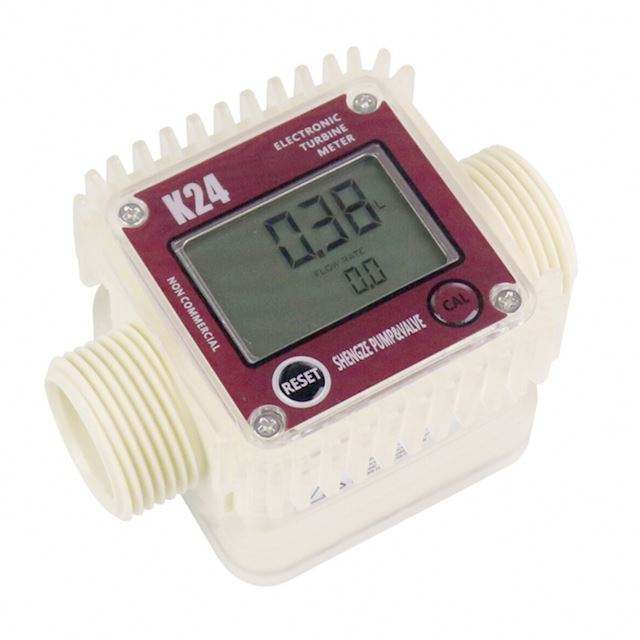

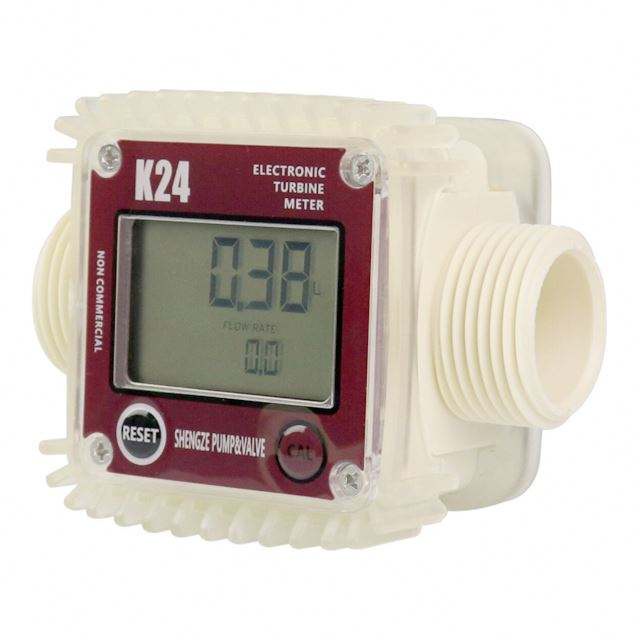

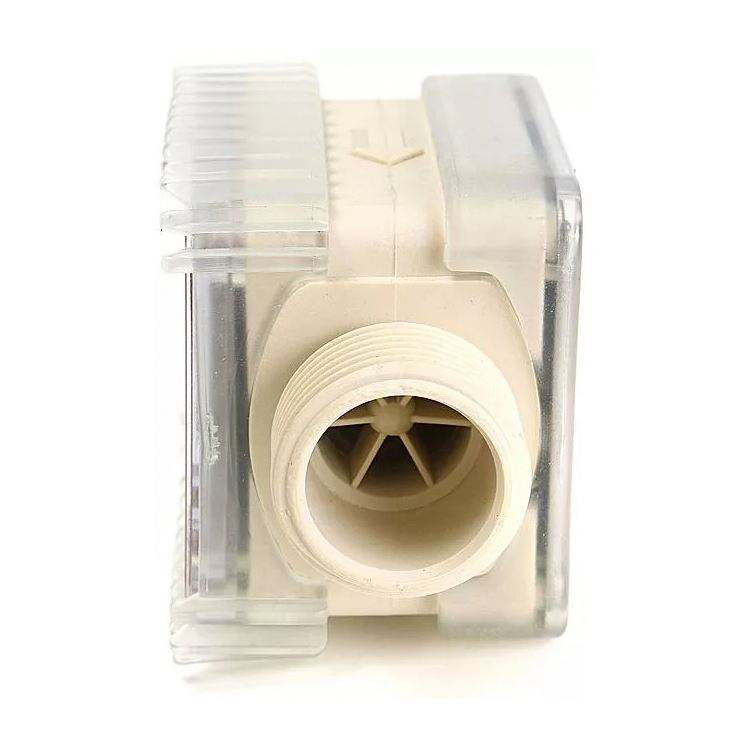

Digital LCD Flow Meter K-24 Turbine Fuel 1 inch for Chemical Liquid K24

Detail Digital LCD Flow Meter K-24 Turbine Fuel 1 inch for Chemical Liquid K24

-READY STOK-

This chemical flow meter control panel adopts modular design.
It is fully functional, convenient to operate and has simple structure.
It can be used to meter methanol, kerosene, diesel, fuel, urea water.
Widely used in petroleum, chemical industry, medicine, transportation, food industry and business field.

Specifications:
Model: K24
Media: methanol diesel fuel kerosene chemical liquid urea water
Importers: 1 inch internal thread
Length: 103MM
Measurement accuracy: 1%
Repeatability: 0.5%
Maximum working pressure: 20BAR

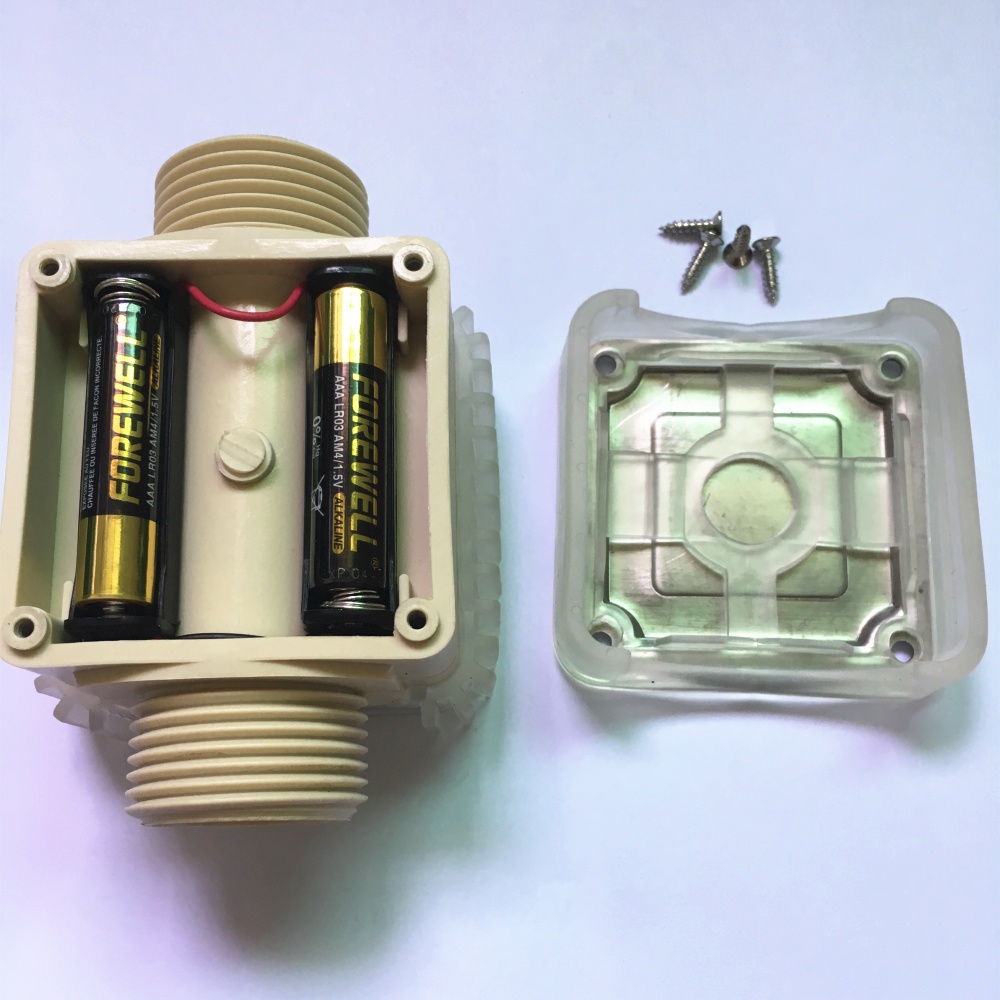

Operating voltage: 2.3-3.3V
Standby time: 2 years
Flow range: 10-120L / MIN
Single count: 0.00-999.9
The total cumulative number: 0.00-999999.9
Unit: L / L, gal / GAL, pint / PTS, quart / QTS
Single measurement cleared: RESET

Setting units of measurement:
In the standby mode, or raise the amount of current display state
Press CAL + RESET button for 5 seconds
Enter unit conversion settings, press the RESET button
Followed by LTR GAL PT QT LTR choose the unit of measurement
While the cumulative filling volume displayed in the current unit of measure conversion after
Press the MENU key for 3 seconds to exit the unit conversion settings.

Package Includes:
1 x Turbine Flow Meter
