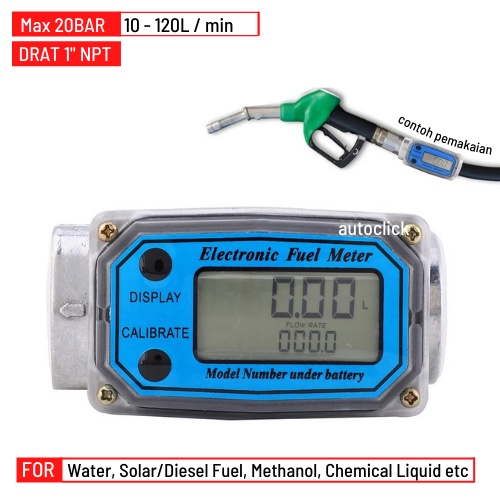

Digital LCD Display Electronic Fuel Flow Meter 1inch for Chemical

Detail Digital LCD Display Electronic Fuel Flow Meter 1inch for Chemical

Overview:
The control panel of this product is designed modularly, featured by high accuracy, compact size and stable performance. It's widely used in numerous fields such as oil industry, chemicals, medicine, food industry, transportation and commercials.

Features:
Compact structure, easy to install.
High-definition displays show, intuitive clear reading.
It can count instantaneous and cumulative flow.
Can be widely used to measure diesel, kerosene, gasoline, urea, etc.

Parameter:
Working voltage: 2.3 - 3.3V
Connection caliber: 1" NPT
Maximum working pressure: 20bar
Unit: L, gal, pt, qt
Single count: 0.00 - 9999.9
Working temperature: -10℃ - 60℃ (-14℉ - 140℉)

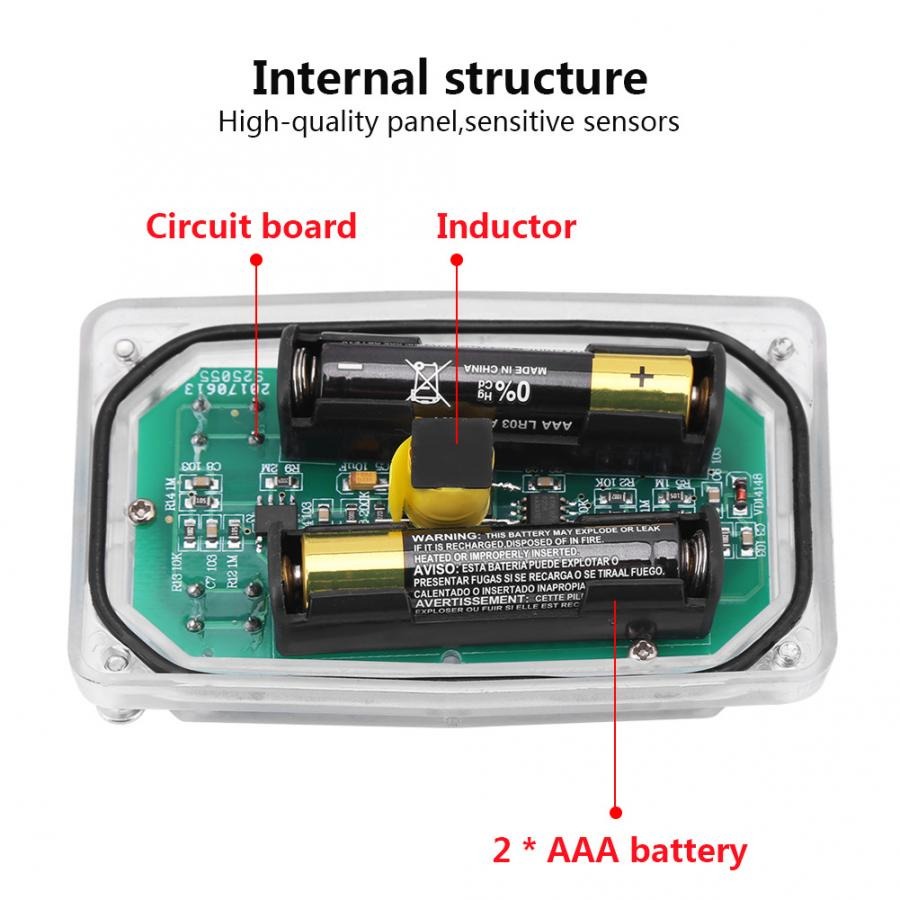

Battery type: 2 x AAA battery
Measure accuracy: ± 1%
Flow range: 10 - 120L / min
Repeatability: ± 0.5%
Total cumulative count: 0 - 99999
Applicable liquid: diesel, urea, kerosene, gasoline

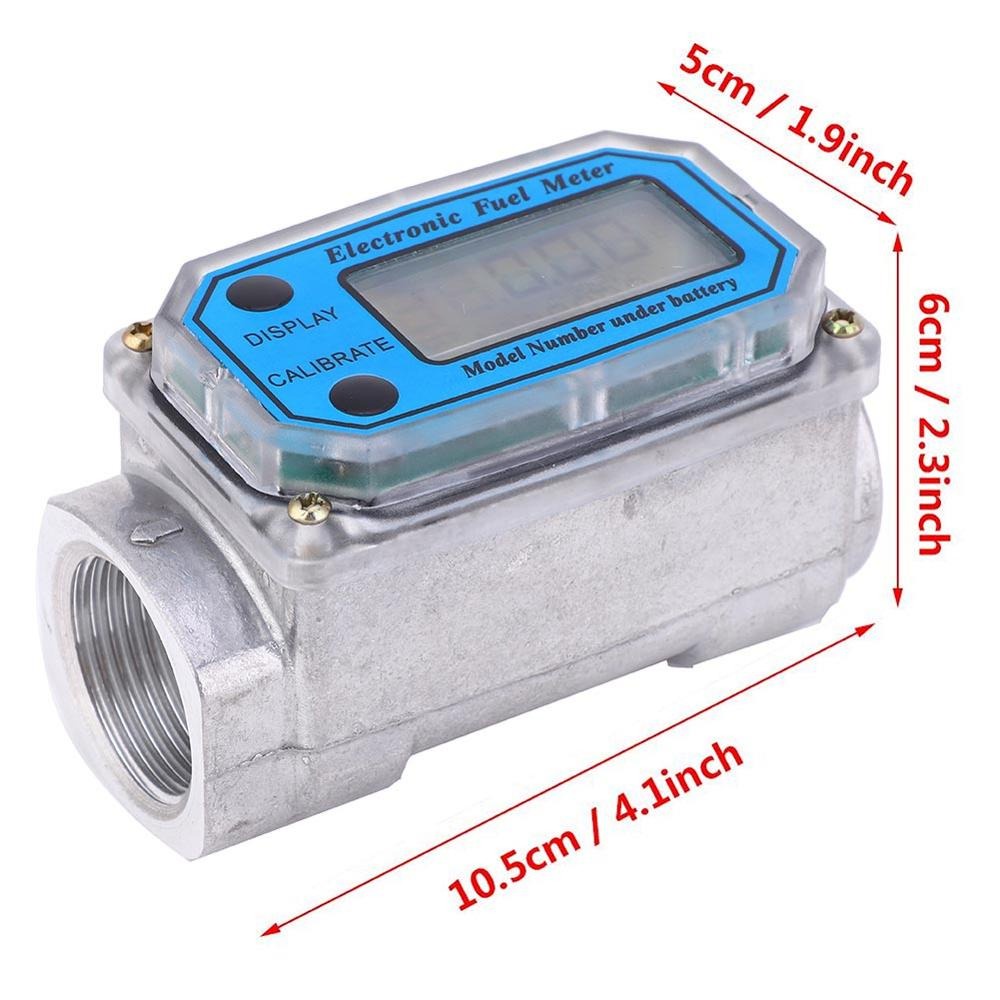

Package Size(L x W x H): 11.00 x 7.50 x 6.00 cm / 4.33 x 2.95 x 2.36 inches

Package Contents:
1 x Turbine Flow Meter
