Digital environment module APDS-9930 GY-9930LLC RGB & Gesture sensor

Detail Digital environment module APDS-9930 GY-9930LLC RGB & Gesture sensor

Module Model: CJMCU-9930

CJMCU- proximity and contactless gesture detection RGB and Gesture Sensor APDS-9930

APDS-9930 provides an IC-compatible interface in a single 8-pin package ambient light sensor (ALS, Ambient Light Sensor) and proximity sensor with infrared LED's, where ambient light sensor is approximated using a dual LED illumination 0.01 lux under low lumens human visual response performance, high sensitivity can be provided so that the operation of the device in the dark glass. The proximity sensor can be adjusted through the full 100 mm object detection, eliminating the terminal equipment and sub-assembly factory calibration requirements. From bright sunlight to dark rooms, proximity detection feature can work well. Module was added to provide micro-optic lenses infrared energy efficient transmission and reception, can reduce the overall power consumption. In addition, the internal state machine allows the device to enter a low-power mode, bringing the average power consumption low.

Features [-]

Integrated ALS, an infrared LED and an optical proximity detector module
Ambient brightness sensing (ALS, Ambient Light Sensing)? Approximate the human visual response
With programmable upper and lower threshold interrupt function
Up to 16-bit resolution
High sensitivity operation after dark glass
0.01lux low lumen performance

Proximity detection? Fully calibrated to 100 mm detection
Integrated infrared LED and synchronous LED Driver
Exempt proximity sensor factory calibration

Programmable timer wait wait state power -? 90A typ.
Programmable from 2.7 ms to more than 8 seconds

IC compatible interface? Up 400kHz (IC Fast-mode)
Dedicated interrupt pin

Sleep mode power - 2.2A typ
Small package 3.94 (L) x 2.36 (width) x 1.35 (H) mm

Application

dimmable backlight phone

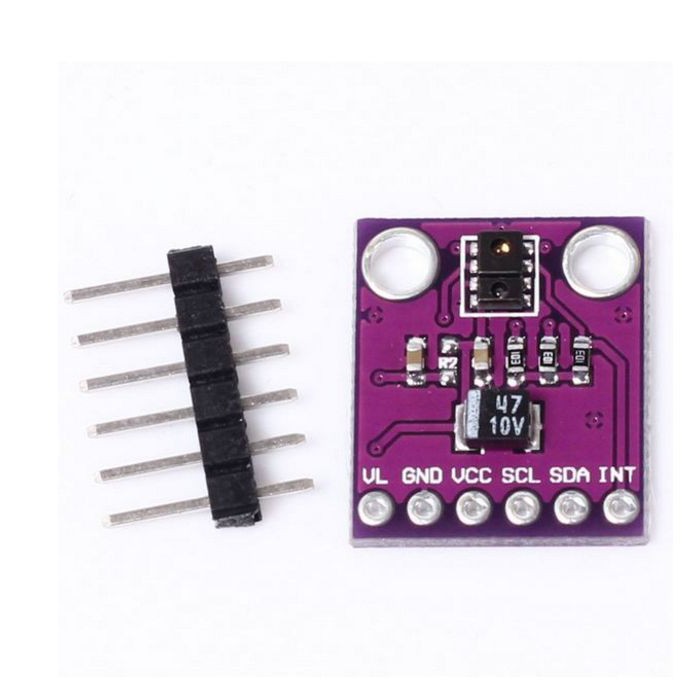

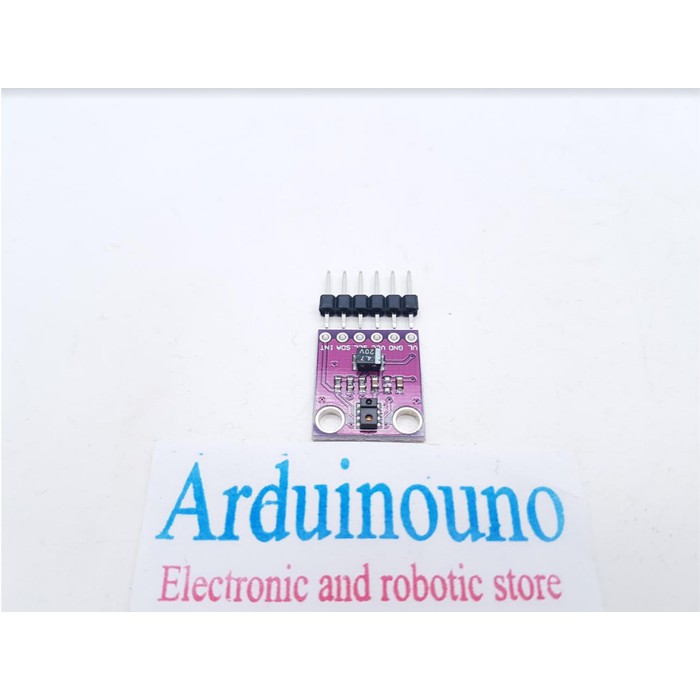

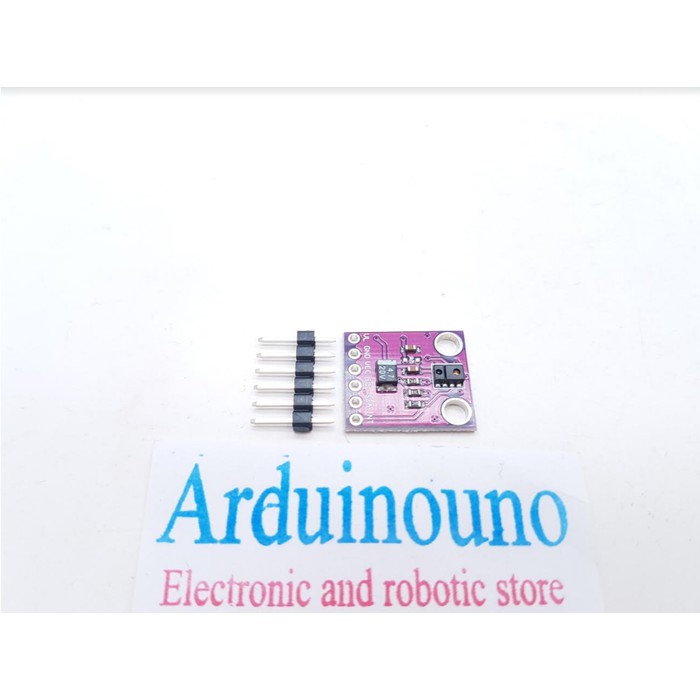

Gambar produk
