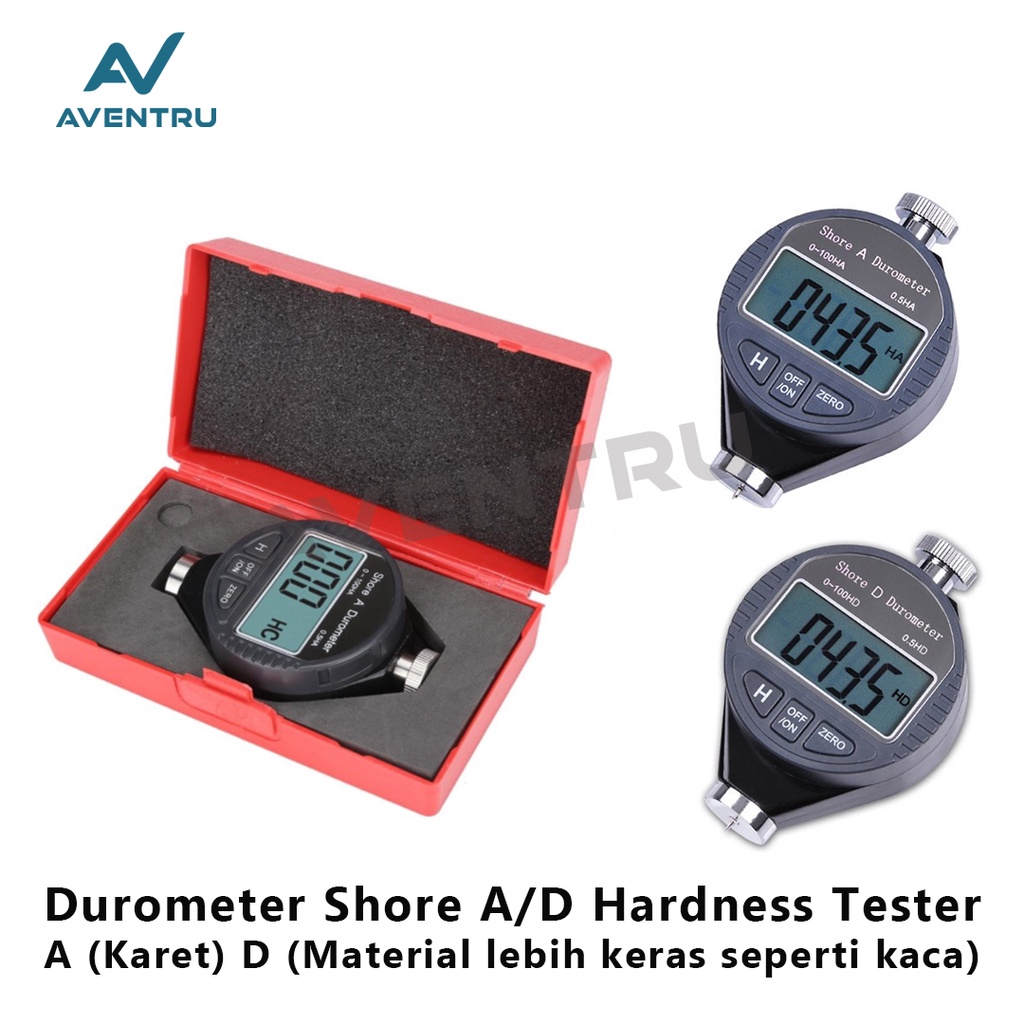

Detail Digital Durometer Shore A D Hardness Tester Alat Ukur Kekerasan Karet
Durometer Shore A - Hardness Tester - Ukur Kekerasan Material Karet Kulit Wax Shore D untuk mengukur material yang lebih keras seperti ebonite, resin keras, akrilik, kaca, piringan cetak dan fiber
Durometer Hardness Test A Durometer is an instrument that is commonly used for measuring the indentation hardness of rubbers/elastomers and soft plastics such as polyolefin, fluoropolymer, and vinyl. A Durometer simply uses a calibrated spring to apply a specific pressure to an indenter foot. The indenter foot can be either cone or sphere shaped. An indicating device measures the depth of indentation. Durometers are available in a variety of models and the most popular testers are the Model A used for measuring softer materials and the Model D for harder materials
Shore A Features:
With clear LCD display for easy to read Compact pocket size to take along Wide measuring range with high resolution 35 angle with 0.5HA resolution Easy to store with plastic box Button battery is included Perfect for low hardness things, such as rubber, leather & wax
Main Functions:

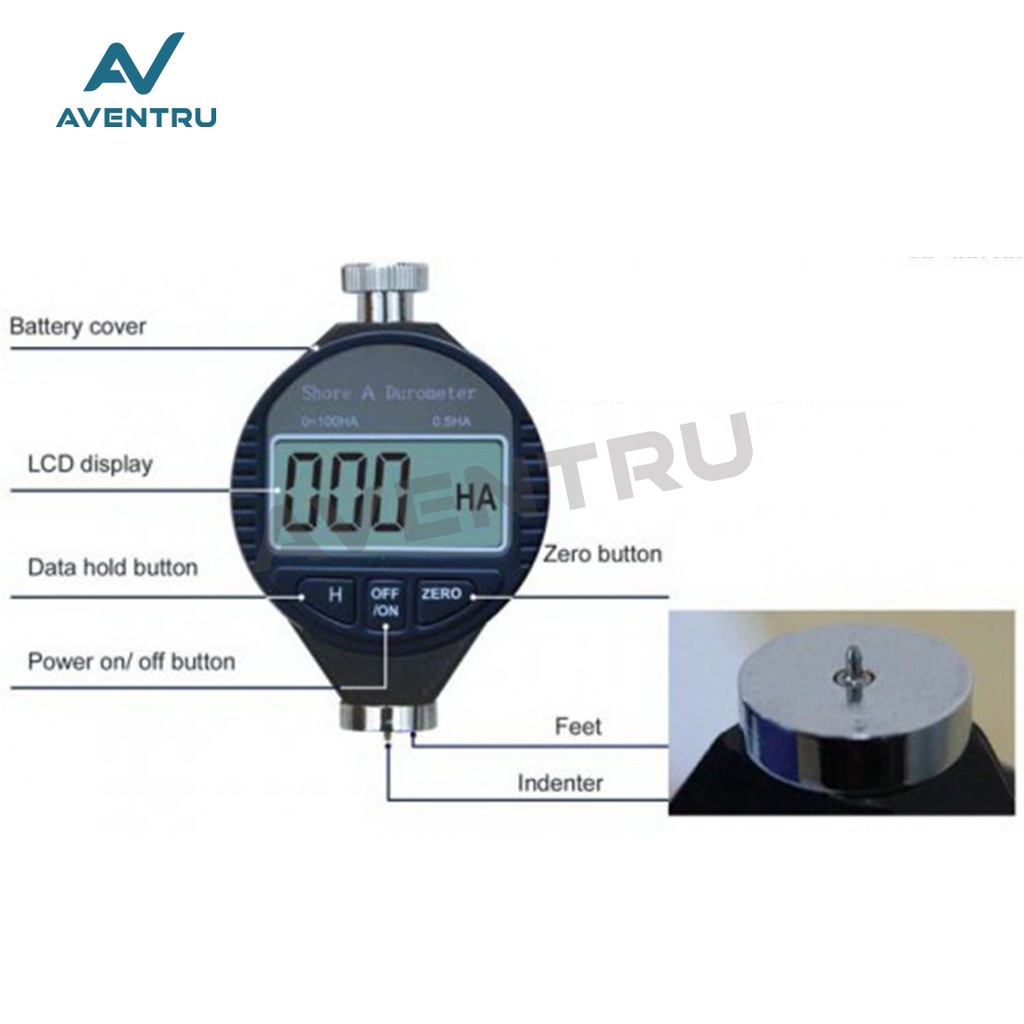

On/off switch: power on and off H key: hold the reading Zero function: reset the readouts
Specification:
Range: 0-100HA Resolution: 0.5HA Accuracy: no more than 1% Power:1.5 cell Working temperature: 0- 40 Flat cone point: 0.79mm diameter Pressure needle top cone angle: 35 Total measure force: 8.1N Durometer dimension: 3 1/4"L x 2 1/4"W x 1"H
Package Content:
1x Digital shore A hardness durometer 1x Plastic box
-------------- Shore D Features 5pcs
Spesifikasi :
- Measure range : 0 ~ 100 HD - Resolution : 0.1 HD - Accuracy : - Needle stroke : 2.5 mm - Needlepoint size : SR 0.1 mm - Endpressure of PressureHead : 0 N - 44.5 N - Dimension : 85 x 57 x 26 mm - Weight : 200 g
Paket Sudah Termasuk :
- 1 x Digital Durometer Shore Type D - User Manual - Box Packaging
Gambar produk
