DIGITAL COLOR CAMERA SAMSUNG SAMSUNG SCP-3120VHP KAMERA SAMSUNG 360 DERAJAT

Detail DIGITAL COLOR CAMERA SAMSUNG SAMSUNG SCP-3120VHP KAMERA SAMSUNG 360 DERAJAT

Make Hanwha Techwin
Manufacturer Hanwha Vision Europe (formerly Hanwha Techwin Europe)
Previously known as Samsung
Category CCTV>Dome cameras
Model code SCP-3120VHP
Chip Inch Size 1/4 inch
Colour Type Colour / Monochrome
Resolution TVL 600
Dome Type PTZ
Sensitivity lux 0.03 @ F1.67 lux
Pan Speed o/ sec 650 o/ sec pan speed
Indoor/Outdoor Outdoor
Tilt Speed o/ sec 650 o/ sec tilt speed
Mount Type Pendant mount
Electrical Specifications Voltage: 24 V AC
Power Consumption: 45 W
Focal length 3.6 ~ 44.3
Rotation Angleso 360 pan, -5 ~ +185
Presets 255
Back Light Compensation Yes
Auto Gain Control Yes
White Balance Yes
Electronic Shutter range 1/60 ~ 1/10,000
S/ N (Signal/ Noise) Ratio dB 52
Synchronisation Internal / Line-lock
Signal Mode PAL / NTSC
Video Output 1 Vpp, 75 Ohms
Zoom Ratio 12x (Optical), 16x (Digital)
Network Properties Interface: RS-485, Coaxial control
Control: PTZ
Physical Specifications Dimensions mm: 200 x 203
Weight g: 2,400
Environmental Specifications Operating Temp oC: -50 ~ +50
Operating Humidity %: 0 ~ 90
Additional info The SCP-3120/3120V/3120VH PTZ dome cameras feature 12x optical zoom, clear color images at 600TV lines resolution. With high-speed pan and tilt operations at 650?per second, these cameras capture broad areas quickly. Especially, with SCP-3120V/3120VH's vandal-resistant body, these offer unparalleled durability and exceptional anti-shock protection. In addition, these models include a WDR, VPS, Coaxial control and intelligent video analytics function for vivid images and user convenience.

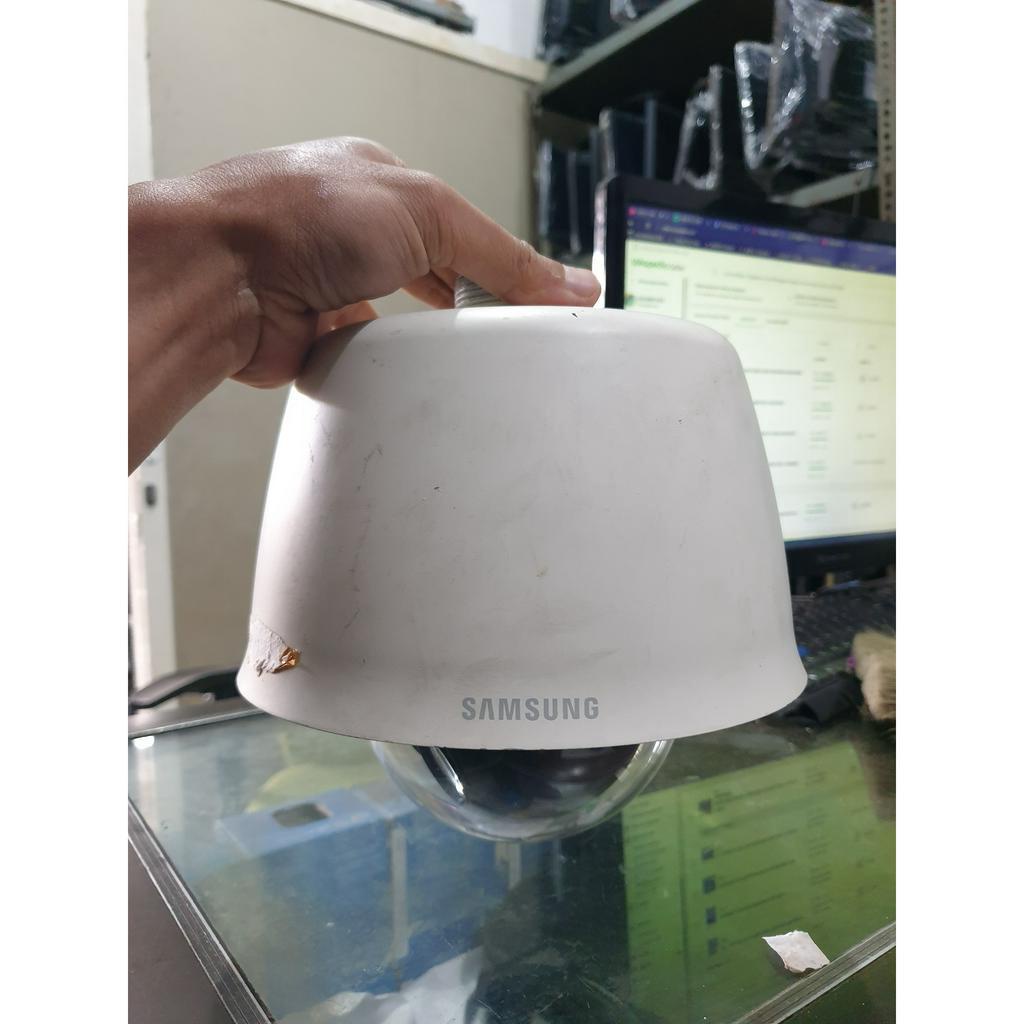

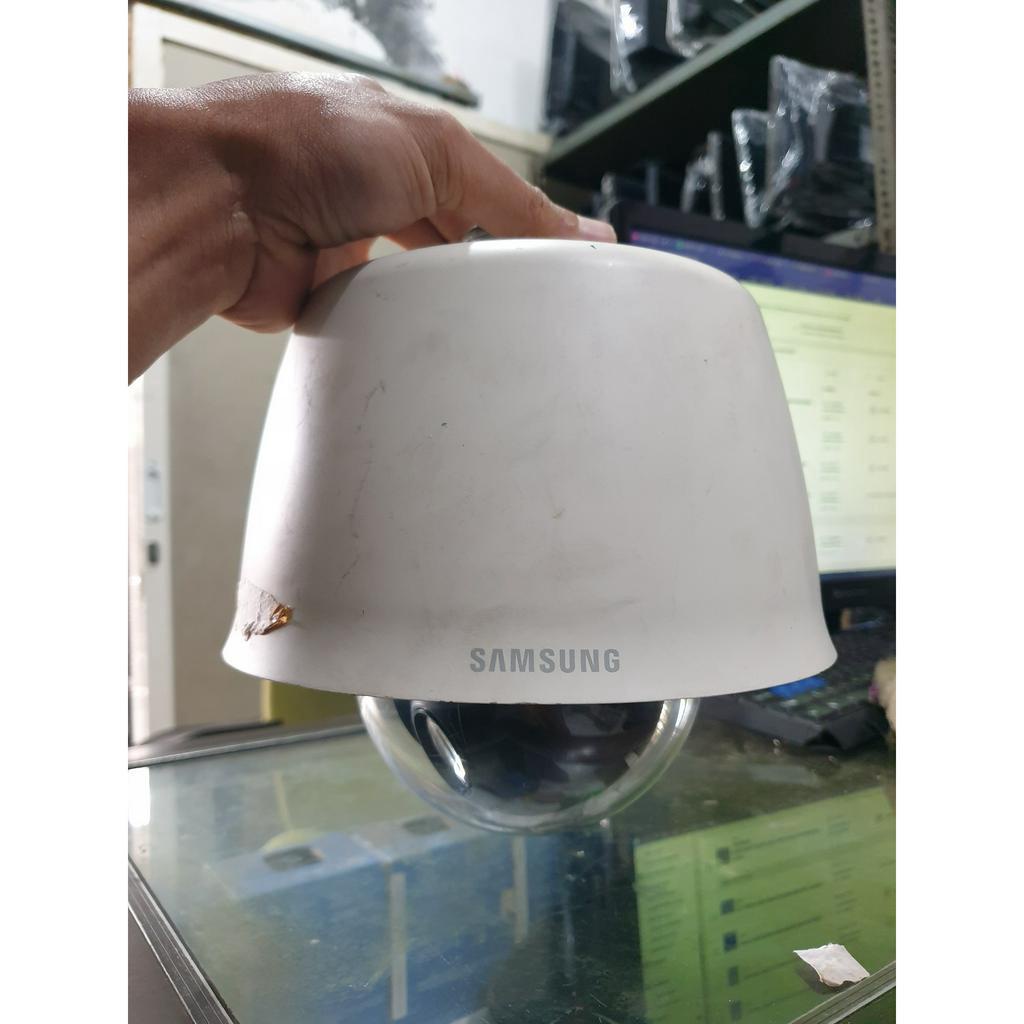

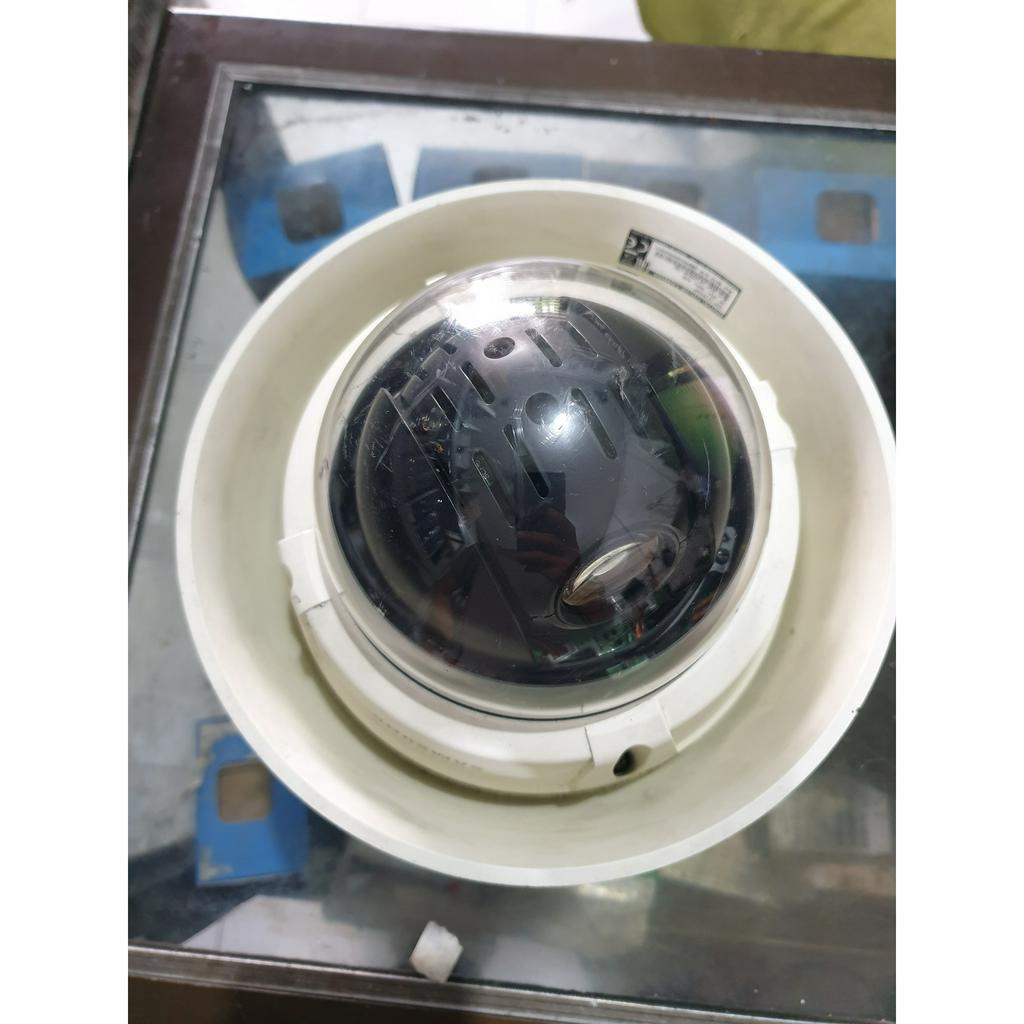

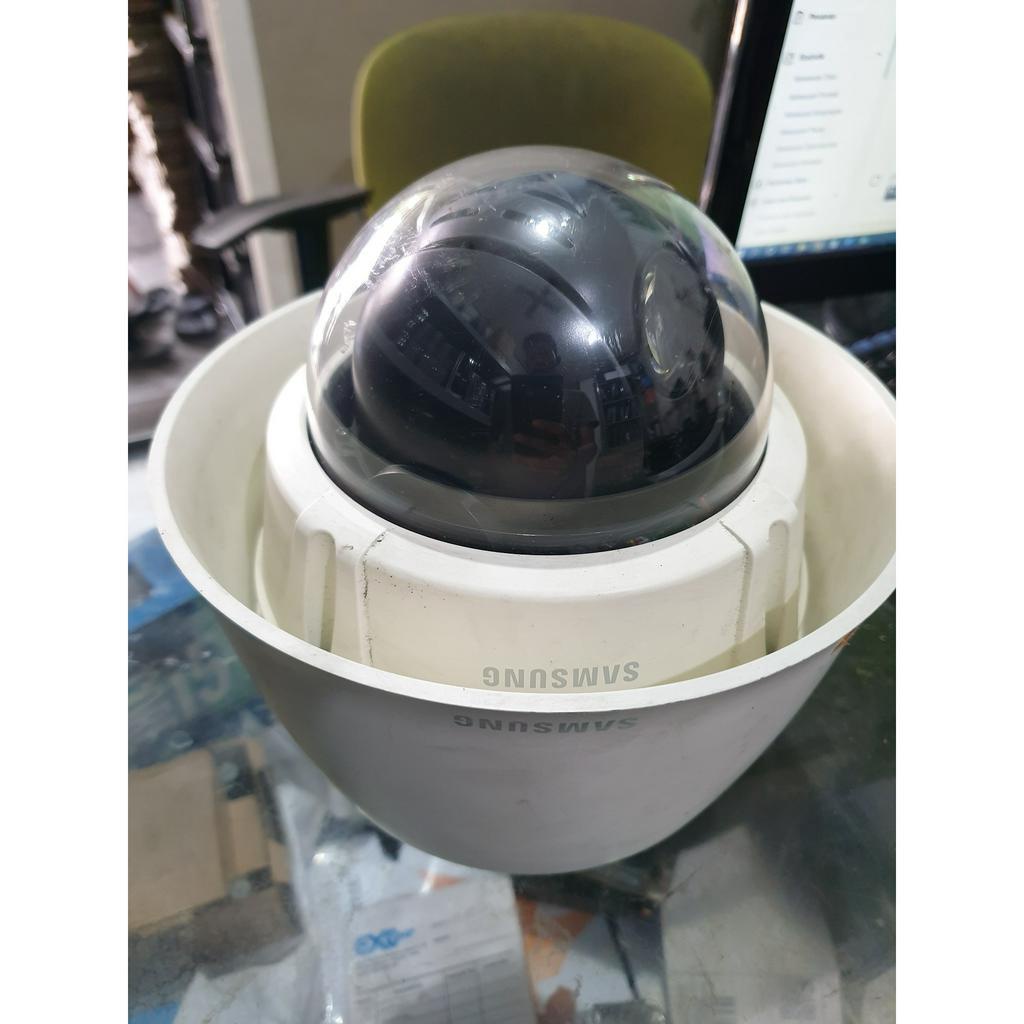

Gambar produk
