Digital Alliance Motherboard H61 NVme Soket LGA 1155

Detail Digital Alliance Motherboard H61 NVme Soket LGA 1155

Motherboard Digital Alliance DA H61 NVme Soket LGA 1155
Processor Supports Intel® Socket 1155 Core™ i7/ i5/ i3 processors
Supports Intel next generation 32nm multi-core processors
Chipset Intel® H61
Memory Support Support Dual channel DDR3 1333/1066 SDRAM (8GB Max)
2 x DDR3 DIMMs (240 pin/ 1.5V)
LAN Spport Realtek® 10/100 Mbps
Audio Chip integrated by Realtek® ALC662
Slot 1 x PCI Express x16 Slot
1 x PCI Express x1 Slot
1X SLOT M.2 NVME
Storage 4 x SATA port
1 x 24-pin ATX Power Connetor
1 x 4-pin ATX 12V Power Connetor
2 x USB connector support additional 4 USB ports
1 x LPC_DEBUG connector
1 x Front panel audio connector
1 x System Panel connector
1 x USB keyboard
1 x USB mouse
1 x VGA
1 x HDMI
4 x USB 2.0
1 x LAN(RJ45) Port
3 x Audio jack
1 x PCIe 2.0 x1
BIOS EFI BIOS
Form Factor Micro ATX - 213*170 mm

Garansi Resmi 1 Tahun

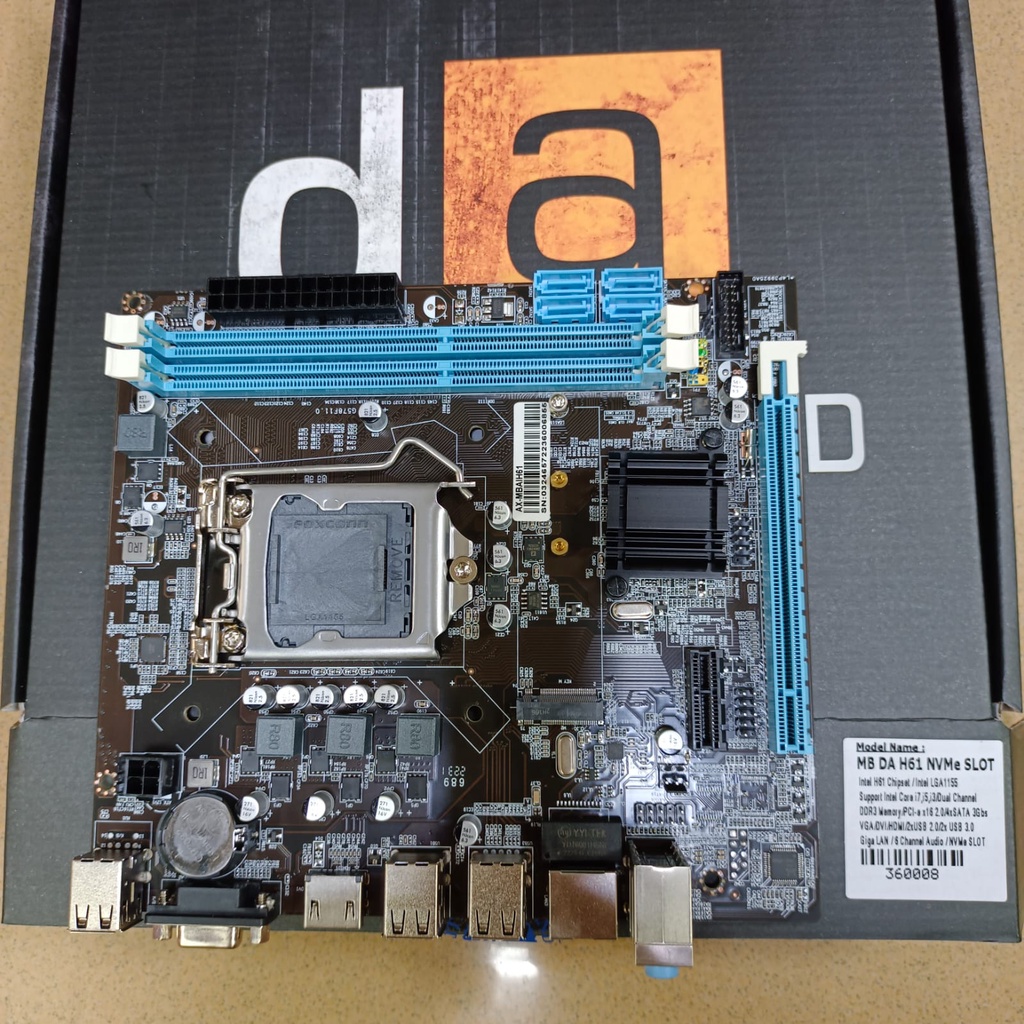

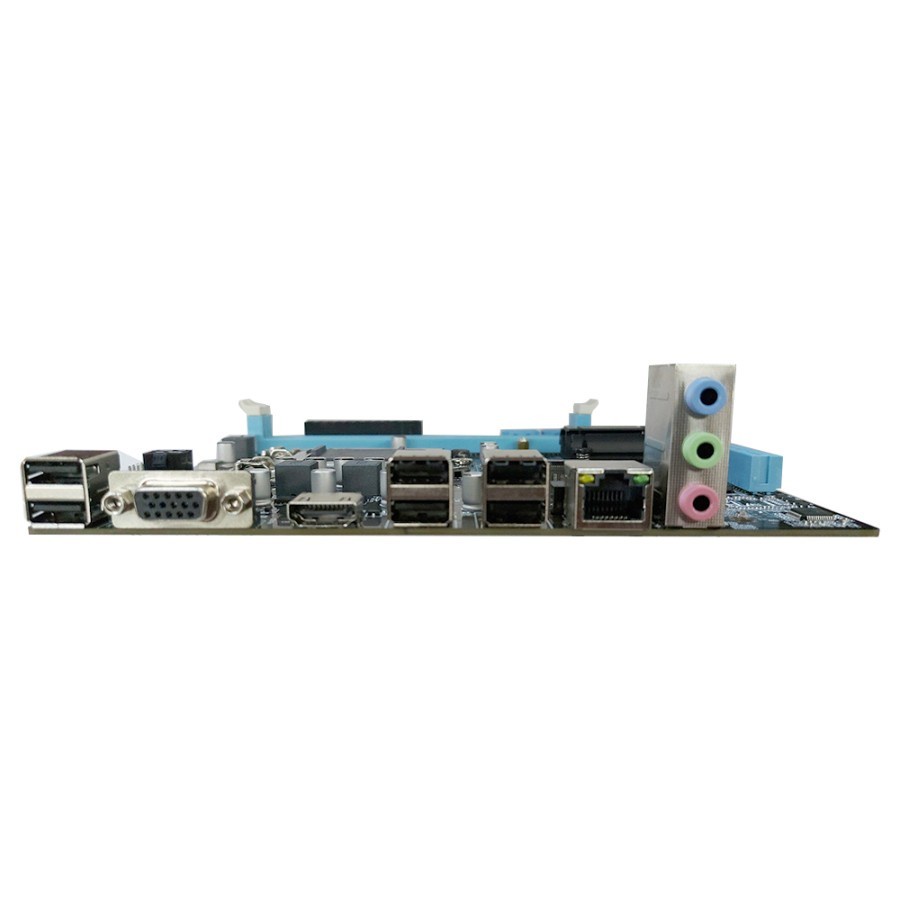

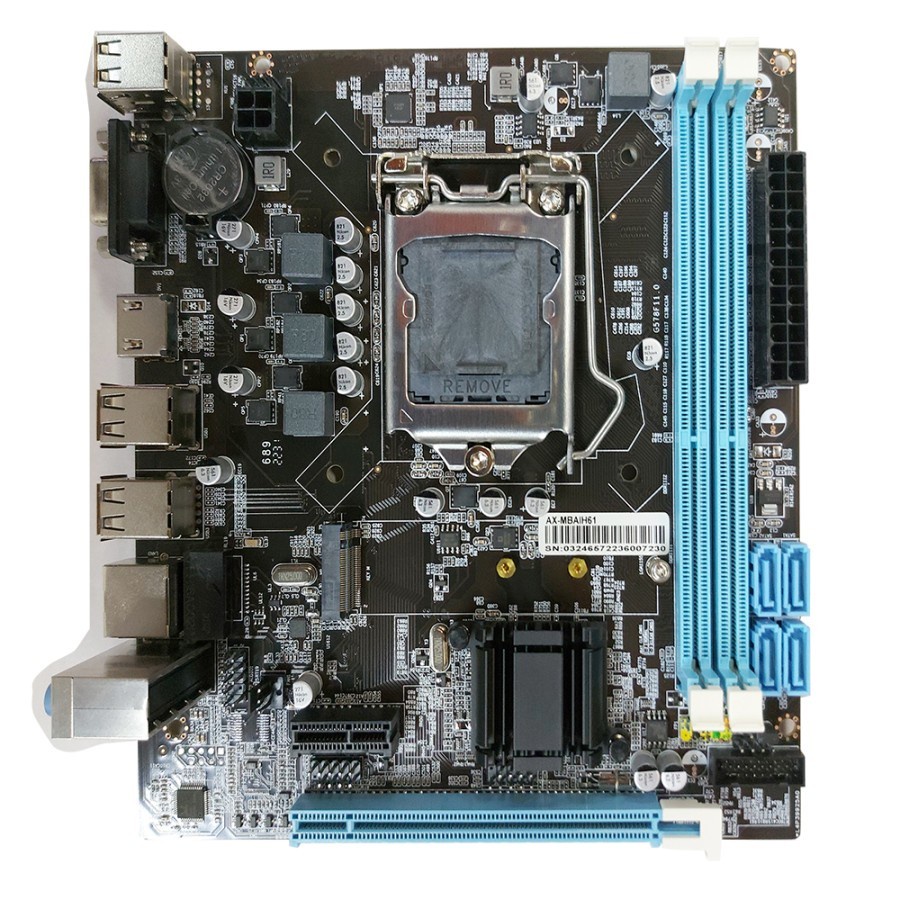

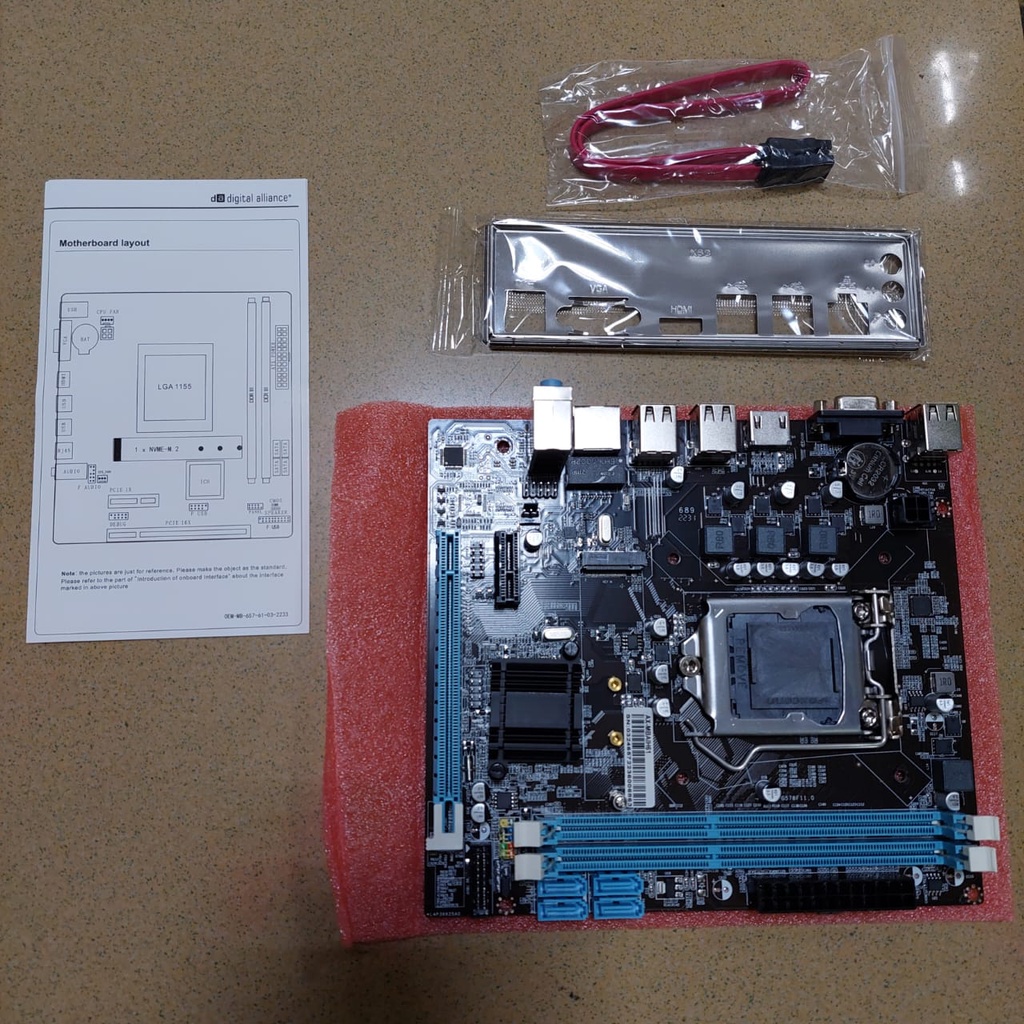

Gambar produk
