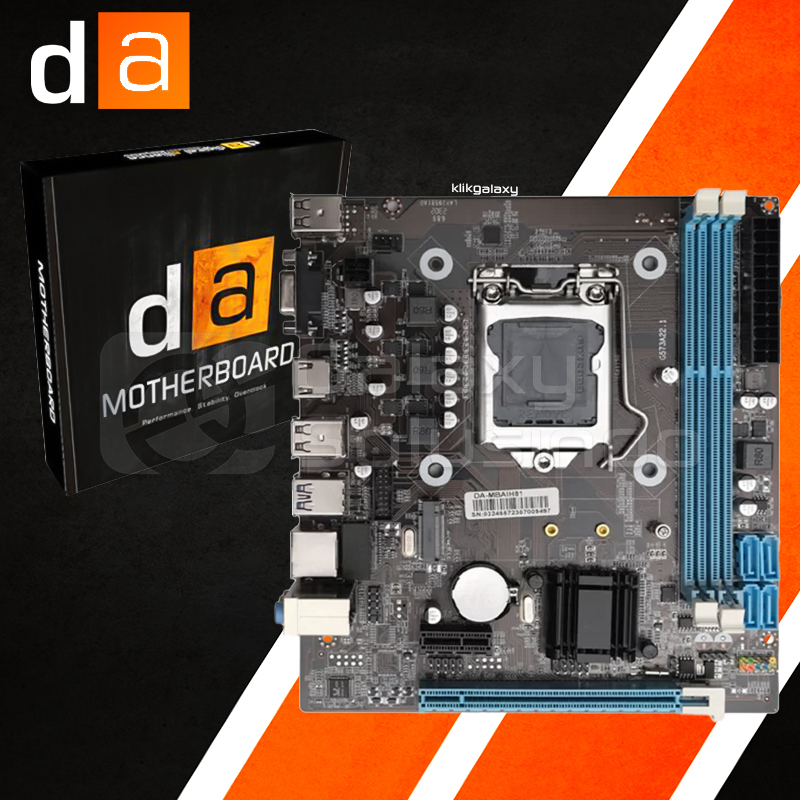

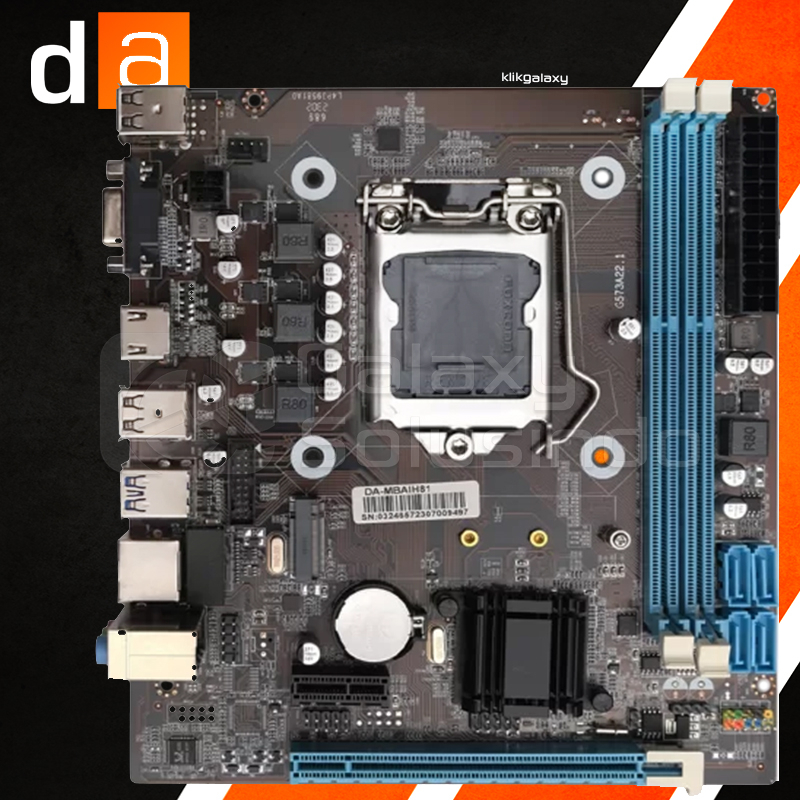

Digital Alliance DA H81 Intel LGA1150 NVMe Motherboard

Detail Digital Alliance DA H81 Intel LGA1150 NVMe Motherboard

SPECIFICATION:
Processor Support Intel® Core™ 4th/5th Gen in the LGA 1150 package
Chipset Intel® H81 Express Chipset
Memory • 2 x DDR3 DIMM socket supporting up to 16 GB of system memory
• Dual channel memory architecture
• Support for DDR3 1066/1333/1600/1866 MHz memory modules
Onboards Graphics Integrated Intel®
LAN 10/100Mb LAN on board
Audio • High Definition Audio
• 6-Channel Audio Codec
Slot • 1 x PCI Express x16 slot
• 1 x PCI Express x1 slot
• 1 NVMe M.2 connector
I/O Connector • 4 x USB 2.0
• 2 x USB 3.o
• 1 x USB 2.0
• 1 x D-Sub port
• 1 x HDMI port
• 1 x RJ-45 port
• 3 x Audio jack
Form Factor Micro ATX Form Factor; 17cm x 19cm
