Detail Digital 4 Digits Blue LED Tachometer RPM Speed Meter Include Hall Proximity Switch Sensor NPN And Ma

Yuk buruan di order !!!

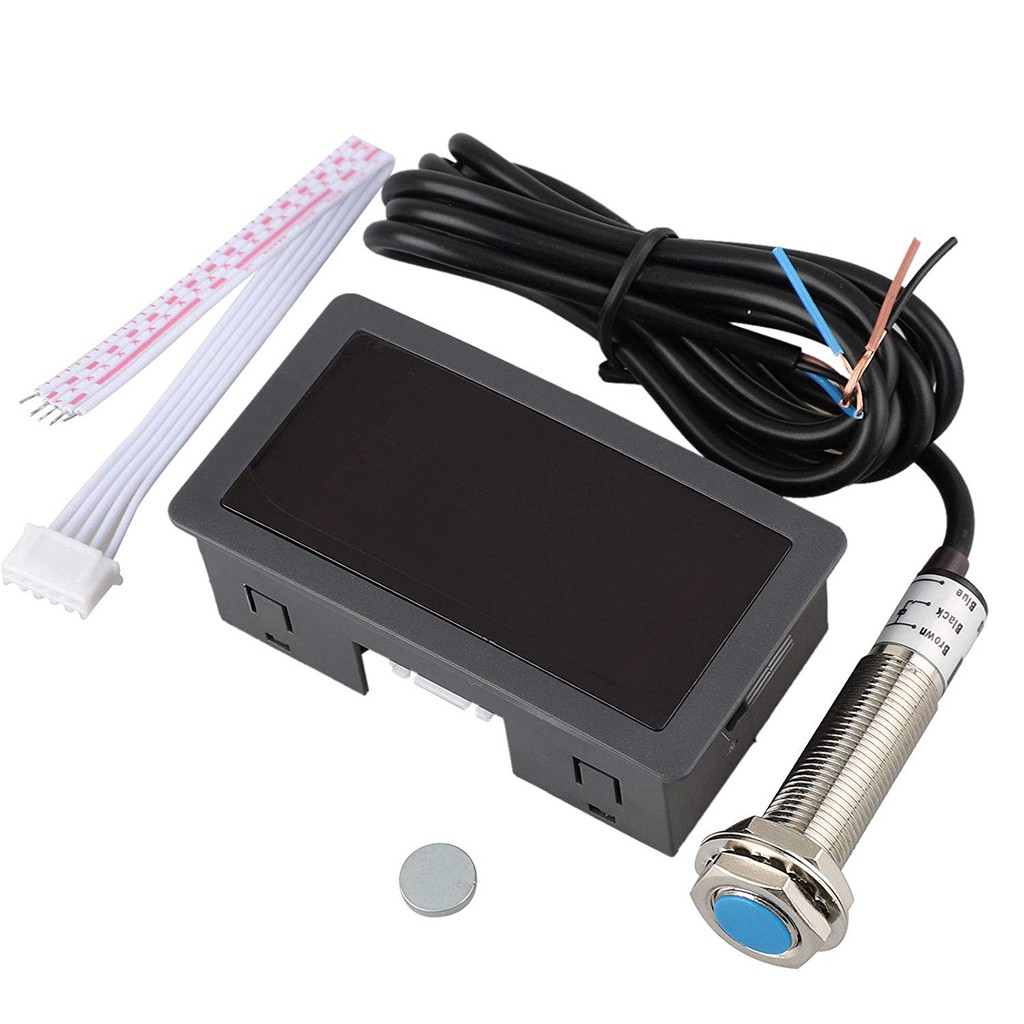

Isi Paket:
1 x Blue LED Tachometer RPM Speed Meter
1 x Hall Proximity Switch Sensor NPN
1 x Magnet

Specifications
Working power supplyDC8-24v 40 mA
Measure range : 5-9999RPM.
Display :Blue LED 67*32mm
Sign:Puslesignal,Hall NPN 3 wires normally open.

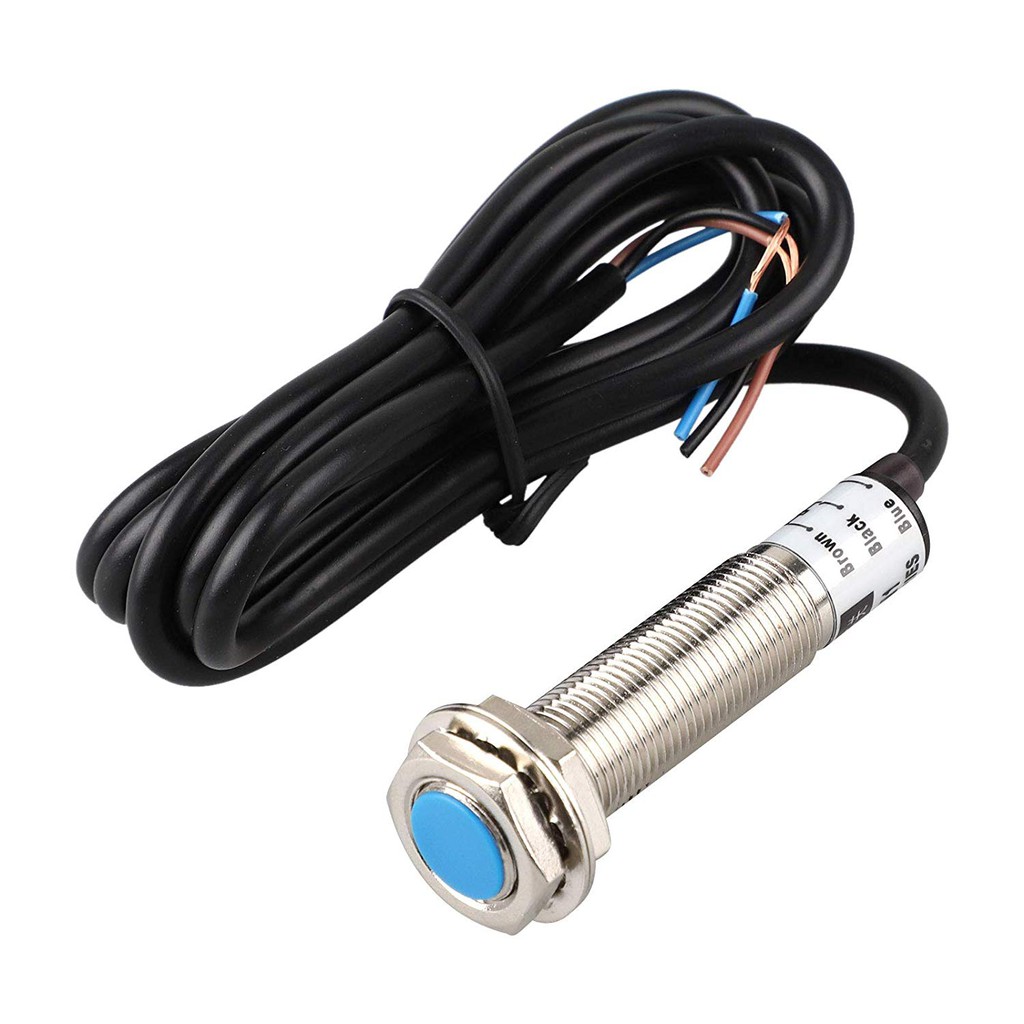

Hall proximity model:NJK-5002C
Appearance:M12mm cylinder.
Detection range: 10mm
Detected objects: magnet
Response frequency: 100HZ
Operating temperature: 0 to 50C.

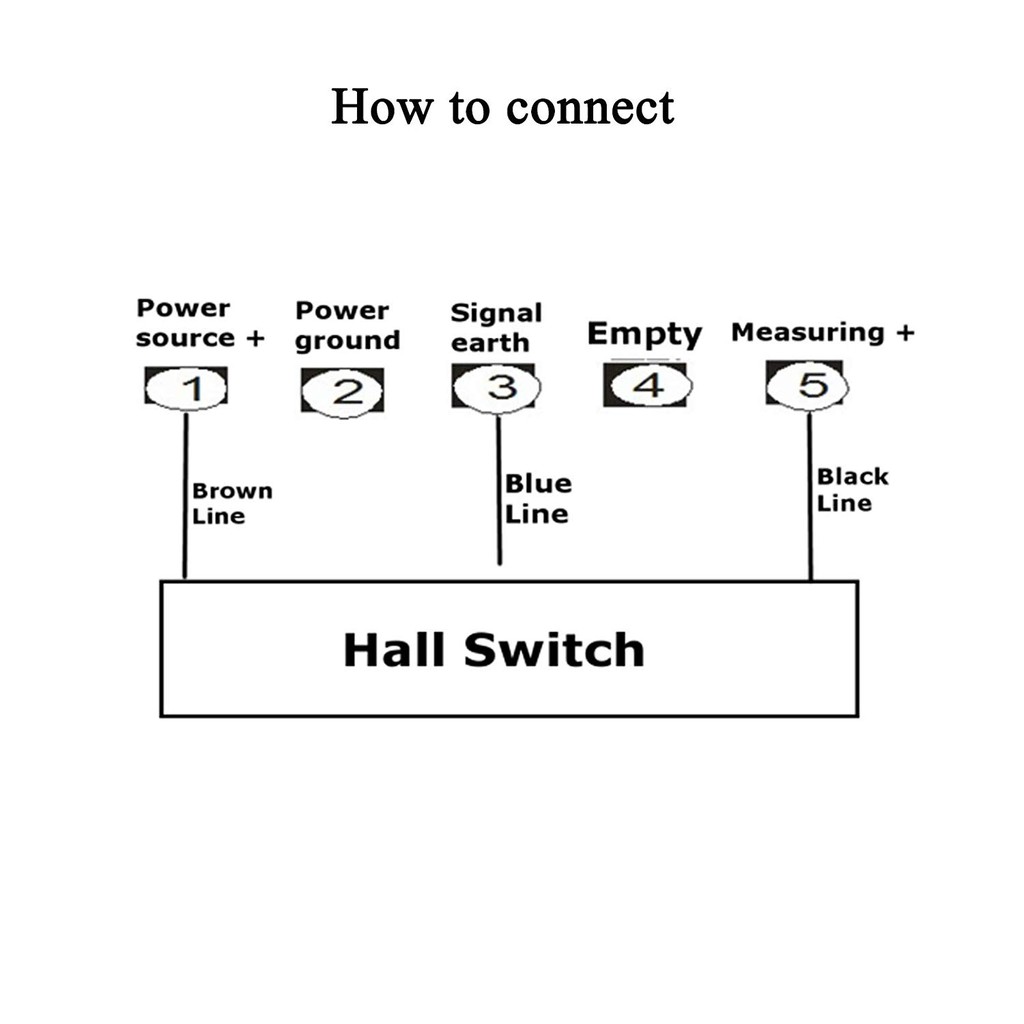

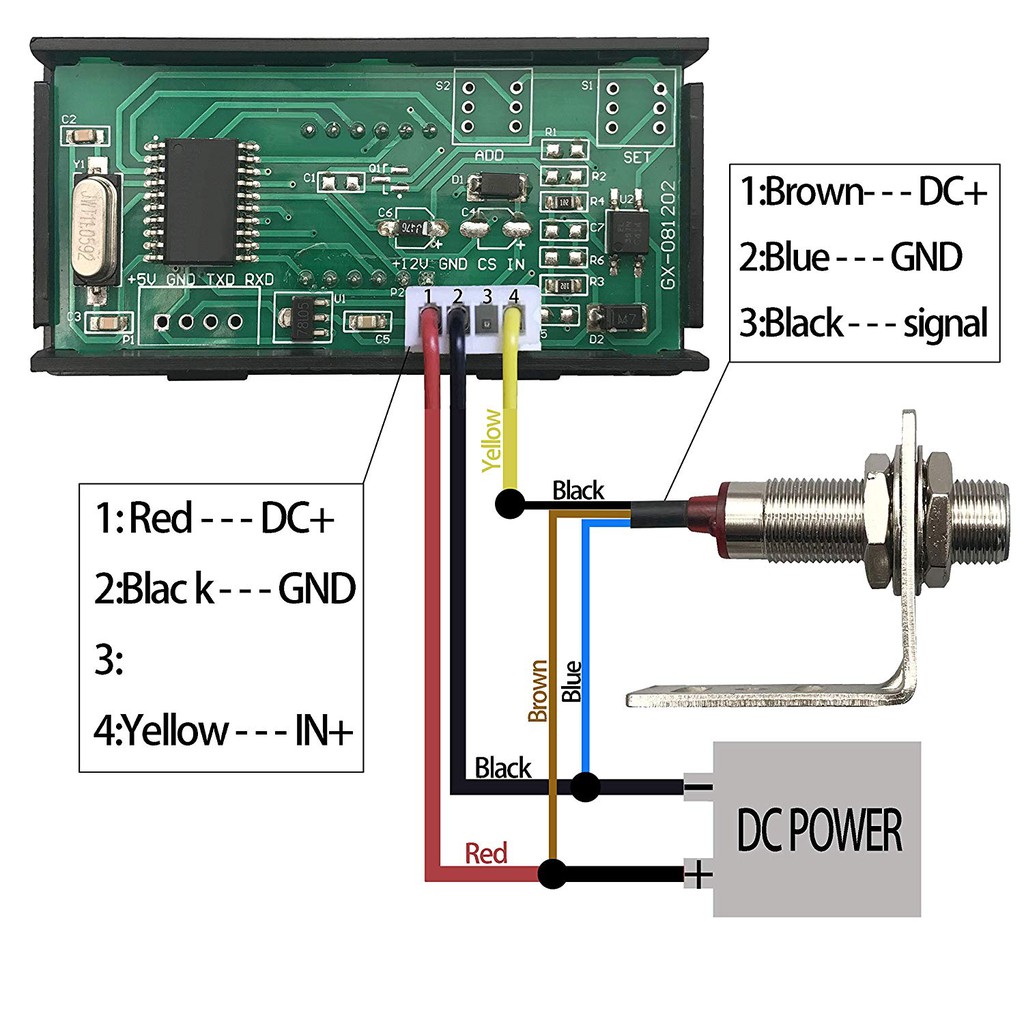

Koneksi Sensor.
Terminal 1 (+) VCC to display and sensor (brown)
Terminal 2 (-) VCC to display and sensor (blue)
Terminal 5 input from sensor (black)
Terminal 3 & 4 not used
