Digital 220VAC Temperature Controller Electronic Regulator Thermostat

Detail Digital 220VAC Temperature Controller Electronic Regulator Thermostat

Sumber powernya 220 Volt AC, jadi bisa pakai listrik rumah langsung ya.


Sumber 12 Volt:

Alat ukur untuk kontrol suhu, jadi disaat suhu mencapai derajat tertentu, maka relay output akan on atau off sesuai settingan. Dapat digunakan dari suhu -40 sampai 120 C.

Kontak relay bisa 12VDC ataupun 220 Volt.

Digital tube temperature controller, -40 to 120C temperature measurement and control.
0.1 degree resolution, 1 degree Control precision.
Compatible with heating and cooling control
Back differential adjustable, Delay start function,
Temperature upper and lower limit settings function
With power-down data storage function
High and low temperature alarm function
1m cable of probe,waterproof and thermostability
Suitable for Aquarium, Car Air Conditioning, Terrarium, Vivarium, Chicken Incubator, Domestic freezer, water tanks, refrigerator, industrial chiller, steamer, industrial equipments and other temperature-controlled systems.

Specifications:
- Temperature measurement range: -50~110C
- Temperature control range: -50~110C
- Temperature measurement error: 0.5C
- Temperature sparation rate : 0.1C
- Temperature Sensor : NTC 25C =10K B3435 +/-1% (1 miter length, no postif or negative
- output load : normally open 10A/AC220V
- working enviroment : Temp. -20~70C, Humidity. 90%RH, non moisture condensation
- Working Voltage /Power Input : 90 - 220VAC +/-10% 50/60Hz; Power Consumption:<=3W
- Dimension of whole unite : 75(W)x34.5(H)x85(W)mm
- Treapanning dimension : 71(W)x29(H)

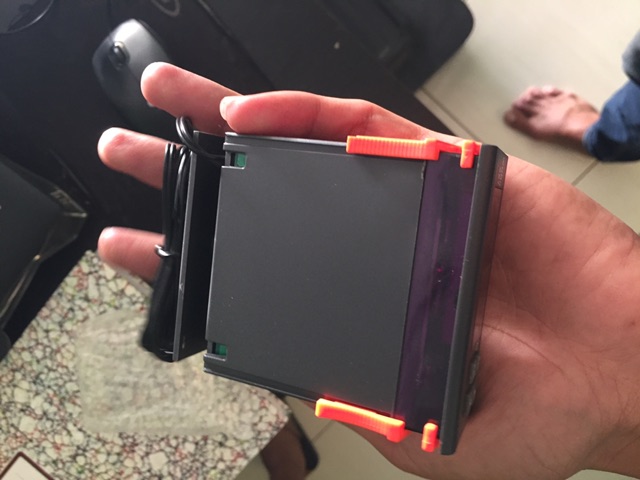

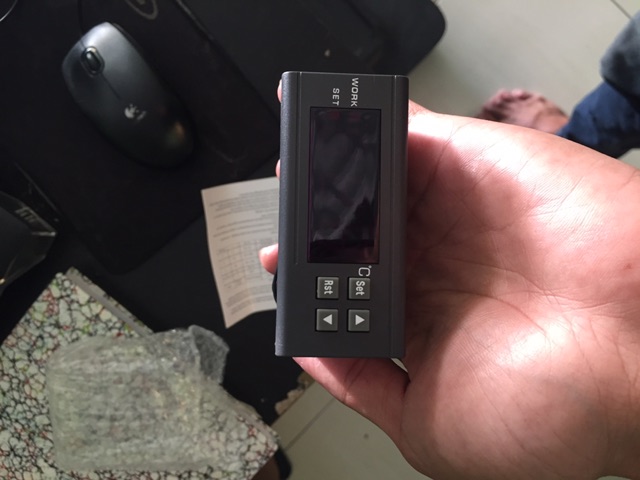

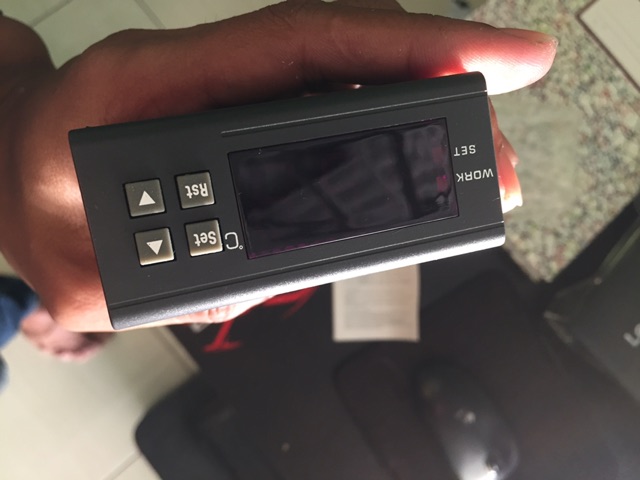

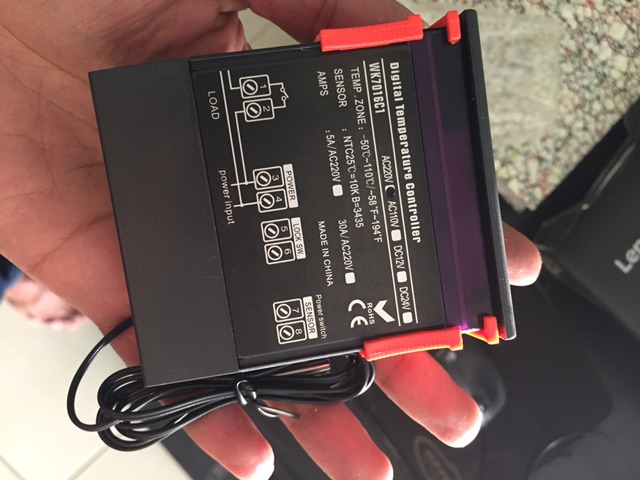

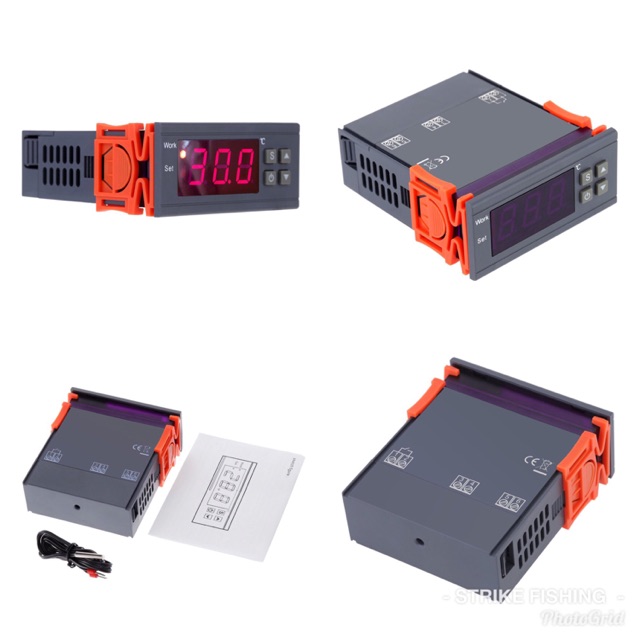

Gambar produk
