Diamond GZV4000 Switching Mode DC Power Supply 40A GSV-4000 GSV 4000

Detail Diamond GZV4000 Switching Mode DC Power Supply 40A GSV-4000 GSV 4000

Produk : Power Supply

Merk : Diamond Antenna GZV4000 Original Baru Jepang

Tipe : GZV4000

Spesifikasi :
• Size : 8.25" x 4.5" x 13"
• Weight : 8 lbs
• 40 Amp Continuous Rating, 100% Duty Cycle
• Variable Voltage Control 5-15 VDC
• Voltage Control Knob has center detent at 13.5 VDC
• Overload & short-circuit protection with Current Foldback at approximately 42 Amp
• Over Temperature Protection; variable speed fan automatically controlled for quiet operation
• Meter Selector allows monitoring of voltage & current
• Access to front panel DC terminals and cigarette lighter jack; standard 40A terminals on rear panel
• Built-in 8W speaker
• Circuitry yields high RFI protection from external sources
• AC line filter for EMI protection
• Standard 3-wire heavy duty line cord
• Power Indicator & Overload Indicator
• Accepts 120 VAC ± 20% 50-60 cps (Not compatible with 220V)
• Ripple & Noise less than 8 mV r.m.s.

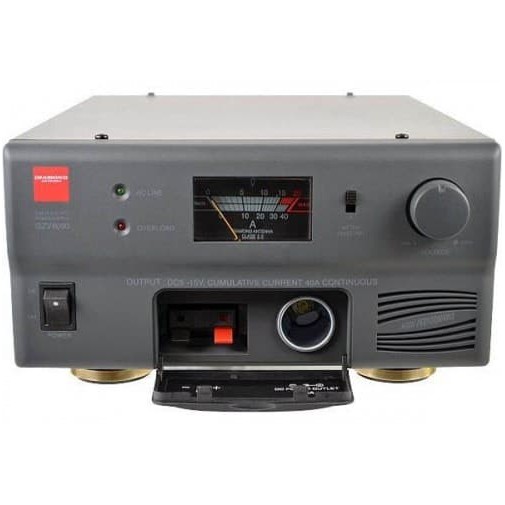

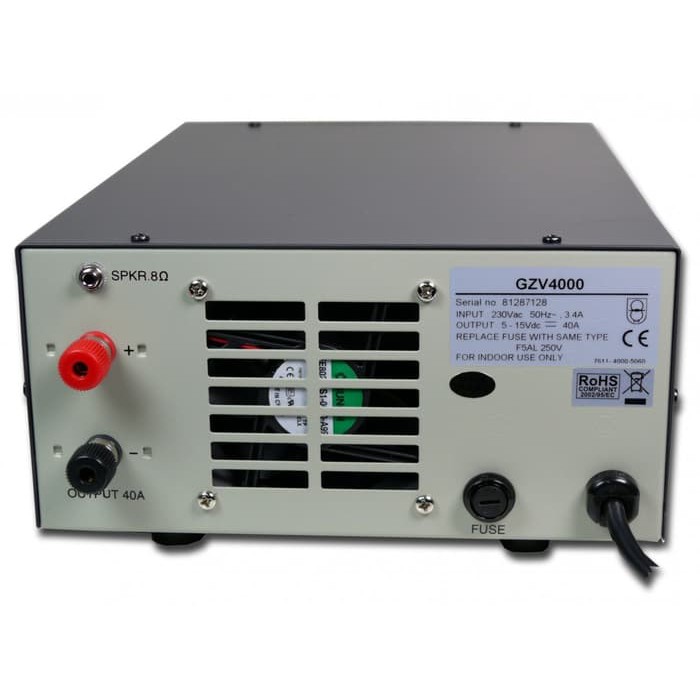

Gambar produk
