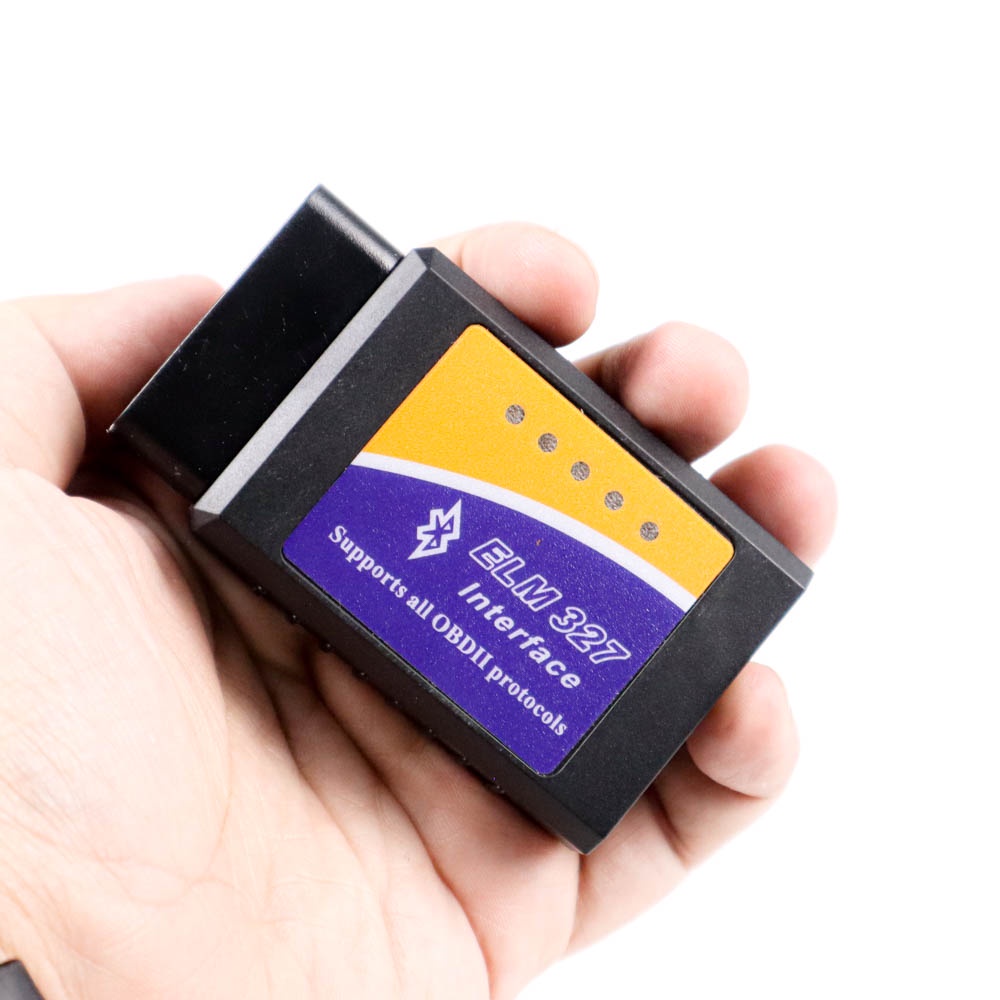

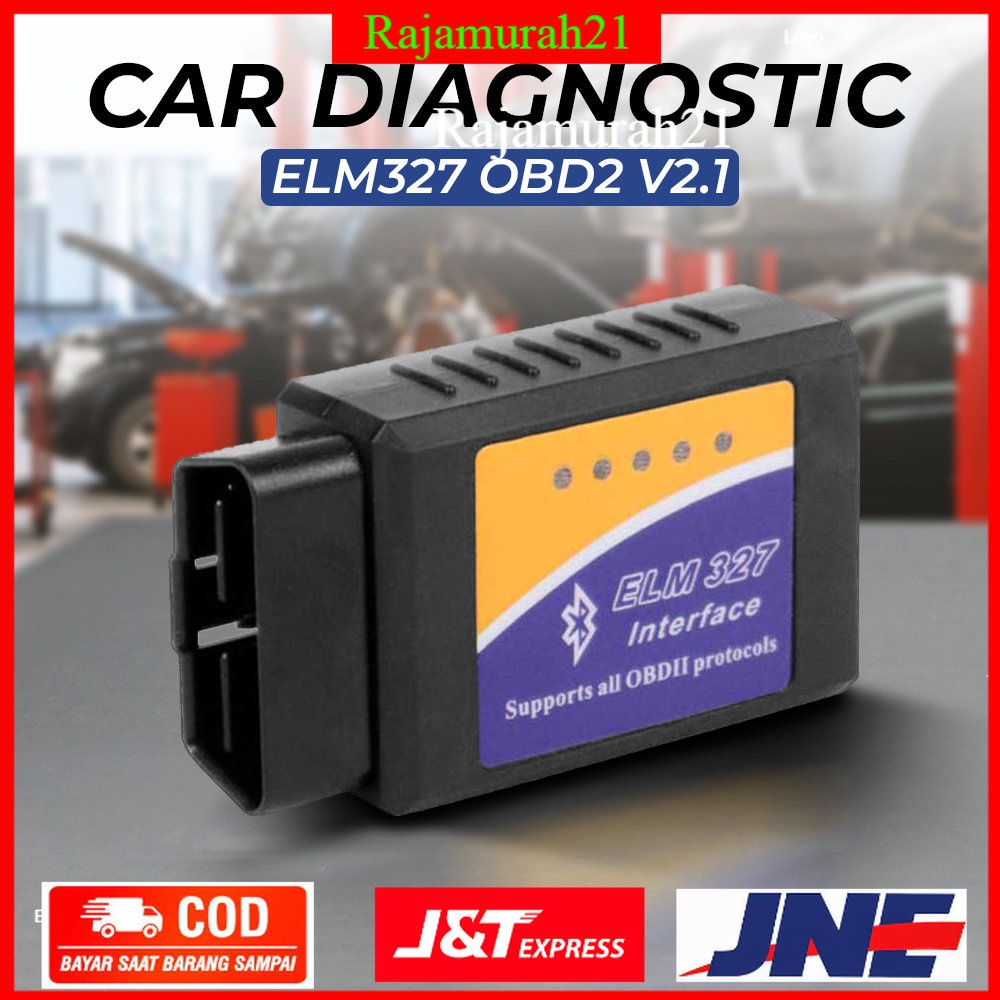

Diagmall Car Diagnostic ELM327 Bluetooth OBD2 V2.1 Test Tool - SC03 - Black - OMTH90BK
Deskripsi singkat
Otomotif > Perkakas & Perlengkapan Kendaraan > Peralatan Uji, Diagnosa, & Servis > Diagmall Car Diagnostic ELM327 Bluetooth OBD2 V2.1 Test Tool - SC03 - Black - OMTH90BK
- Pengiriman Ekspres
- Barang yang diperiksa
- Bayar di tempat berlaku
- Kualitas, Prestise
- Pengembalian produk
- Dukung pembuatan faktur
Produk Terkait
Detail Diagmall Car Diagnostic ELM327 Bluetooth OBD2 V2.1 Test Tool - SC03 - Black - OMTH90BK
ELM327 is the newly developed wireless scan tool. It supports all OBD-II protocols Works with all OBD-II compliant vehicles Wireless (Bluetooth) Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning. (over 3000 generic code definitions in the database). Clear trouble codes and turn off the MIL.FEATURES
Top Features
Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database).
Clear trouble codes and turn off the MIL ("Check Engine" light)
Set the maximum number of responses to obtain
Remove spaces from ECU responses (to speed data transmission)
Store a unique identifier in EEPROM
Set the CAN mask and filter with one command
Easily switch between variable and fixed CAN message lengths
Send CAN remote frames (RTRs)
Display current sensor data, including:
Engine RPM
Calculated Load Value
Coolant Temperature
Fuel System Status
Vehicle Speed
Short Term Fuel Trim
Long Term Fuel Trim
Intake Manifold Pressure
Timing Advance
Intake Air Temperature
Air Flow Rate
Absolute Throttle Position
Oxygen sensor voltages/associated short term fuel trims
Fuel System status
Fuel Pressure
Many others...
Multi-Protocol Support:
SAE J1850 PWM (41.6Kbaud)
SAE J1850 VPW (10.4Kbaud)
ISO9141-2(5 baud init, 10.4Kbaud)
ISO14230-4 KWP (5 baud init, 10.4 Kbaud)
ISO14230-4 KWP (fast init, 10.4 Kbaud)
ISO15765-4 CAN (11bit ID, 500 Kbaud)
ISO15765-4 CAN (29bit ID, 500 Kbaud)
ISO15765-4 CAN (11bit ID, 250 Kbaud)
ISO15765-4 CAN (29bit ID, 250 Kbaud)
SAE J1939 CAN (29bit ID, 250*Kbaud)
USER1 CAN (11*bit ID, 125*Kbaud)
USER2 CAN (11*bit ID, 50*kbaud)
default settings (user adjustable)
Vehicle Coverage:
Works on all OBD2 Vehicles (1996 onwards in USA) and EOBD vehicles ( Petrol cars from 2001 and diesel cars from 2003/2004 in Europe)
PACKAGE CONTENTS
All item you get from the box:
1 x EOBD / OBD2 Bluetooth Diagnostic Interface
