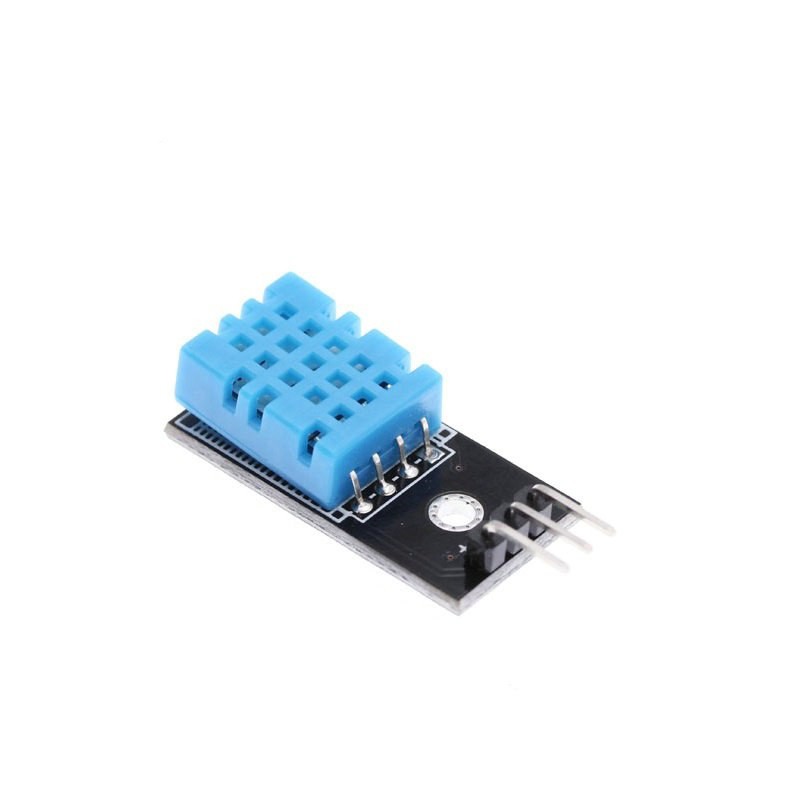

DHT11 MODUL SENSOR KELEMBABAN SUHU HUMIDITY TEMPERATURE ARDUINO

Detail DHT11 MODUL SENSOR KELEMBABAN SUHU HUMIDITY TEMPERATURE ARDUINO

SENSOR SUHU DAN KELEMBAPAN / TEMPERATURE AND HUMIDITY SENSOR MODULE DHT11

Module yang compact buat mengukur suhu dan kelembapan, biasa dipake pada arduino project maupun project elektronika lainnya

Product Description
1 sensor DHT11
2 Humidity measuring range: 20% -95% (0 degrees -> 50 degrees) Humidity measurement error: + -5%
3 Temperature measurement range: 0 degrees -> 50 degrees temperature measurement error: + -2 degrees
4 Operating voltage 3.3V-5V
5 Output Type Digital Output
6 with fixed bolt hole for easy installation
7 small plates PCB size: 3.2cm* 1.4cm

Two module interface specification (3-wire)
1 VCC external 3.3V-5V
External GND 2 GND
3 DO small plate switch digital output interface connected microcontroller IO port

#dht11 #humidity #sensor

Gambar produk
