DHT11 DHT 11 Humidity and Temperature Sensor

Detail DHT11 DHT 11 Humidity and Temperature Sensor

Hi #RekanEasyWare ...
EasyWare Part#: EP000451

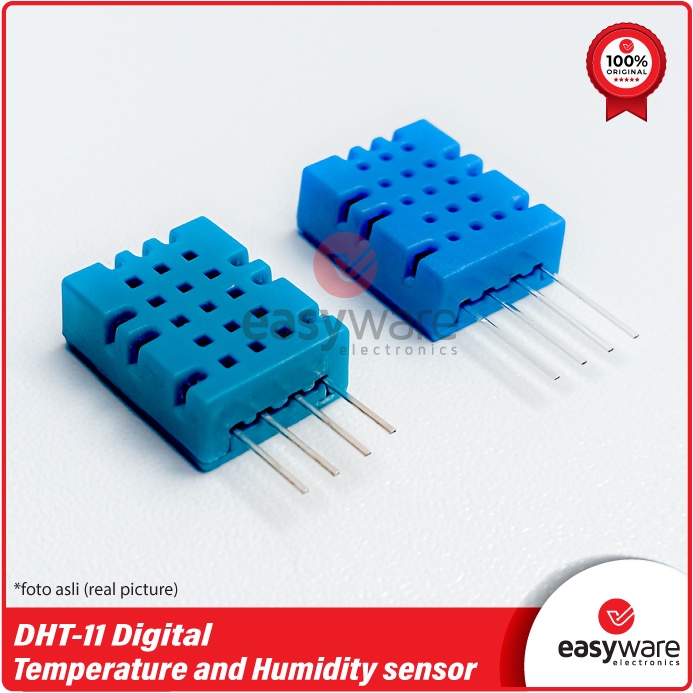

The DHT11 Temperature and Humidity Sensor is a basic, ultra low-cost digital temperature and humidity sensor. It uses a capacitive humidity sensor and a thermistor to measure the surrounding air, and outputs a digital signal on the data pin (no analog input pins needed). Its fairly simple to use, but requires careful timing to grab data. The only real downside of this sensor is you can only get new data from it once every 2 seconds, so when using our library, sensor readings can be up to 2 seconds old.

Compared to the DHT22, this sensor is less precise, less accurate and works in a smaller range of temperature/humidity, but its smaller and less expensive

Features & Spesifications:
- 3 to 5V power and I/O
- 5mA max current use during conversion (while requesting data)
- Good for 20-80% humidity readings with 5% accuracy
- Good for 0-50°C temperature readings ±2°C accuracy
- No more than 1 Hz sampling rate (once every second)
- Body size 15.5mm x 12mm x 5.5mm

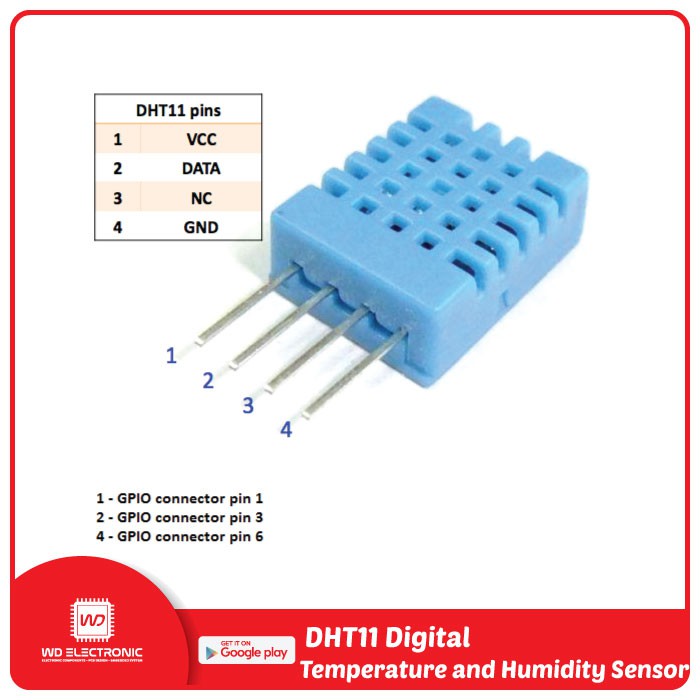

- 4 pins with 0.1″ spacing

Package:
- 1pcs DHT11 Temperature and Humidity Sensor
