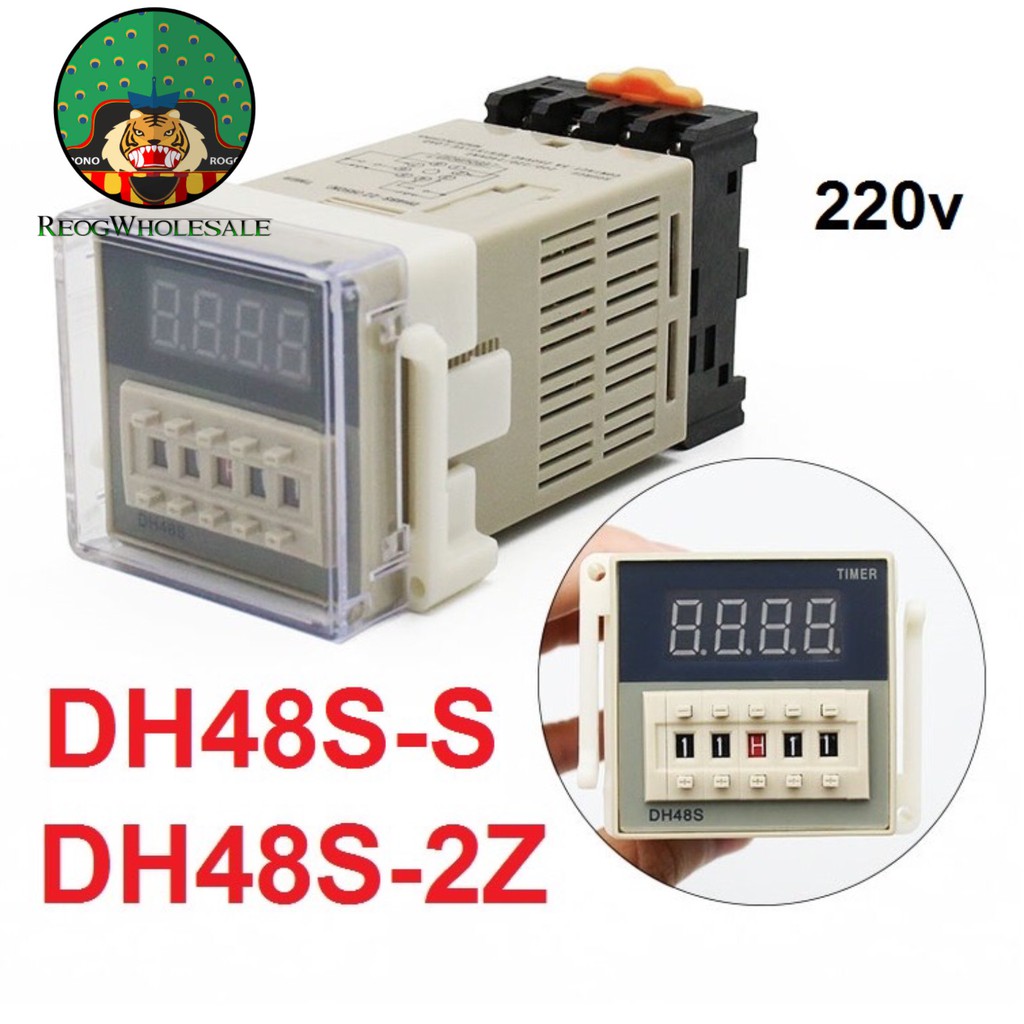

DH48S-S DH48S-2Z Time Relay Delay Digital Mesin Tetas 220V TImer Telur Otomatis Twin Counter DH48S

Detail DH48S-S DH48S-2Z Time Relay Delay Digital Mesin Tetas 220V TImer Telur Otomatis Twin Counter DH48S

Video perkenalan produk DH48S-S DH48S-2Z Time Relay Delay Digital Mesin Tetas 220V TImer Telur Otomatis Twin Counter DH48S. Sumber: Shopee.

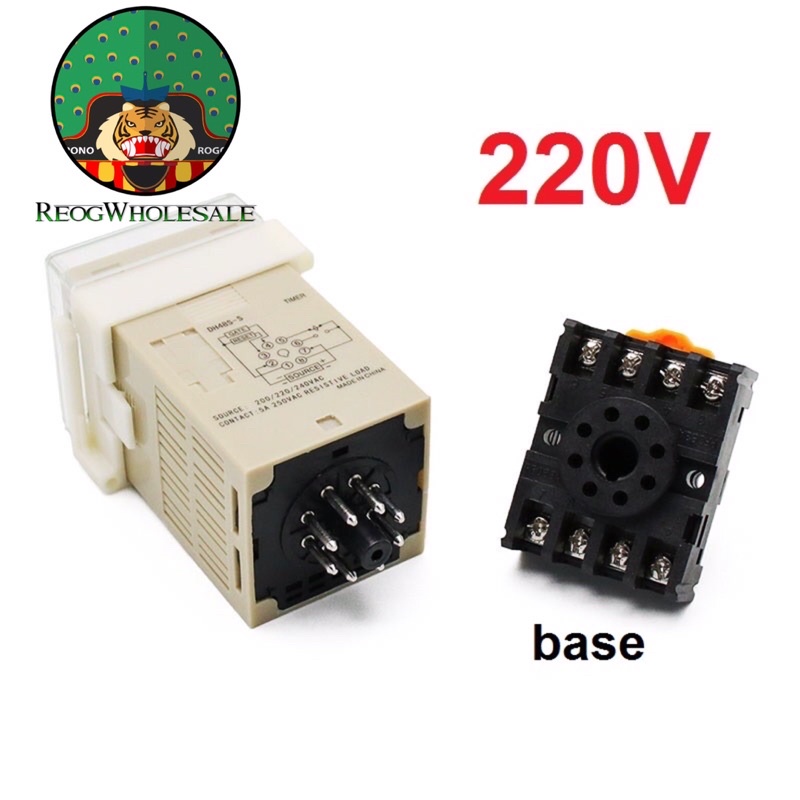

Semua 220V, Ada base.

**************** DH48S-S******************
Fitur :
1. Dilengkapi Twin Timer (T1 dan T2) bisa mengatur durasi ON dan durasi OFF sekaligus.
2. Rentang waktu yang bisa diatur sangat lebar, mulai dari: 0.1 detik s/d 99 jam
3. Pengaturan sangat mudah dengan tombol +- dan layar LCD 4 digit
Spesifikasi Produk:
Model: DH48S-S
Cara kerja: Time Relay (repeat cycle)
Durasi timer: 0.1 dtk s/d 99 jam
Tegangan kerja: 220v AC
Frekwensi kerja: 50/60 Hz
Akurasi timer: < 0.3% +/- 0.05dtk
Kapasitas kontak: AC220v 5A, DC30v 5A (Resistive)

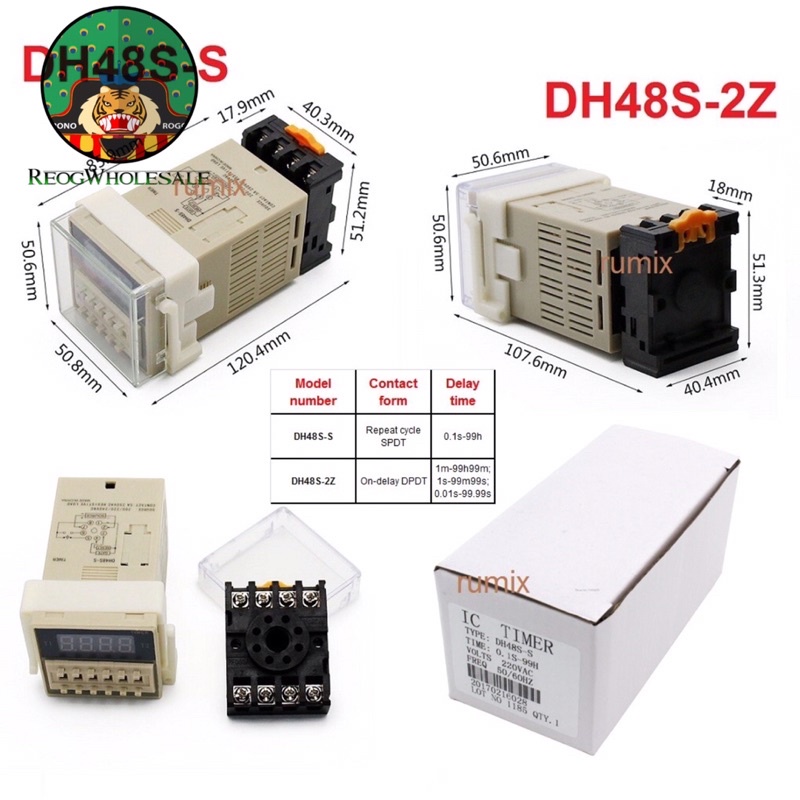

Dimensi: 48x48x105mm
Pembagian pin:
2-7 = source voltage (AC atau DC -+)
1-4 = bypass
1-3 = reset short circuit
8-5 = contact NC (normally close)
8-6 = contact NO (normally open)

**************** DH48S-2Z******************
Features:
Model: DH48S-2Z
Cara kerja: Time Relay On Delay
Durasi timer: 000.1 dtk s/d 9999 jam
Tegangan kerja: 220v AC
Frekwensi kerja: 50/60 Hz
Akurasi timer: < 0.3% +/- 0.05dtk
Kapasitas kontak: AC220v 5A, DC30v 5A (Resistive)
Model Number: DH48S-2Z
Contact Resistive Load: AC 250V 3A
Contact Type: DPDT, 2NO 2NC
Number of Terminals: 8 Pins
Time Range: 0.01s-99H99M
External Material: Plastic, Metal, Electric Parts
Fixing Hole Dia: 3mm/0.12"
Mounted Hole Distance: 33mm
Total Size : 110 x 60 x 50mm
Net Weight: 135g
Delay Time: 1m-99h99m; 1s-99m99s; 0.01s-99.99s
Contact form: On-delay DPDT

Gambar produk
