DH48J DH48J-11A 220V Digital Display Counter Relay Dual Signal Input 11 Pin
Deskripsi singkat
Elektronik > Elektronik Lainnya > DH48J DH48J-11A 220V Digital Display Counter Relay Dual Signal Input 11 Pin
- Pengiriman Ekspres
- Barang yang diperiksa
- Bayar di tempat berlaku
- Kualitas, Prestise
- Pengembalian produk
- Dukung pembuatan faktur
Produk Terkait
Detail DH48J DH48J-11A 220V Digital Display Counter Relay Dual Signal Input 11 Pin
YUK BURUAN DIORDER !!!Isi Paket :

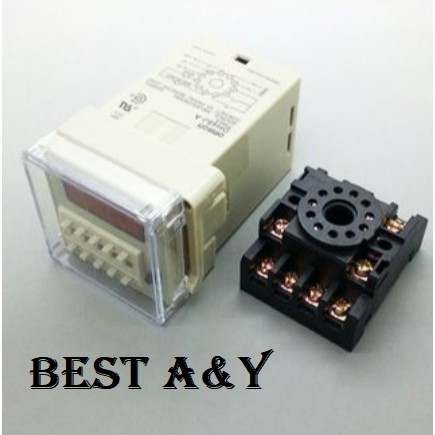

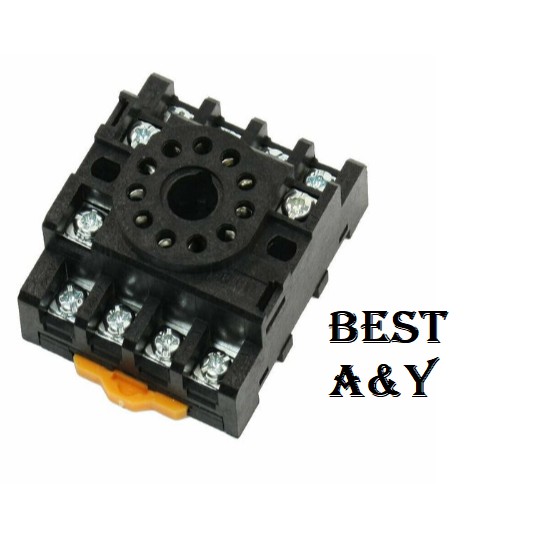

1 unit Counter digital + Socket 11 Pin (jadi tinggal langsung pakai)
Specification:
Model:DH48J-11A
Input signal Contact,level, sensor (NPN type)
Current: 5A
Power consumption: 3W
Counting range: 1-999900
Coil power supply: 220VAC
Contact switching voltage: 220VAC
Rated frequency: 50/60Hz
Ambient temperature: -10~50
Dimensions: 117*51*59mm / 4.6*2.0*2.3in
Features:
1. High quality plastic case, waterproof and dustproof.
2. 4-bit LED display shows count clearly.
3. With transparent protection cover to protect the display panel from damage.
4. High precision, large contact capacity, long service life.
5. It is used as counting control in automatic control system.

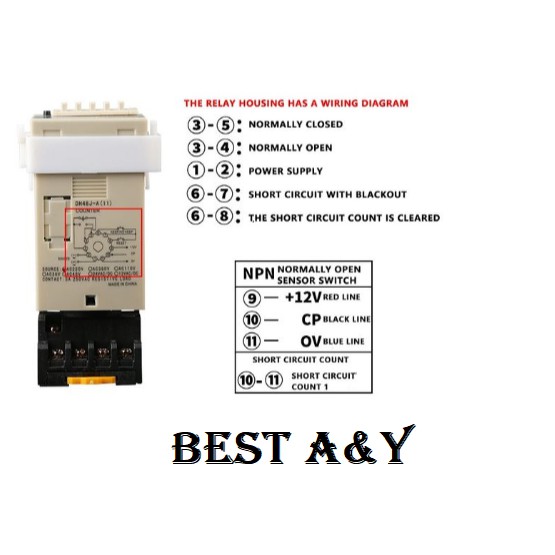

DH48j-11A memiliki kaki 11 pin dan input trigger counter dapat berupa kontak atau sensor proxmity. Sehingga input signal lebih bervariasi dan lengkap.
Gambar produk
