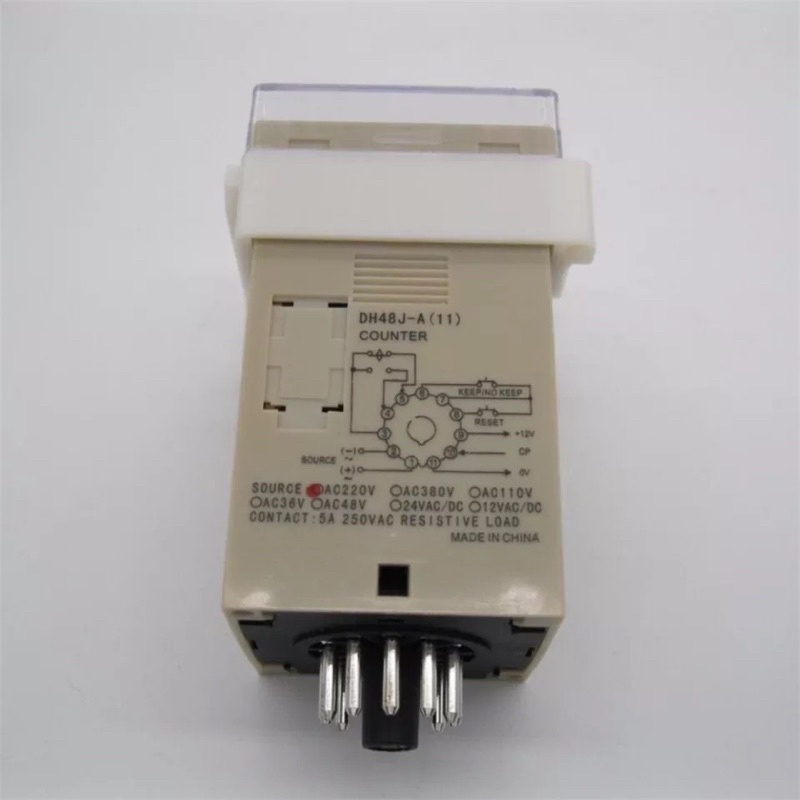

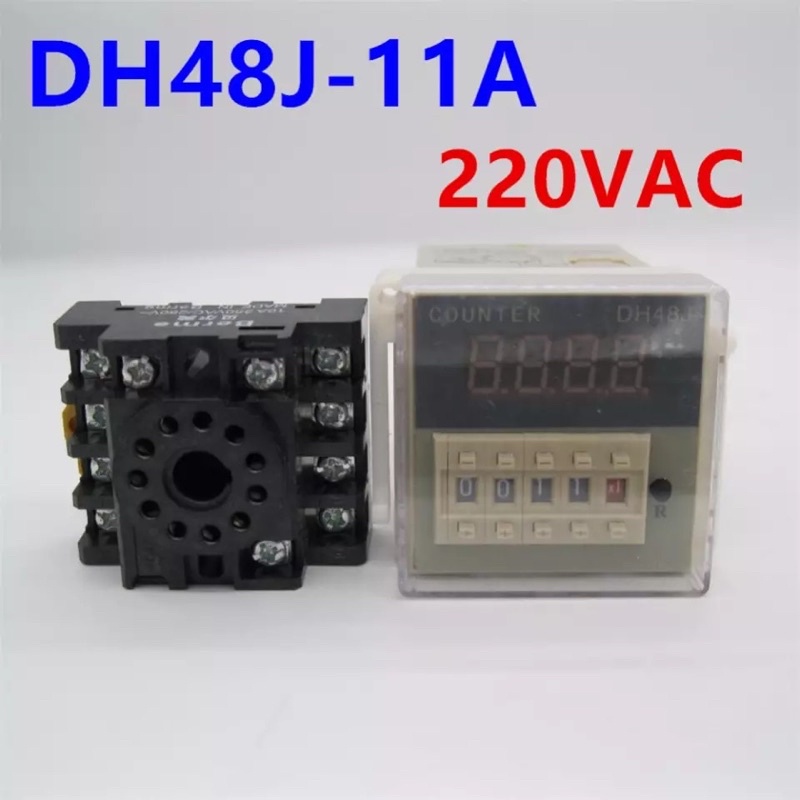

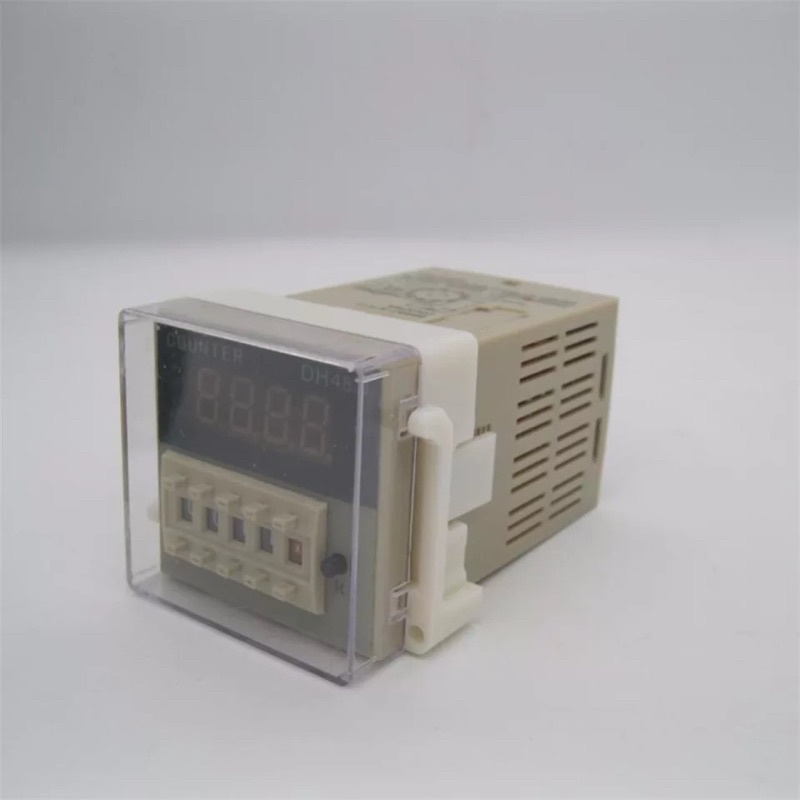

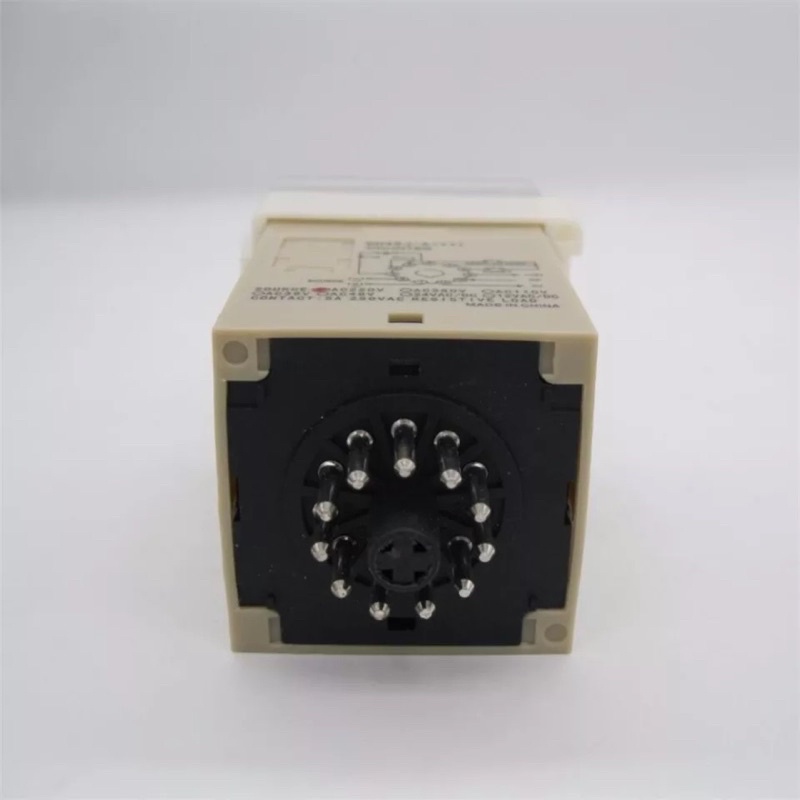

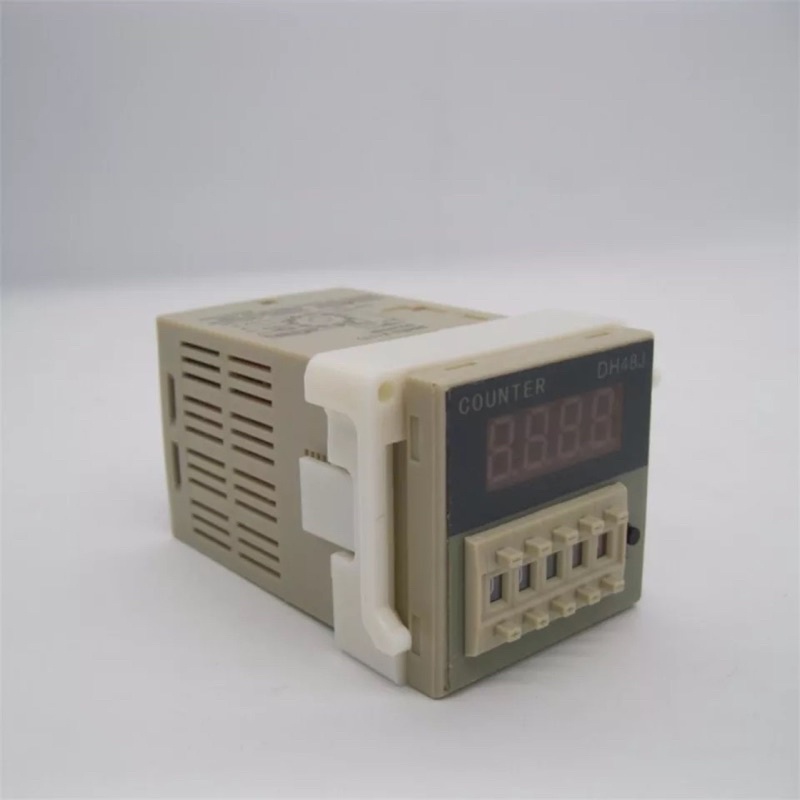

DH48J-11A 11-Pin Timer Digital Counter Relay LED Display 220V

Elektronik > Kelistrikan > Saklar > DH48J-11A 11-Pin Timer Digital Counter Relay LED Display 220V
  • Pengiriman Ekspres
  • Barang yang diperiksa
  • Bayar di tempat berlaku
  • Kualitas, Prestise
  • Pengembalian produk
  • Dukung pembuatan faktur

Detail DH48J-11A 11-Pin Timer Digital Counter Relay LED Display 220V

Features:
1. High quality plastic case, waterproof and dustproof.
2. 4-bit LED display shows count clearly.
3. With transparent cover to protect the display panel from damage.
4. High accuracy, large contact capacity, long service life.
5. It is used as counting control in automatic control system.

Specification:
Model:DH48J-11A
Input signal voltage: 220VAC
Current: 5A
Power consumption:≤3W
Counting range: 1-999900
Contact switching voltage: 220VAC
Rated frequency: 50/60Hz
Ambient temperature: -10~50℃
Dimensions: 117*51*59mm / 4.6*2.0*2.3in
Package weight: Approx. 240g/8.4oz

Packagelist:
1x Digital Counter Relay
1x Socket 11 Pin
1x Manual
