DFROBOT SOIL MOISTURE SENSOR GRAVITY ANALOG SOIL MOISTURE MODULE

Detail DFROBOT SOIL MOISTURE SENSOR GRAVITY ANALOG SOIL MOISTURE MODULE

A soil moisture sensor can read the amount of moisture present in the soil surrounding it. It's an ideal for monitoring an urban garden, or your pet plant's water level. This is a must have component for a IOT garden / Agriculture!

The new soil moisture sensor uses Immersion Gold which protects the nickel from oxidation. Electroless nickel immersion gold (ENIG) has several advantages over more conventional (and cheaper) surface platings such as HASL (solder), including excellent surface planarity (particularly helpful for PCB's with large BGA packages), good oxidation resistance, and usability for untreated contact surfaces such as membrane switches and contact points.

SPESIFIKASI :
- Power supply: 3.3v or 5v
- Output voltage signal: 0~4.2v
- Current: 35mA
- Pin definition: Analog output(Blue wire) ; GND(Black wire) ; Power(Red wire)
- Size: 60x20x5mm(2.36x0.79x0.2")
- Surface finish: Immersion Gold

KELENGKAPAN :
- 1pcs Moisture sensor
- 1pcs Analog Sensor Cable

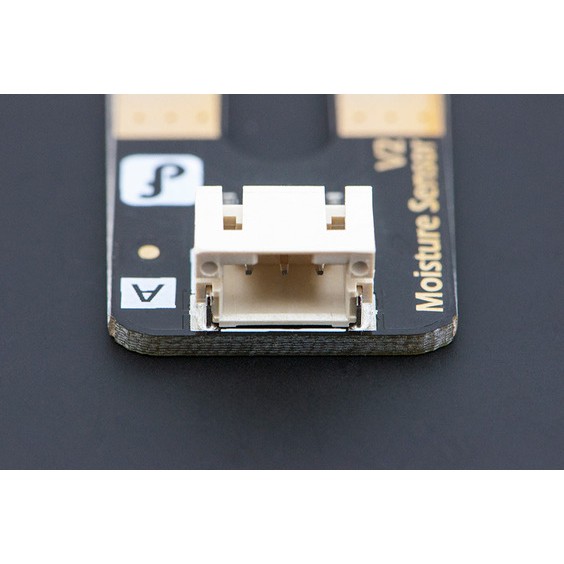

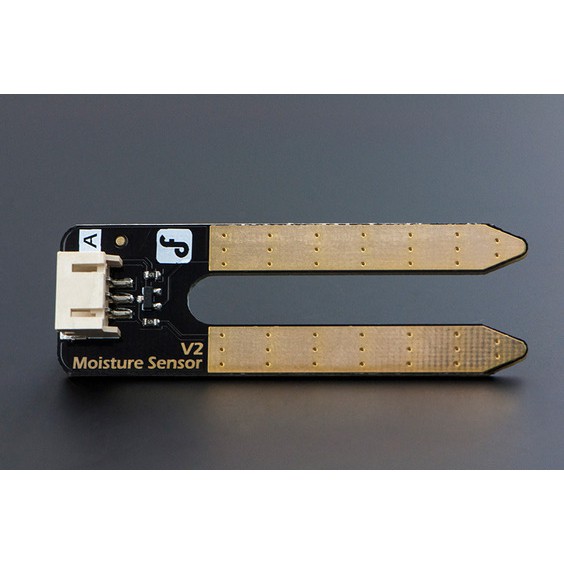

Gambar produk
