EasyWare Part#: EP000297

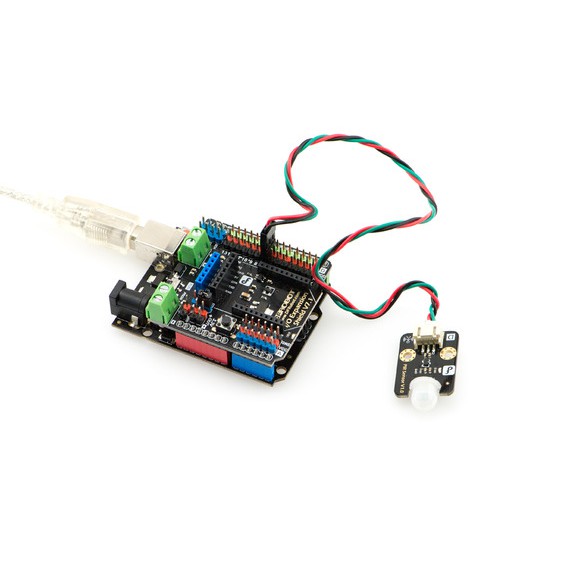

This is a PIR (passive infrared motion) sensor designed to work with Arduino and Raspberry Pi. It allows you to sense motion, it is commonly used to detect whether a human has moved in or out of the sensors range. They are small, inexpensive, low-power, easy to use and don't wear out. For that reason they are commonly found in appliances and gadgets used in homes or businesses. They are often referred to as PIR, "Passive Infrared", "Pyroelectric", or "IR motion" sensors.

This PIR (Motion) Sensor can detect the infrared signals from human body or other animals and triggers with movement. So it can be applied to a variety of scenarios which require motion detection. Conventional pyroelectric infrared sensors require body pyroelectric infrared detector, integrated chipsets, complex peripheral circuit. So the size is slightly big, circuit is complex, and reliability is slightly lower. We bring this new pyroelectric infrared motion sensor which is specially designed for your Arduino projects, an integrated digital body pyroelectric and infrared sensor, with small size, high reliability, low power consumption, and simple peripheral circuit. Very simple to use in any project.

Aplikasi :
- Moving human detection.
- Occupancy detection.
- Security systems.

Spesifications :
- Input Voltage: 3.3 ~ 5V, 6V Maximum
- Working Current: 15uA
- Working Temperature: -20 ~ 85 ℃
- Output Voltage: High 3V, low 0V
- Output Delay Time(High Level): About 2.3 to 3 Seconds
- Detection angle: 100 °
- Detection distance: 7 meters
- Output Indicator LED(When output HIGH, it will be ON)
- Pin limit current: 100mA

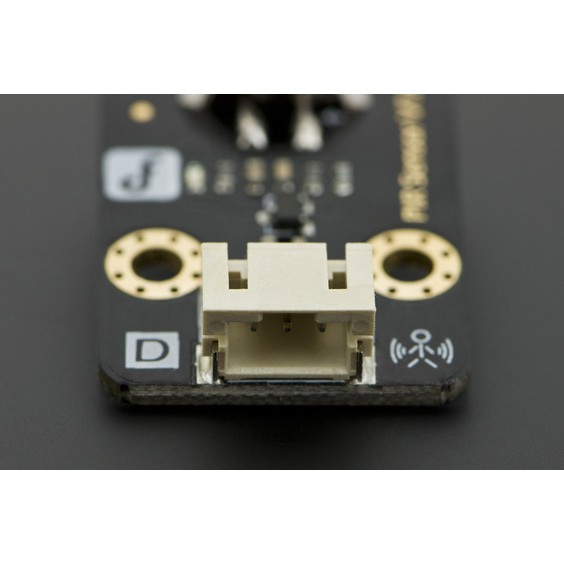

- Connection Interface: PH2.0-3
- Module size: 30mm × 22mm(1.18"x0.87")

Package :

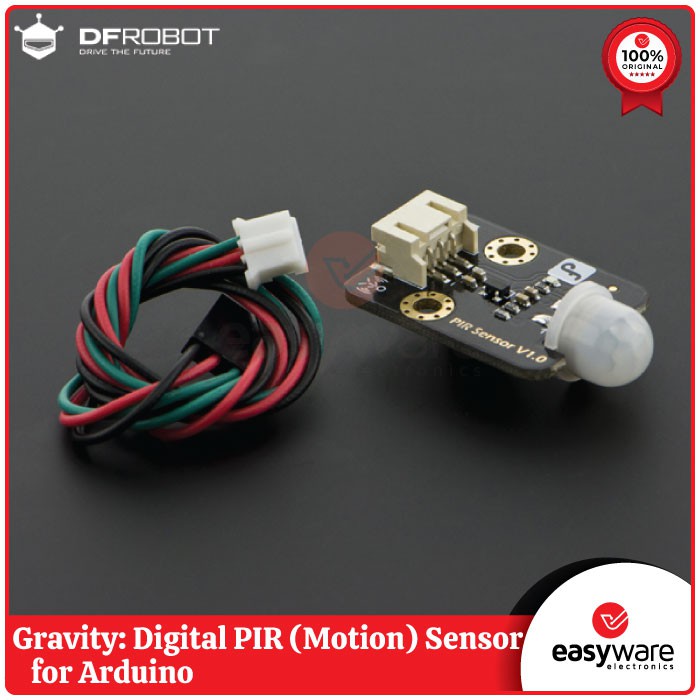

- 1x Gravity: Digital PIR (Motion) Sensor for Arduino

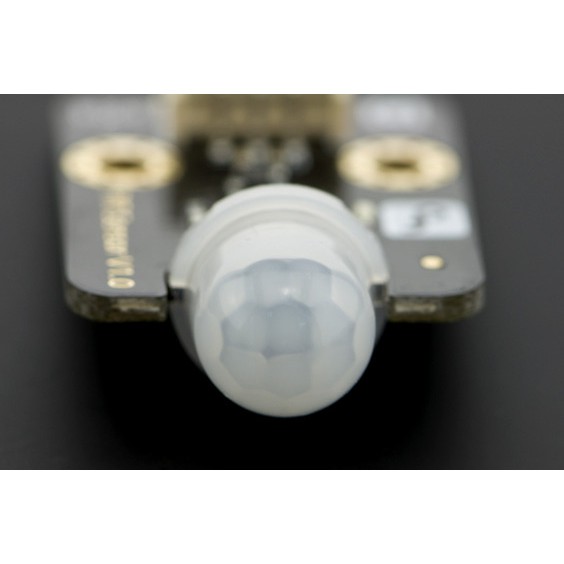

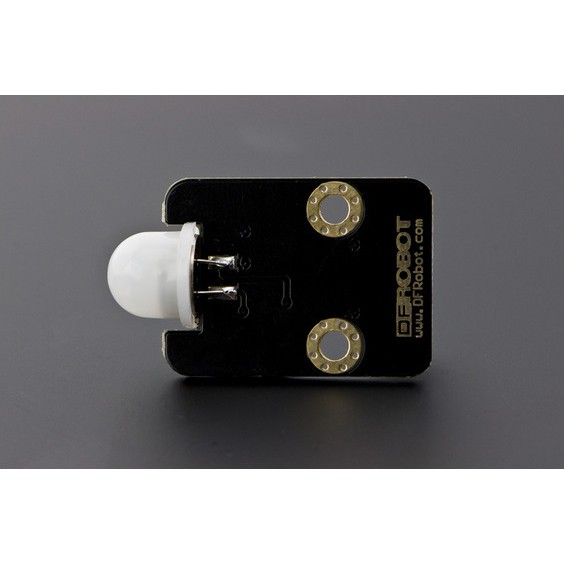

Gambar produk
