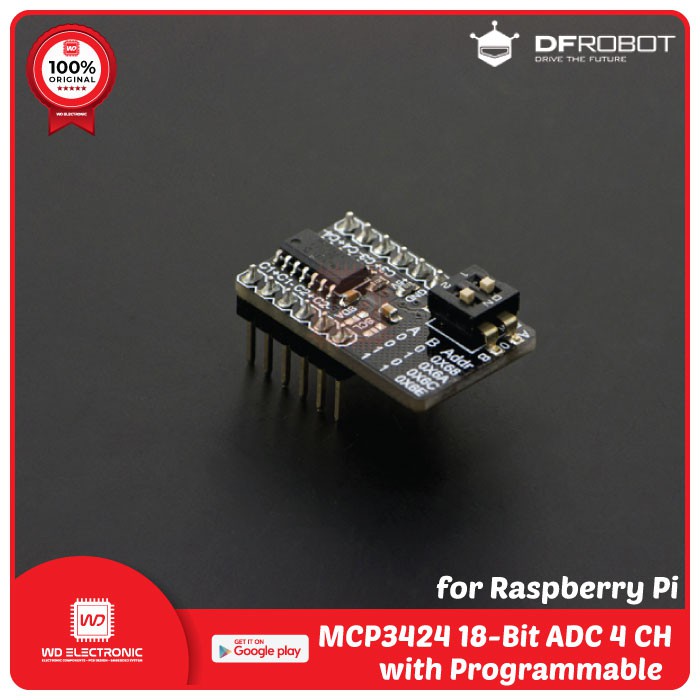

DFRobot MCP3424 18-Bit ADC 4 Channel with Programmable Gain Amplifier for Raspberry Pi

Detail DFRobot MCP3424 18-Bit ADC 4 Channel with Programmable Gain Amplifier for Raspberry Pi

Hi #RekanEasyWare ...
EasyWare Part#: EP000629

Siapa yang tidak kenal dengan brand DFRobot, brand robotic premium asal negeri Tiongkok. Banyak sekali yang dihasilkan produk dengan kualitas yang bagus. Patut antum coba.

The module integrates MCP3432 A/D converter chip. The module can provide analog input function for Raspberry Pi and provide high accuracy analog input for Arduino.
MCP3424 is one of the low noise and high accuracy 18-Bit delta-sigma analog-to-digital (ΔΣ A/D) converter family members of the MCP342X series. Its characteristic is:
Self calibration of internal offset and gain per each conversion.

Aplications :
- Temperature Sensing with RTD, Thermistor, and Thermocouple
- Bridge Sensing for Pressure, Strain, and Force
- Weigh Scales
- Battery Fuel Gauges

Spesifications :
- Operating Voltage: 2.7 - 5.5V
- Standy Current: 300nA （5V）
- Operating Temperature: -40°C ~ +125°C
- On-Board Voltage Reference: 2.048V ± 0.05%, Drift 15 PPM /°C
- On-Board Programmable Gain Amplifier (PGA): x1,x2,x4,x8
- Differential Input Full Scale Range: -2.048V / PGA ~ 2.048V / PGA (e.g., PGA=4, Range is -0.512 ~ 0.512V)
- Programmable Resolution: 12, 14, 16, 18bits
- Programmable Data Rate: 240, 60, 15, 3.75 SPS
- Gain Error: 0.05% (PGA = 1, 18bits)
- Offset Error: 15uV (PGA = 1, 18bits)
- Input Interface: 4 differential channels, PIN header of 2.54mm spacing
- Output Interface: I2C, PIN header of 2.54mm spacing
- Size: 27x16mm(1.06x0.63")

Package :
- 1x MCP3424 18-Bit ADC-4 Channel with Programmable Gain Amplifier for Raspberry Pi
