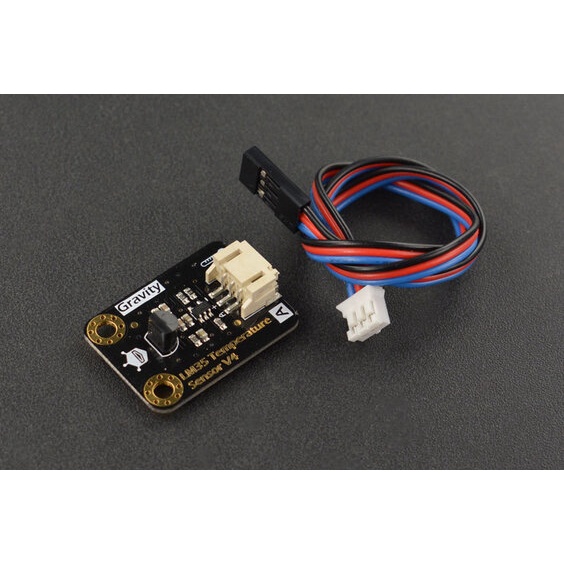

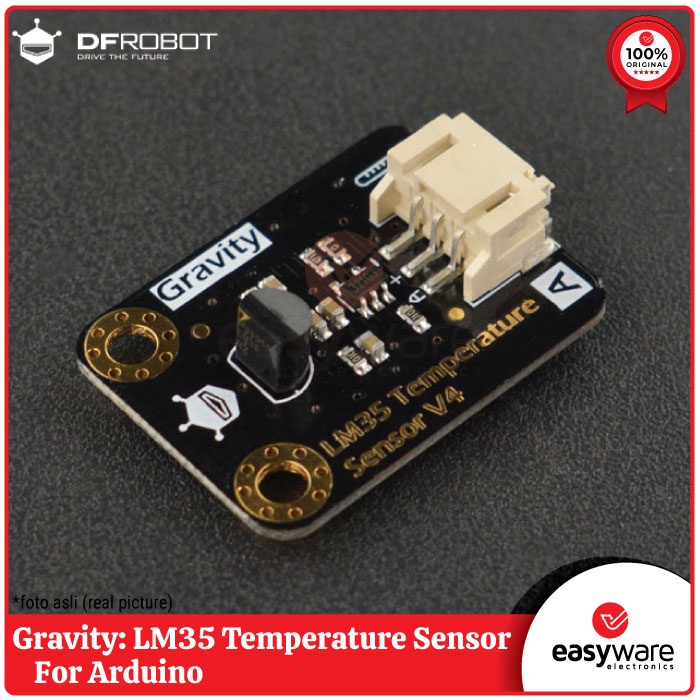

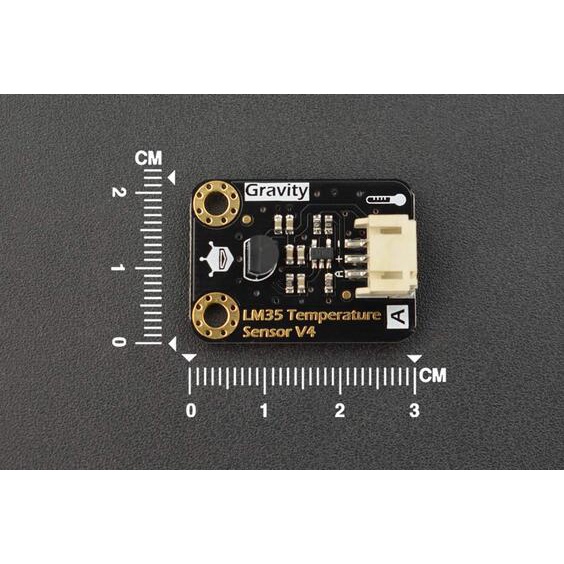

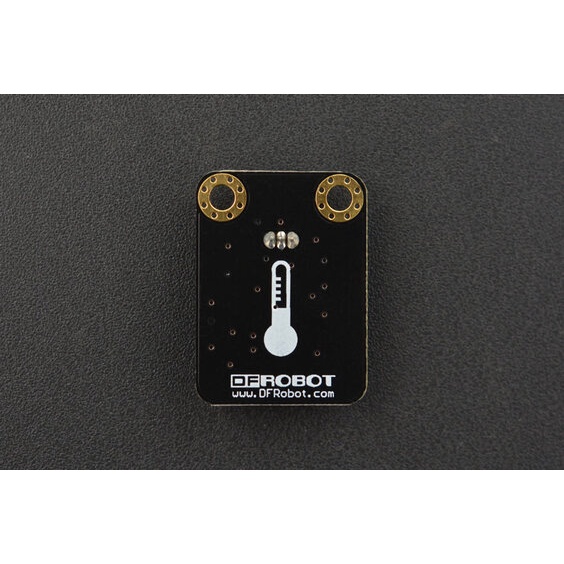

Detail DFRobot LM35 Temperature Sensor For Arduino Gravity LM35 Module
Hi #RekanEasyWare ... SKU: DFR0023

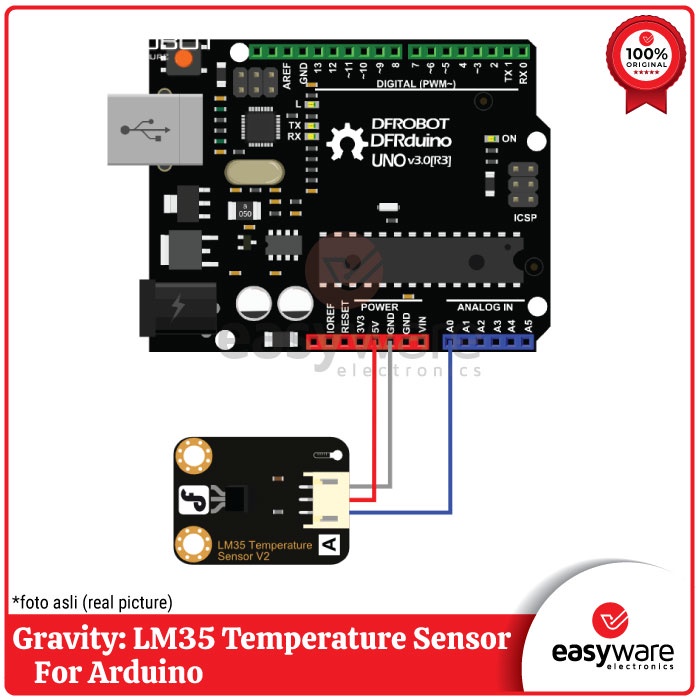

DFRobot LM35 Linear Temperature Sensor is based on the semiconductor LM35 temperature sensor. It can be used to detect ambient temperature. This sensor is produced by National Semiconductor Corporation and offers a functional range between 0 to 150℃. The sensitivity is 10mV/℃. The output voltage is proportional to the temperature. It is commonly used as a temperature measurement sensors. It includes thermocouples, platinum resistance, thermal resistance and temperature semiconductor chips, which are commonly used in high temperature measurement thermocouples. Platinum resistance temperature modules are used in measurements of 800 degrees Celsius, while the thermal resistance and semiconductor temperature sensor suitable for measuring the temperature of 100-200 degrees or below. In this type of application the semiconductor temperature sensor has good linearity and high sensitivity. The LM35 linear temperature sensor and sensor-specific expansion of Arduino board, can allow for quick and easy plug and play and reliable data.
Features : - Based on the semiconductor LM35 temperature sensor - Can be used to detect ambient air temperature
