DFRobot Gravity Analog Water Pressure Sensor Non-immersible

Detail DFRobot Gravity Analog Water Pressure Sensor Non-immersible

Hi #RekanEasyWare ...
EasyWare Part#: EP000301

This is a water pressure sensor adopts DFRobot Gravity 3-pin interface. It supports standard 5V voltage input and 0.5~4.5V linear voltage output. It is compatible with multiple Arduino controllers. Coordinate with a DFRobot Gravity IO Expansion Shield, the water pressure sensor can be plugged into an Arduino board, wiring-free. Put it with Solenoid Valve, Water Turbine Generator and other sensors, you can build a smart water control system. You may also check Liquid Sensor Selection Guide to get better familar with our liquid sensor series.

Briefly speaking, this water pressure sensor is a stethoscope to a water pipe. It will help you to diagnose whether there is water, how strong the water pressure is. It can be widely applied to smart home control systems (SCS), Internet of Things (IoT) and device detections.

Spesifications :
- Medium: liquid/gas without corrosion
- Wiring: Gravity-3Pin (Signal-VCC-GND)
- Pressure Measurement Range: 0~1.6 Mpa
- Input Voltage: +5 VDC
- Output Voltage: 0.5~4.5 V
- Measurement Accuracy: 0.5%~1%FS (0.5%, 0~55°C)
- Threadably: G1/4
- Adapter: G1/2 to G1/4
- Waterproof level: IP68
- Operating Temperature: -20~85°C
- Response Time: <2.0 ms
- Quiescent Current: 2.8 mA
- Normal Operating Pressure: ≤2.0 Mpa
- Damaged Pressure: ≥3.0Mpa
- Service Life: 10’000’000 times

Package :
- 1x Gravity: Analog Water Pressure Sensor
- 1x G1/2 to G1/4 Connector (mounted)

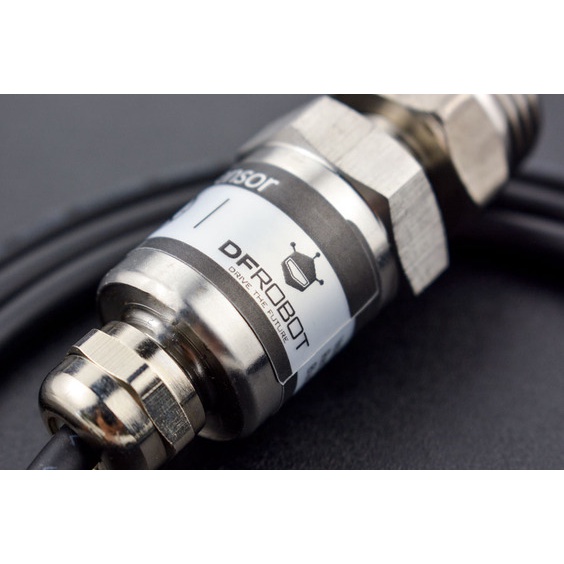

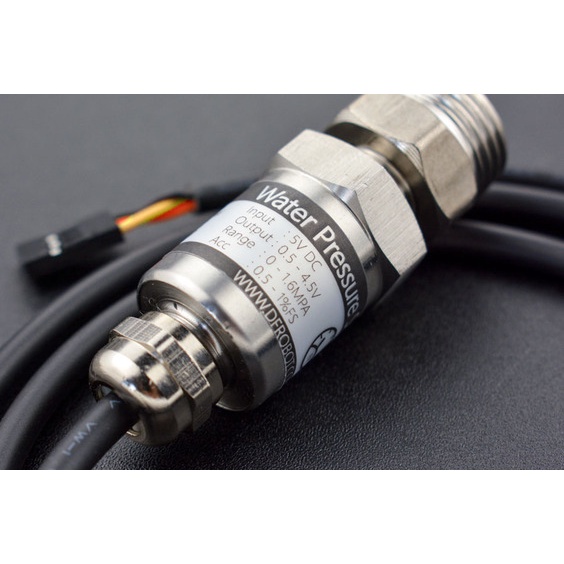

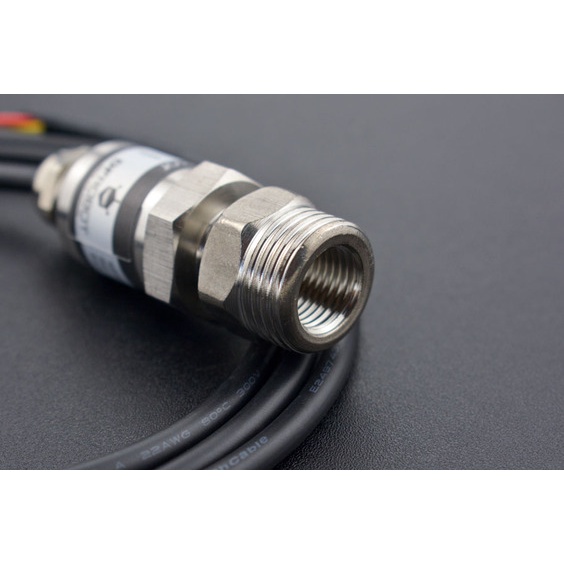

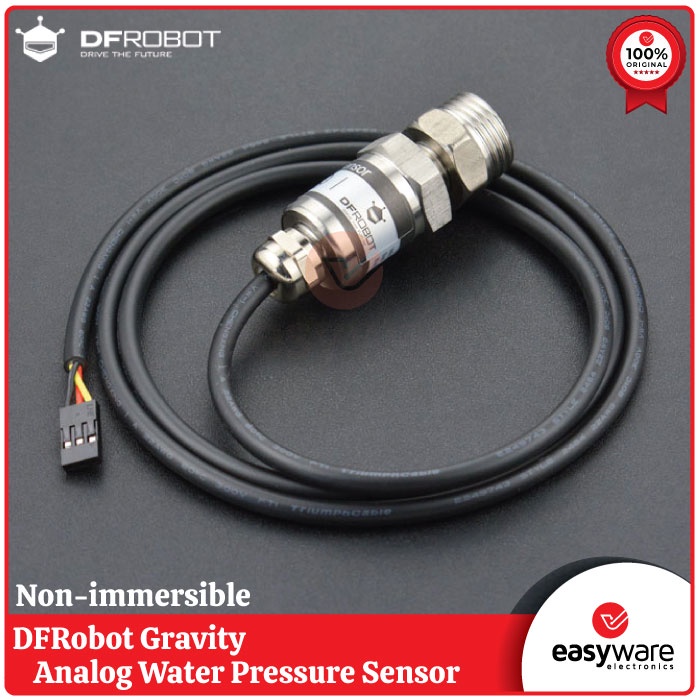

Gambar produk
