DFRobot Gravity Analog ORP Sensor Meter for Arduino

Detail DFRobot Gravity Analog ORP Sensor Meter for Arduino

Hi #RekanEasyWare ...
SKU: SEN0165


ORP (Oxidation-Reduction Potential) is a measure of the ability of oxidation and reduction of aqueous solution, characterization of oxidizing or reducing the relative degree. Unlike a pH measurement that follows a logarithmic curve and therefore requires more calibration adjustments, ORP follows a linear relationship and does not need instrument adjustment as much as it needs electrode maintenance. ORP has proven to be a reliable method of measuring water quality and provides the operator with a single value of measurement regardless of which product, commodity, operation, treatment or sanitizer is used, and regardless of varying field conditions or method by which chemical is applied.

APLIKASI :
- Water Quality Testing
- Aquaculture
- Marine Science
- Hydroponic Gardening
- General Chemistry

SPESIFICATIONS :
- Module Power: +5.00V
- Module Size: 40mmX27mm(1.57"x1.06")
- Measuring Range:-2000mV—2000mV
- Suitable Temperature:5-70℃
- Accuracy:±10mv (25 ℃)
- Response Time: ≤20sec

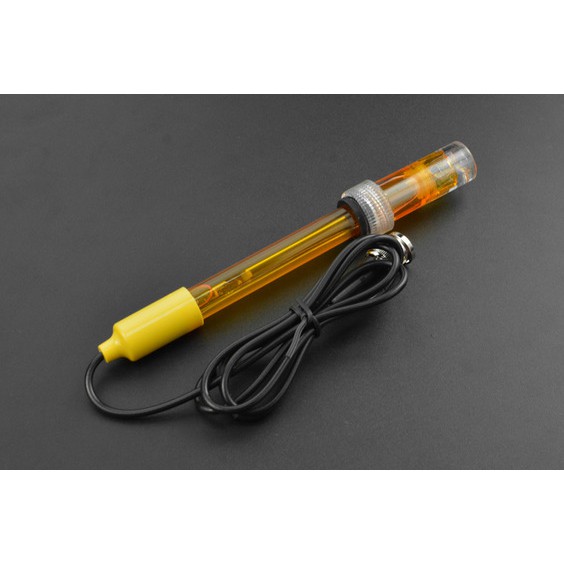

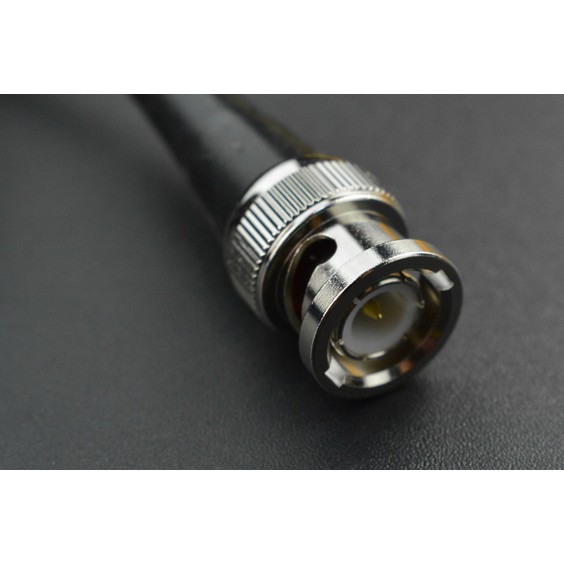

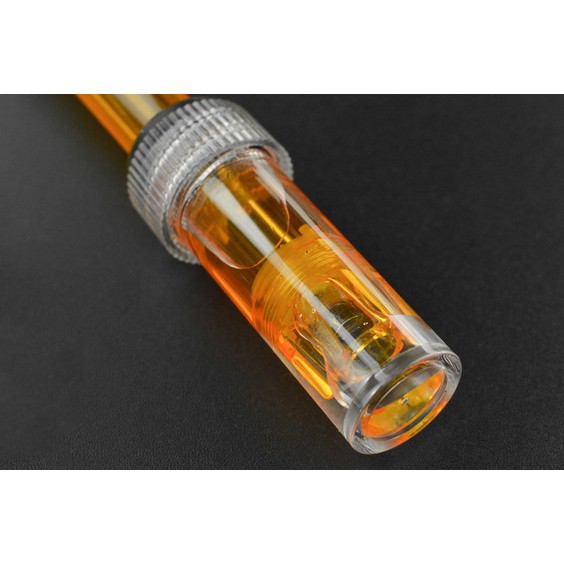

- ORP Probe with BNC Connector
- PH2.0 Interface (3 foot patch)
- Zero calibration button
- Power Indicator LED

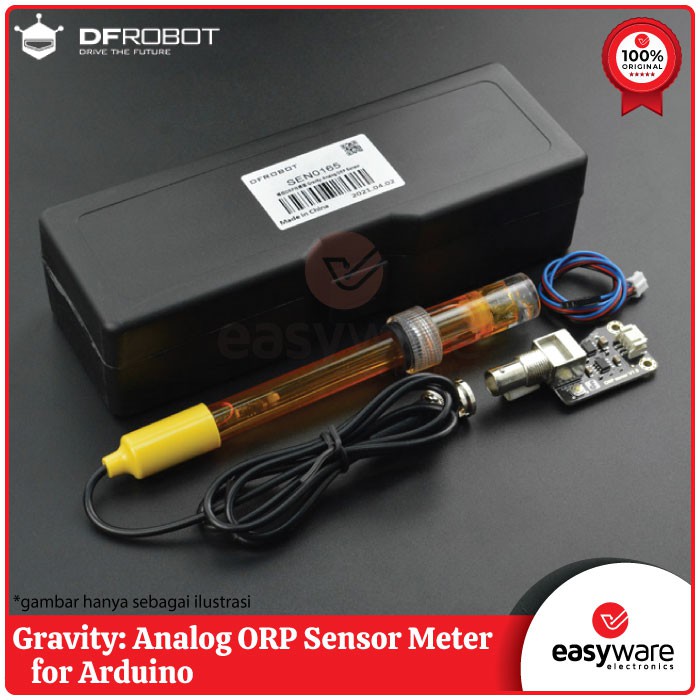

PACKAGE :
- ORP probe (BNC connector) x1
- ORP probe circuit board x1
- Analog cable x1

Gambar produk
