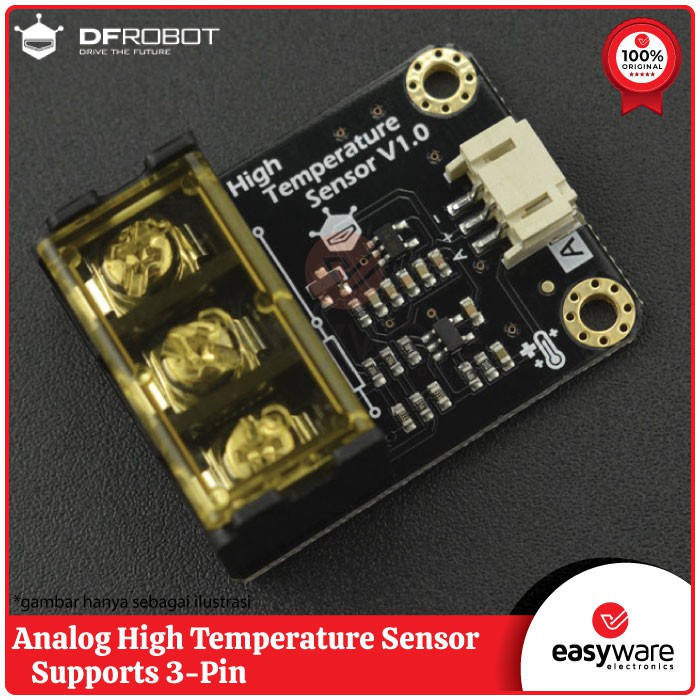

DFRobot Gravity Analog High Temperature Sensor PT100 Probe

Detail DFRobot Gravity Analog High Temperature Sensor PT100 Probe

What sensor should you use when you need to measure temperature? Most people will think of a DS18B20 temperature sensor first, but this sensor is only capable of measuring temperatures up to 125C. In order to measure temperatures greater than 100C you will need something with a greater temperature range and resistance. This is the sensor you need! We have used a PT100 resistance type high temperature probe which is often used in industrial applications. Using this probe you can measure a temperature range between 30-350C. The module itself is compatible 3.3V-5.5V supply, so Arduino, STM32 and other microcontrollers are compatible.

FEATURES :
- Supports 3-Pin "Gravity"
- interfaceAnalog output

SPESIFICATIONS MODULE :
- Operating voltage: 3.3V-5.5V
- Analog output voltage: 0.2V-2.8V
- Working temperature range: 30-350C
- Relative Error: ±2% F.S.
- Interface: PH2.0-3P

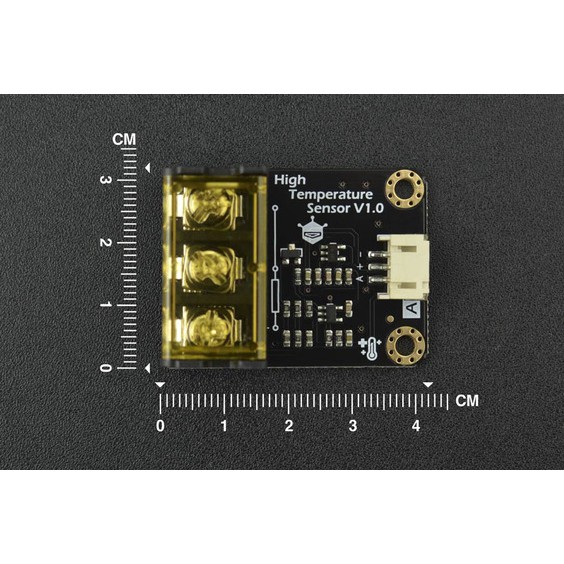

- Size: 42 * 32 * 18 mm/ 1.65 * 1.26 * 0.7 inches
- Waterproof: No

SPESIFICATIONS PROBE :
- Probe Working temperature: -20-400C
- Sheathing Tolerance: up to 200
- Length: 2m
- Precision: 0.5C
- Waterproof: Yes

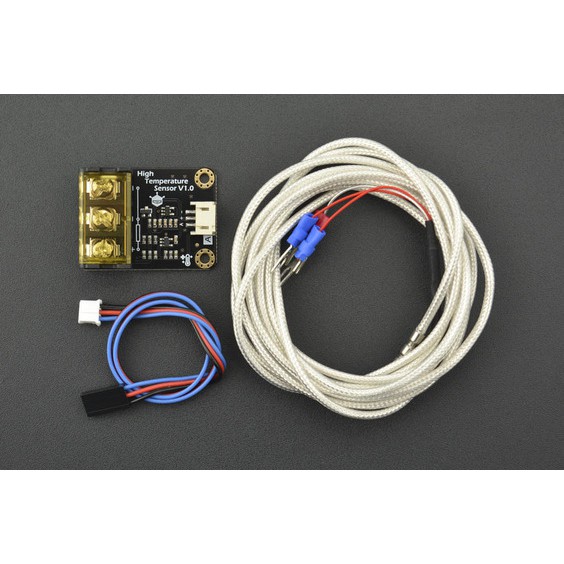

PACKAGE :
- Analog High Temperature Sensor Module x1
- PT100 Probe x1
- Analog Sensor Cable x1
