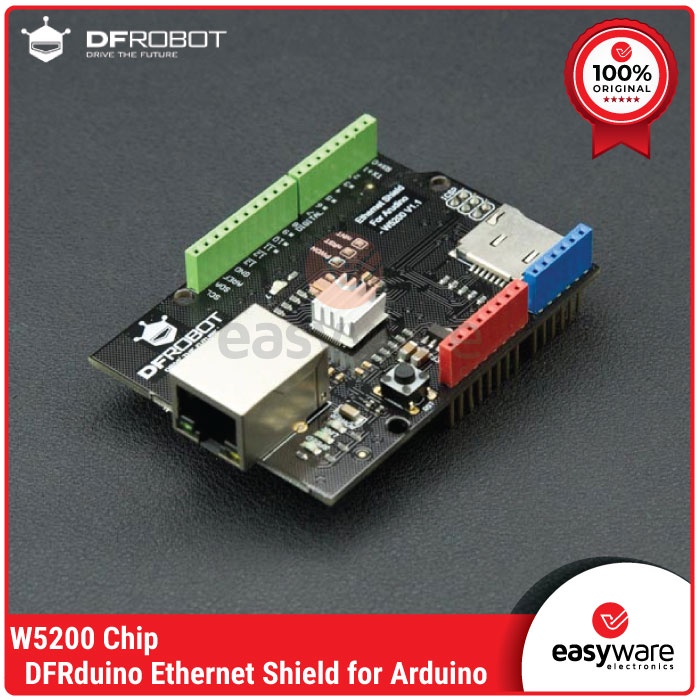

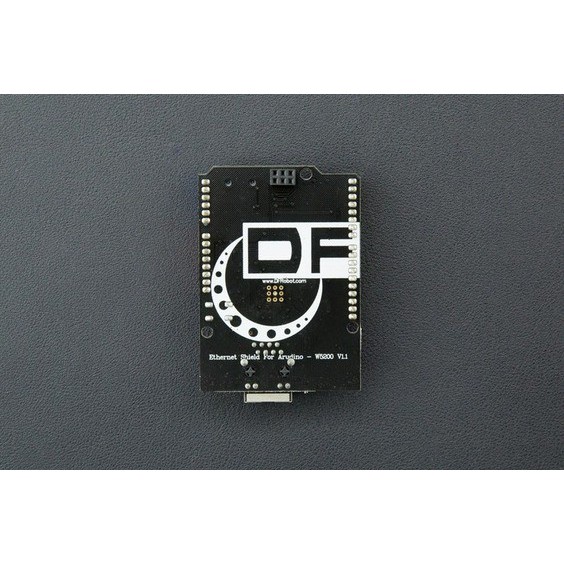

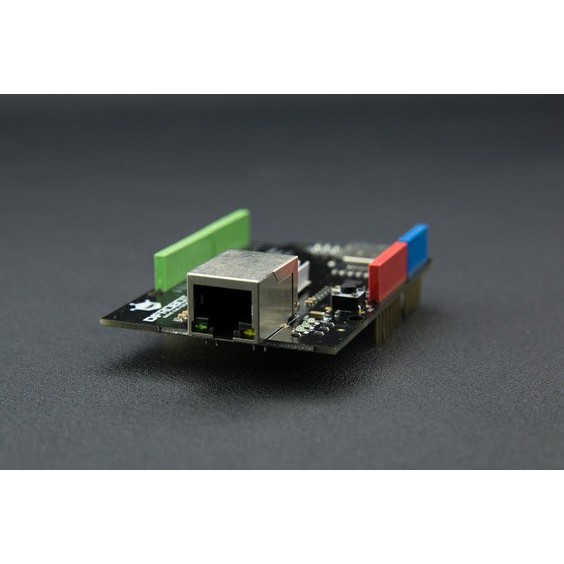

DFRobot Ethernet Shield for Arduino - W5200 DFRduino Ethernet Shield

Detail DFRobot Ethernet Shield for Arduino - W5200 DFRduino Ethernet Shield

Hi #RekanEasyWare ...
EasyWare Part#: EP000073


Connect your Arduino device to the Internet with this Ethernet Shield. This Ethernet Shield is based on the W5200 Ethernet Chip and provides an easy way of getting your Arduino Online. Just plug this shield onto your Arduino UNO or Mega board, connect it to your network with an RJ45 Ethernet Cable (not included) and follow few simple instructions, you will be able to explore the world with the Internet. Besides, the shield has a microSD card port for large capacity data storage like Webpage data when applied in complicated applications.

The W5200 chip is a Hardwired TCP/IP embedded Ethernet controller that enables easier internet connection for embedded systems using SPI (Serial Peripheral Interface). W5200 suits best for users who need Internet connectivity for the application that uses a single chip to implement TCP/IP Stack, 10/100 Ethernet MAC, and PHY.

Spesifications :
- Support Hardwired TCP/IP Protocols: TCP, UDP, ICMP, IPv4 ARP, IGMP, PPPoE, Ethernet
- Supports 8 independent sockets simultaneously
- Support Power down mode
- Support Wake on LAN
- Support High Speed Serial Peripheral Interface (SPI MODE 0, 3)
- Internal 32Kbytes Memory for Tx/Rx Buffers
- 10BaseT/100BaseTX Ethernet PHY embedded
- Support Auto Negotiation (Full and half duplex, 10 and 100-based )
- Support Auto MDI/MDIX
- Support ADSL connection (with support PPPoE Protocol with PAP/CHAP Authentication mode)
- 3.3V operation with 5V I/O signal tolerance
- Multi-function LED outputs (Full/Half duplex, Link, Speed)

Package :
- 1x DFRduino Ethernet Shield for Arduino - W5200

Gambar produk
