DFRobot Analog Dissolved Oxygen Sensor Meter Kit For Arduino

Detail DFRobot Analog Dissolved Oxygen Sensor Meter Kit For Arduino

Hi #RekanEasyWare ...
EasyWare Part# : EP000008

- SKU: SEN0237-A

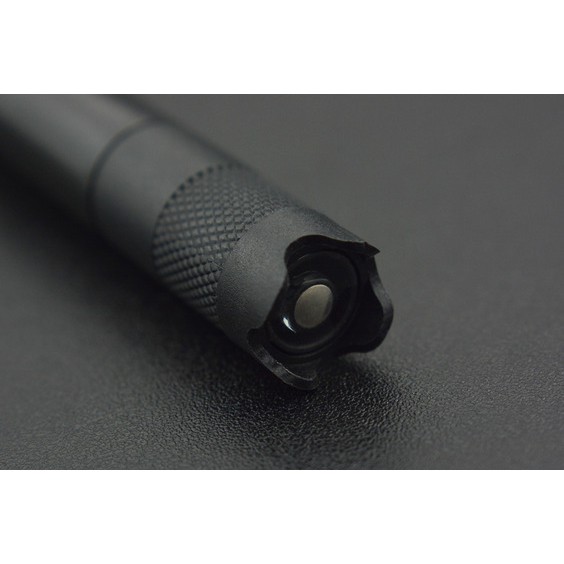

FEATURES Dissolved Oxygen Probe
- Galvanic probe, no need polarization time
- Filling solution and membrane cap is replaceable, low maintenance cost

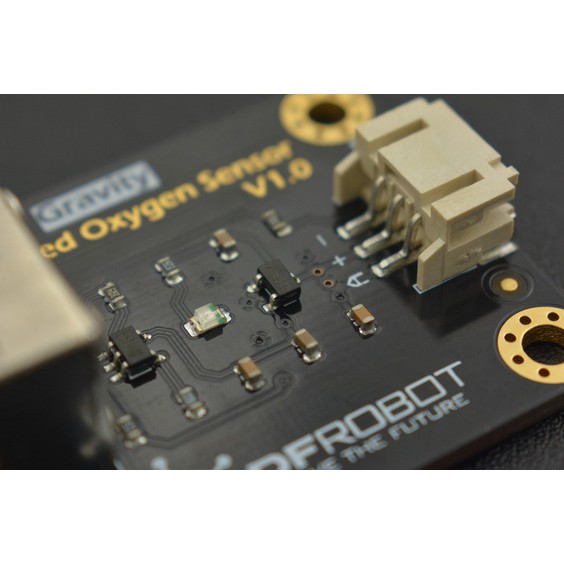

FEATURES Signal Converter Board
- 3.3~5.5V wide-range power supply, compatible with most Arduino microcontroller
- 0~3.0V analog output, compatible with all microcontrollers with ADC function.
- Gravity interface, plug and play, easy to use

SPESIFICATIONS Dissolved Oxygen Probe
- Type: Galvanic Probe
- Detection Range: 0~20mg/L
- Response Time: Up to 98% full response, within 90 seconds (25)
- Pressure Range: 0~50PSI
- Electrode Service Life: 1 year (normal use)
- Maintenance Period: Membrane Cap Replacement Period: 1~2 months (in muddy water); 4~5 months (in clean water) Filling Solution Replacement Period: Once every month
- Cable Length: 2 meters

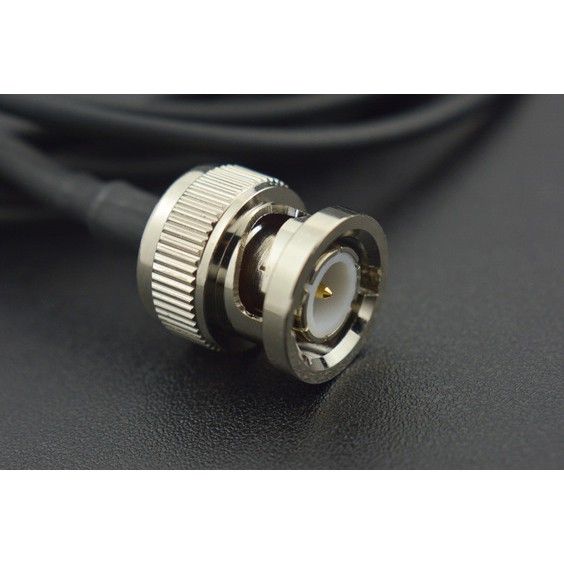

- Probe Connector: BNC

SPESIFICATIONS Signal Converter Board :
- Operating Voltage: 3.3~5.5V
- Output Signal: 0~3.0V
- Cable Connector: BNC
- Signal Connector: Gravity Analog Interface (PH2.0-3P)

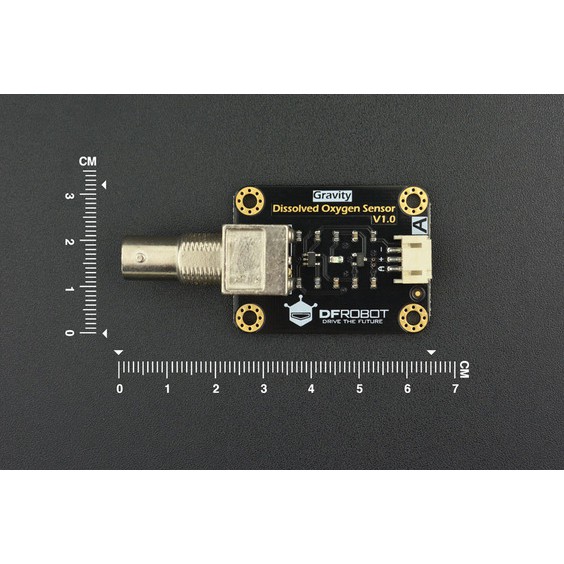

- Dimension: 42mm * 32mm

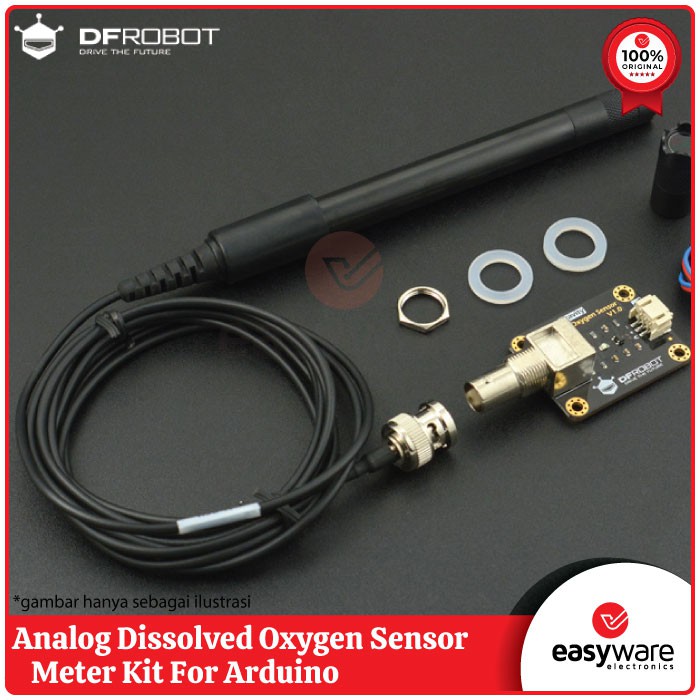

PACKAGE :
- Galvanic Dissolved Oxygen Probe with Membrane Cap x1
- Spare Membrane Cap x1
- Signal Converter Board x1
- Gravity Analog Sensor Cable x1
- Waterproof Gasket x2
- Screw Cap for BNC Connector x1
- Plastic Dropper x2

Gambar produk
