DFPlayer Mini MP3 Player Module Audio Modul Voice Arduino AVR ARM

Detail DFPlayer Mini MP3 Player Module Audio Modul Voice Arduino AVR ARM

SPECIFICATION:
Supported sampling rates (kHz): 8/11.025/12/16/22.05/24/32/44.1/48
24 -bit DAC output, support for dynamic range 90dB , SNR support 85dB
Fully supports FAT16 , FAT32 file system, maximum support 32G of the TF card, support 32G of U disk, 64M bytes NORFLASH
A variety of control modes, I/O control mode, serial mode, AD button control mode
Advertising sound waiting function, the music can be suspended. when advertising is over in the music continue to play
Audio data sorted by folder, supports up to 100 folders, every folder can hold up to 255 songs
30 level adjustable volume, 6 -level EQ adjustable
support the serial communications with Arduino.
DFPlayer is mono with SPK_1 and SPK_2.
stro (for earphone and amplifier) with DAC_R and DAC_L.

Review lainnya sudah banyak di internet, silahkan search via google...

Datasheet dan library :
http://www•dfrobot•com/image/data/DFR0299/DFPla...
http://www•dfrobot•com/wiki/index•php/DFPlayer_...
http://www•dfrobot•com/index•php?route=product/...

Arduino Library V2.0 :
https://github•com/Arduinolibrary/DFRobot_Mini_...
https://github•com/DFRobot/DFPlayer-Mini-mp3/ar...

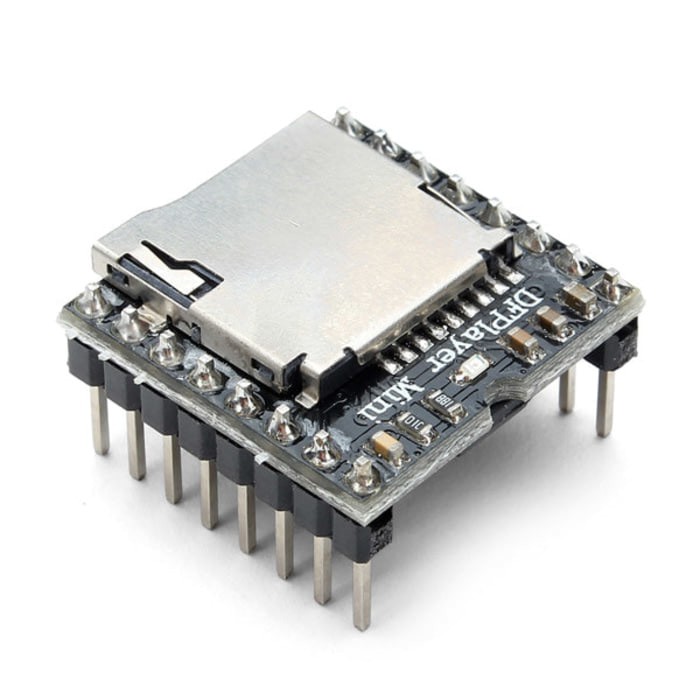

Gambar produk
