DFPlayer Mini MP3 Player Module MP3 Voice Audio Decoder Board Module Arduino Speaker Micro SD

Detail DFPlayer Mini MP3 Player Module MP3 Voice Audio Decoder Board Module Arduino Speaker Micro SD

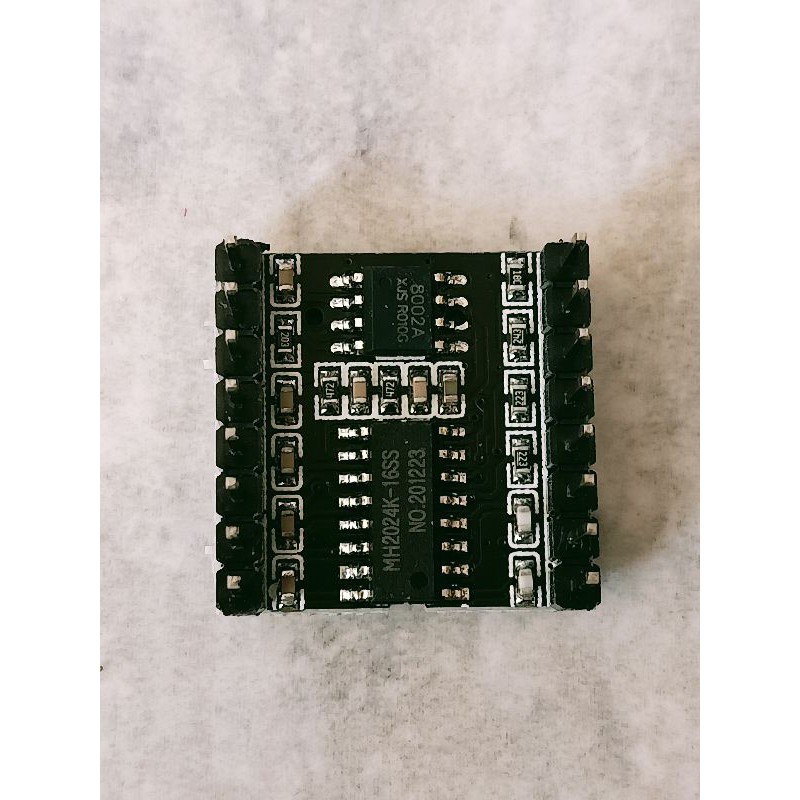

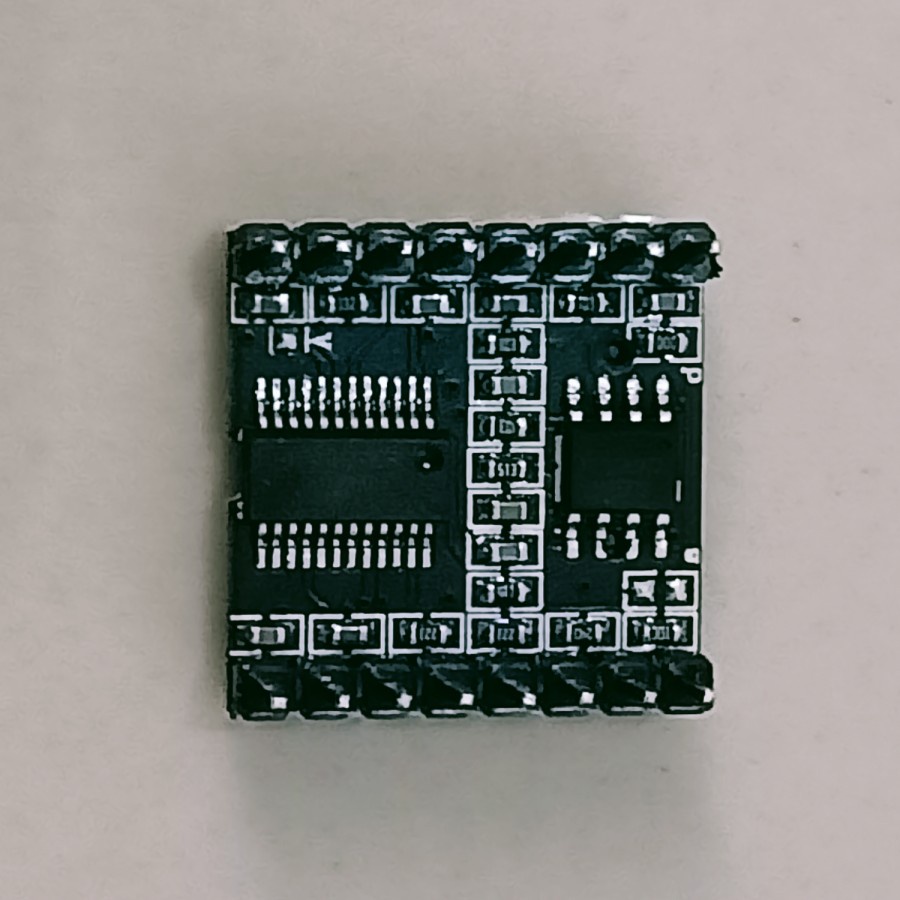

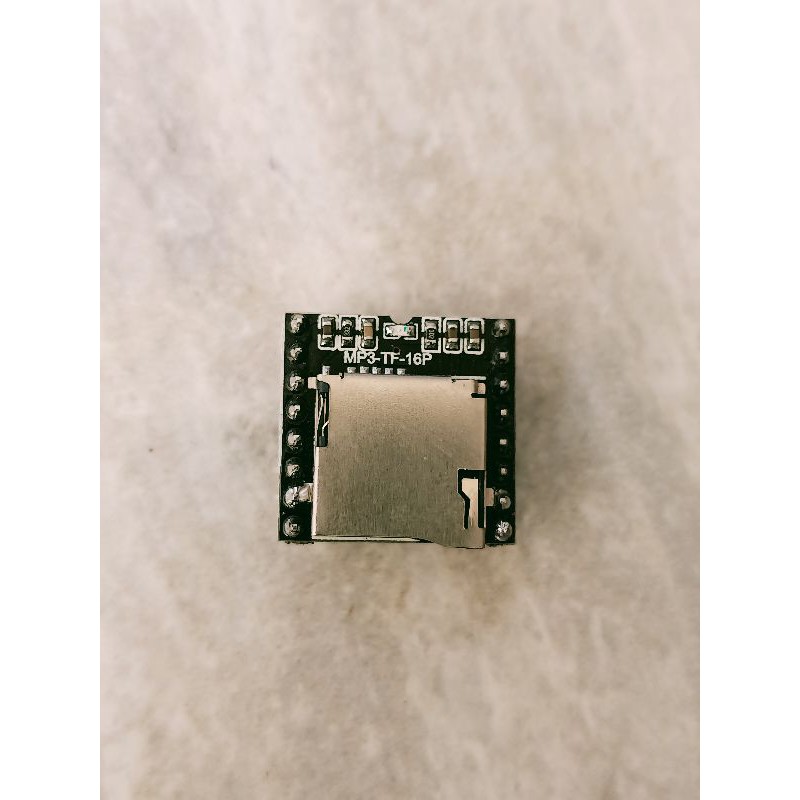

Stok saat ini IC24 (seperti gambar ke 3)

DFPlayer Mini MP3 Player Audio Module Arduino dapat memainkan file MP3, WAV, WMA dapat dipakai untuk Arduino maupun sebagai player mandiri (standalone) dan dapat disambung langsung ke speaker. DFPlayer memainkan lagu dari Micro SD up to 32 GB (FAT16/FAT32).

Detail Produk :
++ Support sampling rate (KHz): 8/11.025/12/16/22.05/24/32/44.1/48
++ 24-bit DAC output, dynamic range support: 90dB, SNR support: 85dB
++ Fully support FAT16 , FAT32 file system, maximum support 32G TF card, support 32G U disk, 64M bytes of NORFLASH
++ A variety of control modes are optional. IO control mode, serial port mode, AD button control mode
++ broadcast language insertion function, you can pause the background music being played. After the advertisement is finished, it will return to the background tone to continue playing.
++ The audio data will be sorted by folder. It supports up to 100 folders. Each folder can be assigned 255 tracks. The 7 and
30 levels are adjustable, and the 6-level EQ is adjustable

Application:
1. Car navigation voice
2. Road transport inspection and toll booth voice prompt
3. Railway station and bus station safety inspection voice prompt
4. Power, communication and financial office voice prompt
5. Vehicles enter and exit channel to verify voice prompt
6. Border voice prompts for border inspection
7. Multi-channel voice alarms or equipment operation guidance voices8
8. Safe sightseeing voices for electric sightseeing cars
9. Electromechanical equipment failure alarms
10. Fire alarm voice alerts
11. Automatic broadcasting equipment, timely broadcast

Gambar produk
