Dennos 7018B Head Unit Double Din 7 Inch Bluetooth Audio Car MP3 MP5 Player In Touch Screen Radio
Deskripsi singkat
Otomotif > Aksesoris Interior Mobil > Navigasi & AV Receiver > Dennos 7018B Head Unit Double Din 7 Inch Bluetooth Audio Car MP3 MP5 Player In Touch Screen Radio
- Pengiriman Ekspres
- Barang yang diperiksa
- Bayar di tempat berlaku
- Kualitas, Prestise
- Pengembalian produk
- Dukung pembuatan faktur
Produk Terkait
Detail Dennos 7018B Head Unit Double Din 7 Inch Bluetooth Audio Car MP3 MP5 Player In Touch Screen Radio
Video perkenalan produk Dennos 7018B Head Unit Double Din 7 Inch Bluetooth Audio Car MP3 MP5 Player In Touch Screen Radio. Sumber: Shopee.
Supports advanced audio distribution profile
Off time display function
Digital high-quality FM stereo radio
Preset 18 stations ( frequency: 87.5-108 MHz )
Support USB / SD / MMC card reader
Support Audio: MP3 / WMA / APE / FLAC / WAV etc.
Support folder function
Support breakpoints and ID3 Play
Support remote control
Rotary volume control
MP3 randomized, 10 track up / down playback
Electronic control volume treble, bass, balance and fader
Multiple EQ scene selection: Jazz, rock, pop, classical, etc.
Mute and loud control

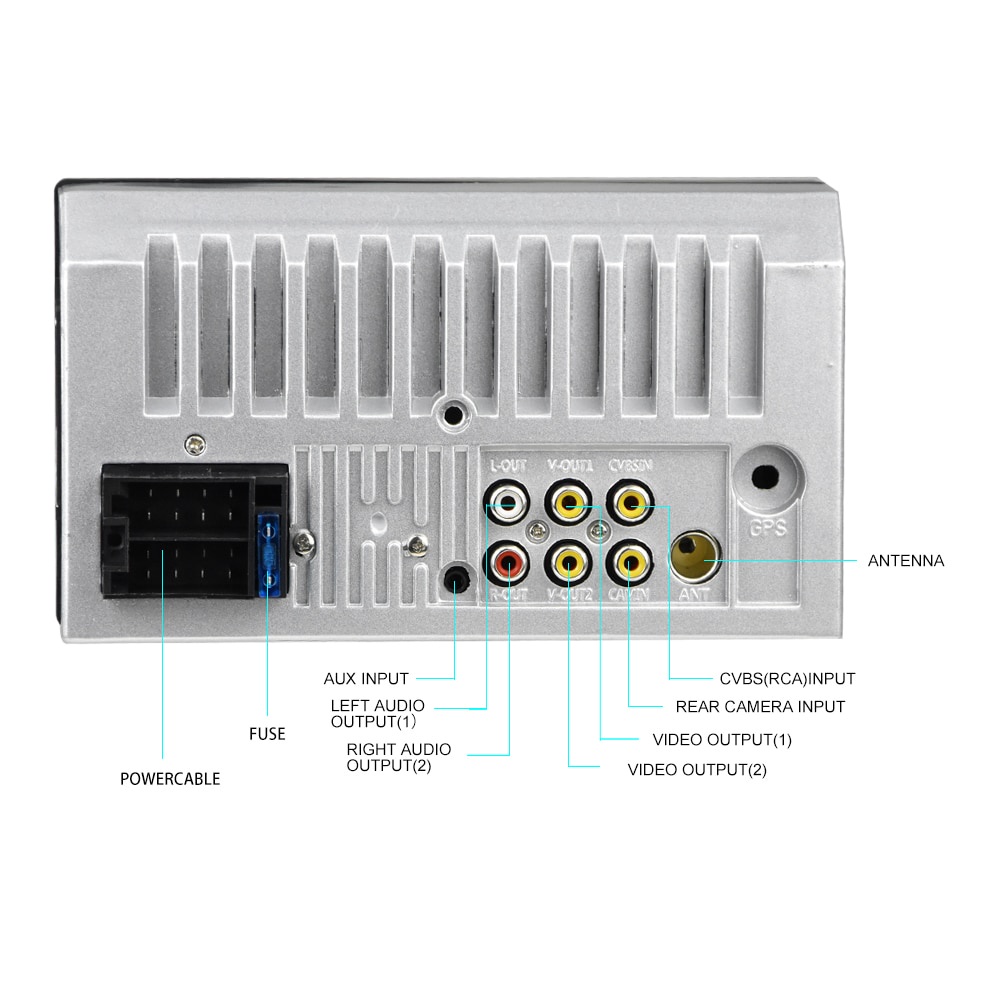

L / R RCA audio output jacks
4-channel high power output ( 4 loud speaker )
Support modes: BT / APE / WAV / WMA / MP3 / FM
The remote control battery (not included): CR2025 3V
Power Supply: 12V Machine(11 - 16V)
Important notice before installation:
Yellow line (for memory wire) connected to the battery constant current positive, the machine will have memory function.
Red line pick the key to the ACC line, this line is also positive, control power switch. Black wire connected to the negative power supply.
Blue line connected lift the antenna or subwoofer REM control line, if not have do not connected, wrapped up with rubberized fabric.
The remaining eight wires(gray white green purple) are speaker line, a group of colors corresponding to a pair of speaker lines (positive and negative).
Please pay attention to check whether the original car speaker cable if contact iron (the original car speaker wire welding to the metal, or a speaker only a line thow out, called contact iron). contact iron will cause our high-power machine without sound, please test it with a multimeter before install, if contact iron, please disconnect and then install.
Gambar produk
