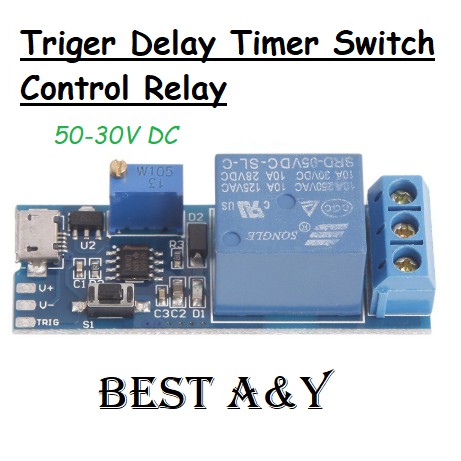

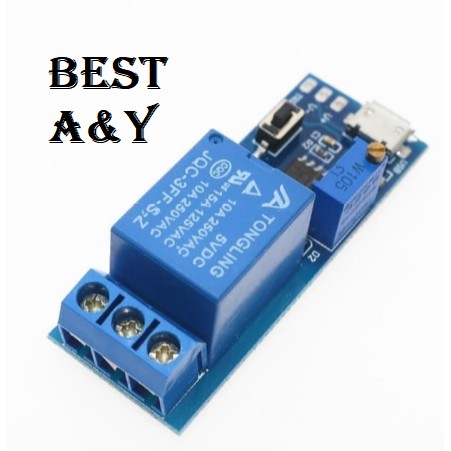

Delay Relay Timer Module Trigger Delay Switch Micro USB Power 5-30v out 10A 250VAC

Detail Delay Relay Timer Module Trigger Delay Switch Micro USB Power 5-30v out 10A 250VAC

Yuk buruan diorder !!!

Order sebelum jam 2 siang ya supaya bisa di kirim di hari yang sama. (kecuali hari minggu libur pengiriman)

Delay Relay adalah Relay yg beroperasi sesudah jeda waktu yang ditentukan (bisa diset).
Berfungsi seperti timer yang mengatur jeda waktu menghidupkan / mematikan peralatan.

Setting Waktu Jeda (Delay):
- Waktu jeda bisa distel dari 0-24 detik (Default Pabrik), jika perlu waktu lebih lama, cukup ganti kapasitor yg lebih besar (C2) atau potensiometer nya.
- Rumus waktu jeda: T = 1.1*R*C
- Contoh: Resistor 1M, Capacitor 22uF, maka T = 1.1 * 0. = 24.2 detik

Parameter:

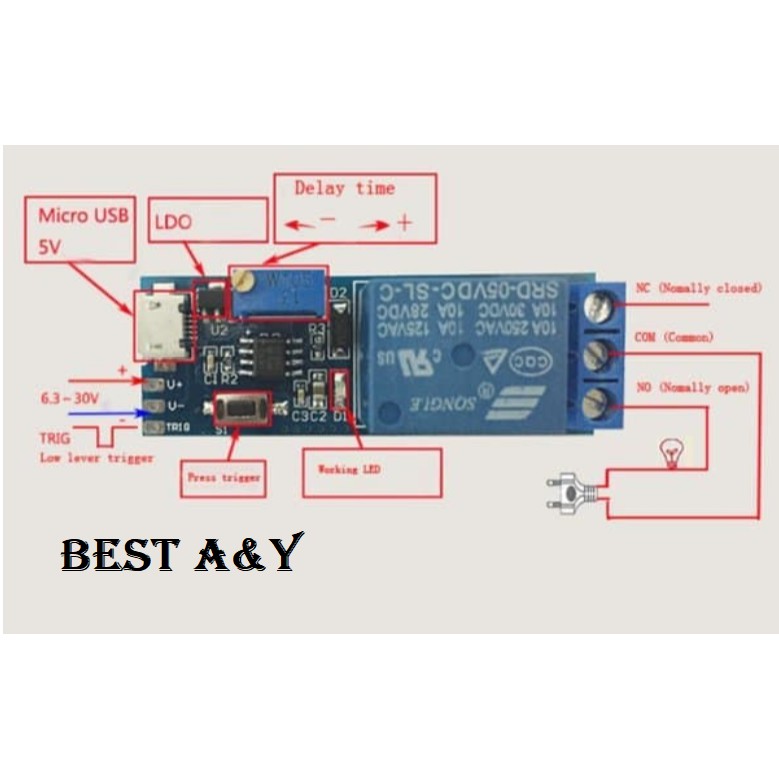

1. Working voltage: Wide-voltage 5-30V, two power supply terminal or the interface MicroUSB KF301
2. Operating mode: power supply, the output of the module status: normally open (NO) and the common terminal (COM) open, normally closed (NC) and the common terminal (COM) is turned on.
Originating outside the contact (TRIG) to a low pulse signal, or touch button to trigger instant, and relay, work lights, and the status of the relay output: normally open (NO) and the common terminal (COM) is turned on, normally closed (NC) and the common terminal (COM) is disconnected after 0-24 seconds (this time can be adjusted according to your needs) relay is switched off after the bell, then relay back to the state before the trigger.
3. The time can be adjusted by potentiometer, default 0-24 seconds. If you need more time, may be replaced by the larger capacitor (C2) or potentiometer. Delay time formula: T = 1.1RC. For example: Capacitor 22uf resistance 1M T = 1.1 * 0. = 24.2 seconds.
4. With relay indicator.
5. Control: 10A 250VAC (AC), 10A 30VDC (DC) or less load.
6. Has freewheeling protection relay.
7. signal terminal block has a pull-up and design of the filter circuit, anti-jamming capability, suitable for industrial control. Many manufacturers have added optocoupler isolation, but with the trigger signal to the module and not isolation, would not achieve the interference effect. After the test was found to improve the stability of the trigger end to interference, whether in this module under electromagnetic interference environment, or through instant power module, the relay will not malfunction.
8. Size: 5.4 * 1.9 * 1.8cm (L * W * H)
9. Weight: 16g

Applications:
1. The anti-theft alarm delay, building sound and light control lamp switch.
2. Delay-vehicle device is turned on, when the car ignition to prevent excessive current burn-vehicle equipment.
3. The need to have in order to start the occasion, prevent multiple devices simultaneously starting current is too large burning appliances.
