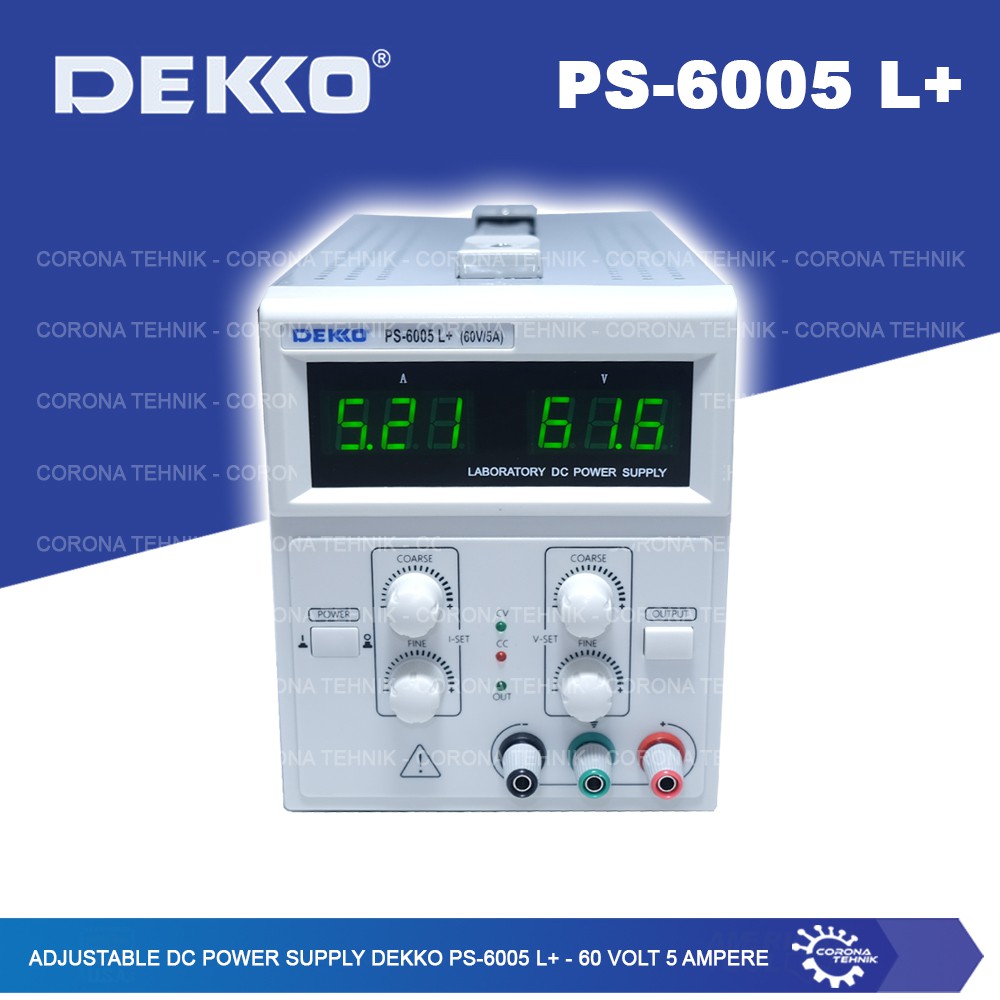

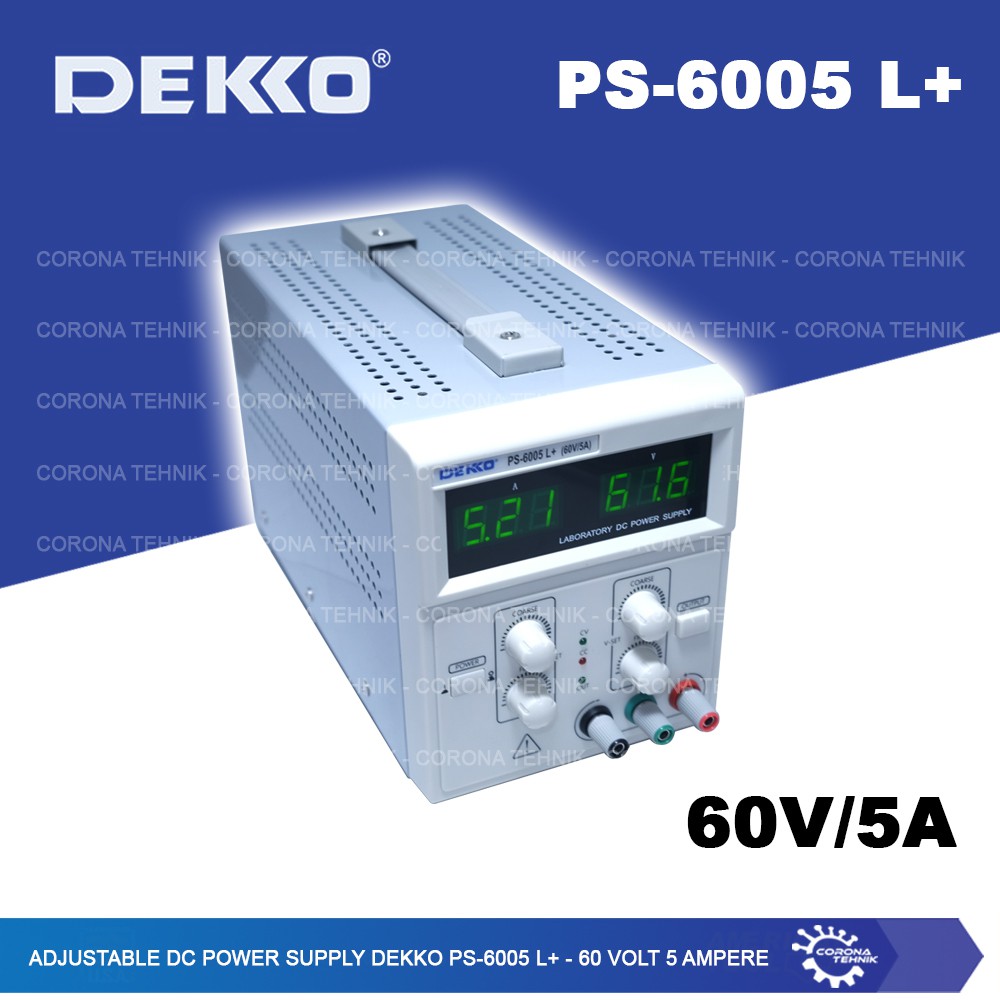

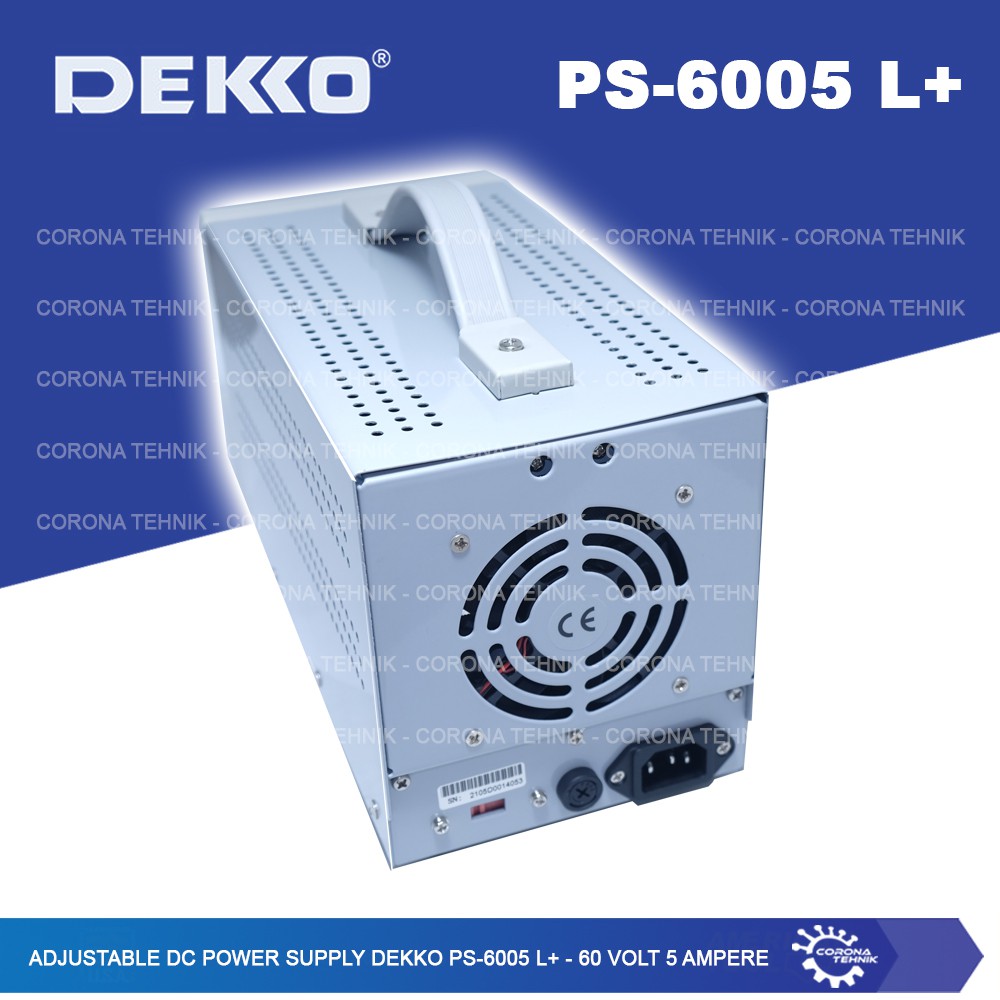

Dekko PS-6005 L+ - Adjustable DC Power Supply - 60 Volt 5 Ampere

Detail Dekko PS-6005 L+ - Adjustable DC Power Supply - 60 Volt 5 Ampere

Adjustable DC Power Supply Dekko PS-6005 L+ - 60 Volt 5 Ampere

Single channel adjustable DC power supply is an economical linear DC power supply with high quality and high stability, which is widely used in laboratory, school and production line.
In each gear, the output voltave und current can be adjusted continuously thourgh coarse and fine tune within measure range
The output voltage value and output current value can be rend necurately and respectively on the display window.
With a modern circuit design, this instrument can be used as a stable voltage source, also a stable current source.

Package List :
1 Single Channel Adjustable DC Power Supply
1 Power Cord
1 Test Lead


Parameter :

Model : PS-6005L+
Input Voltage : AC 220V/110V +/- 10% 50Hz/60Hz
Fuse 110V AC : 5A
Fuse 220V AC : 8A
MAX Input Power : 305 W
Rated Output Voltage : 0-60V
Rated Output Current : 0-5A
Load Regulation Rate Voltage : <0.02% + 6mV
Power Regulation Rate Voltage : <0.02% + 6mV
Power Regulation Rate Current : <0.02% +- 1 digits
Setup Resolution Voltage : 10 mV
Setup Resolution Current : 10 mA
Setup Accuracy : <0,2% + 2 digits (Environment temperature 23 Celcius +/- 5 Celcius)
Readback Resolution : 10mV/10mA
Readback Accuracy : <0,2% + 2 digits (Environment temperature 23 Celcius +/- 5 Celcius)
Ripple Voltage : <2mVrms
Ripple Current : 5mArms
Temperature Coefficient : 300ppm/Celcius
Max. Output Voltage : 61.5V +/- 0,5V
Max. Output Current : 5.20A +/- 0.05A
Working Conditon : Temperature 0 Celcius - 40 Celcius Relative Humidity < 80%
Storage Conditon : Temperature -15 Celcius - 70 Celcius Relative Humidity < 80%
Cooling Method : Smart Air Cooling
Net Weight : 6.4 Kg
Gross Weight : 7.0 Kg
Size (WxHxD) : 280mm*130mm*160mm
