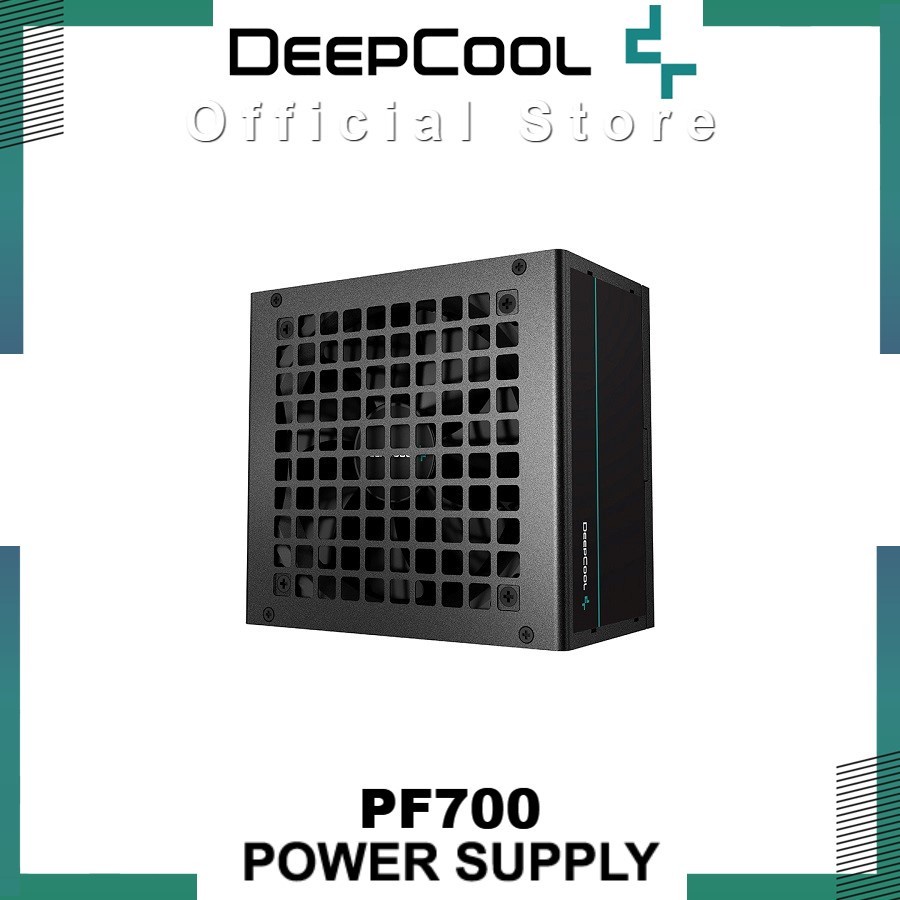

Deepcool Power Supply PF700 (Flat Cable) 700W

Detail Deepcool Power Supply PF700 (Flat Cable) 700W

The DeepCool PF Series Power Supply Unit offers safe and stable power performance with reliable 80 PLUS Standard efficiency and affordable pricing.

TO HIGHER STANDARDS

Certified for 80 PLUS 230V EU Standard efficiency that ensures 85% efficiency under typical loading of 50%. Better efficiency translates into lower energy waste and lower temperatures for more cost savings.

SILENT HYDRAULIC BEARING FAN

Optimally balanced for low-noise performance, the 120mm fluid bearing fan improves overall life expectancy and reduces friction and vibration.

FLAT BLACK CABLES

Stealthy and flexible, the fixed flat black cables are easy to maneuver for cable management while also taking up less space in your system.

RELIABLE PROTECTION

Shield against potential risk and damage with overpower, over voltage, and short circuit power protection.

Technical Spec

Type ATX12V V2.4

Product Dimensions 150×140×86mm (W x L x H)

80PLUS Certifications 230V EU White

Fan Size 120mm

Fan Bearing Hypro Bearing

Topology Active PFC+Double tube forward

Capacitors Taiwan bulk capacitor

Power Good Signal 100-500ms

Hold Up Time ≥12ms(75% Load)

Efficiency ≥85% Under Typical Load(50% Loading)

Protection OPP/OVP/SCP

Operation Temperature 0-40°C

Regulatory CB/CCC/CE/UKCA/EAC/RCM

Erp Regulation ErP 2010

MTBF 100,000 Hours
