DDS Low Frequency Signal Generator DIY Triangular Wave

Detail DDS Low Frequency Signal Generator DIY Triangular Wave

DDS Low Frequency Signal Generator DIY Triangular Wave

Ready Stok langsung order saja
100% unit BARU
-----
Garansi quality CHECK sebelum kirim
GARANSI toko 1BULAN
-----
Dikirim dari JOGJA
Garansi packing AMAN (GRATIS bubblewrap/kardus)

Spesifications:
-The frequency range of DDS is: 1HZ-65534Hz . (Almost no distortion,  TL082 is used for the amplification part )
-High-speed frequency ( HS ) square wave: 1MHZ/2MHZ/4MHZ/8MHZ signal ;
 -The offset amplitude of the DDS signal can be adjusted separately through the two potentiometers ;
 -Signals generated by DDS : sine wave, square wave, sawtooth wave, reverse sawtooth wave, triangle wave, ECG wave and noise wave.
 -1602 LCD screen ;
 -Intuitive 5 keypad.
 -Step frequency value: 1 , 10 , 100 , 1000 , 10000Hz;
 -Automatically restores the last used configuration after power-up.
 -Offset is: 0.5pp-5Vpp
 -The amplitude is: 0.5Vpp-14Vpp
 -Output impedance: 20-200 ohms

Isi Paket:
1 x DDS Signal Generator
1 x Case
------
Terimakasih sudah mengunjungi toko kami
Kita tunggu orderannya ya

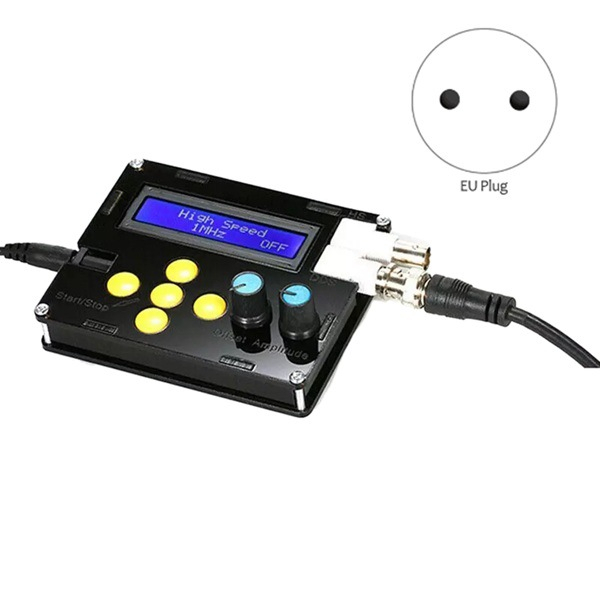

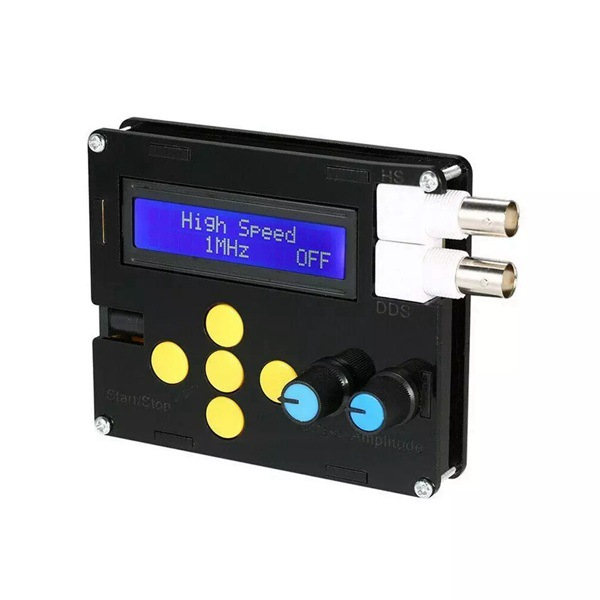

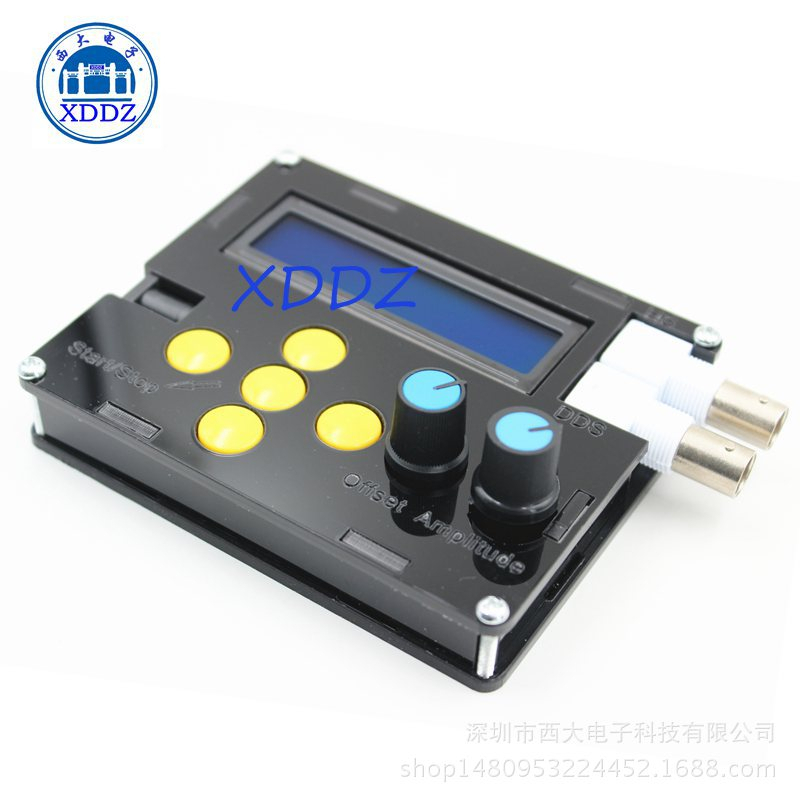

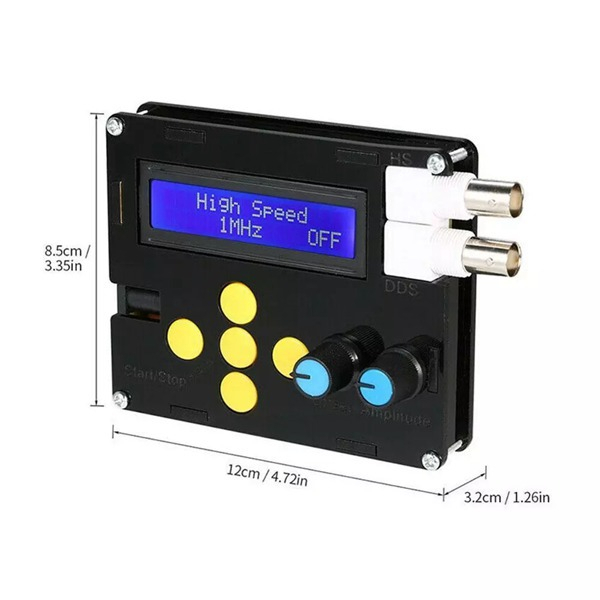

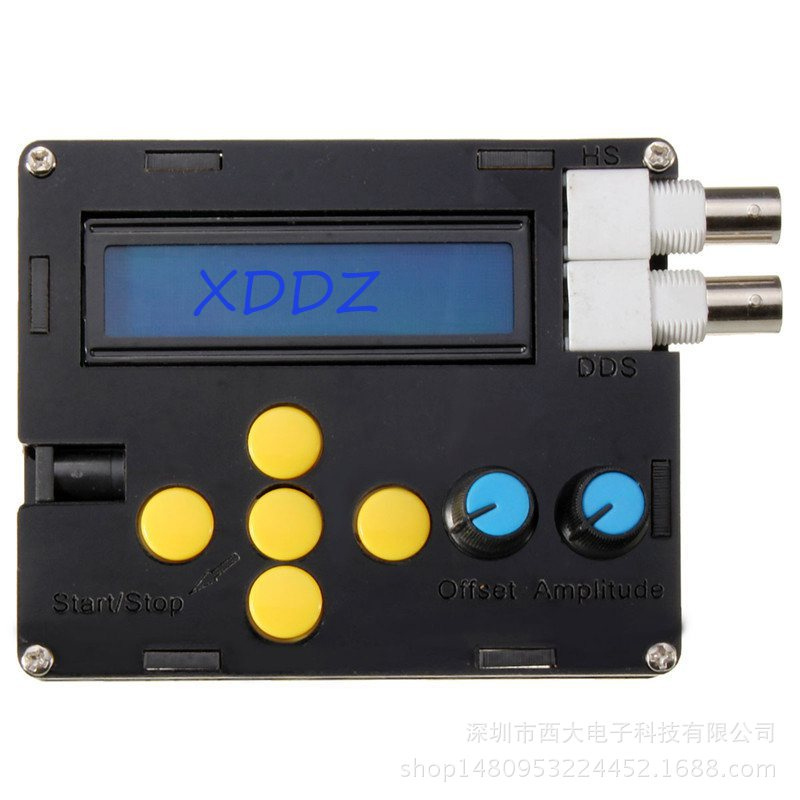

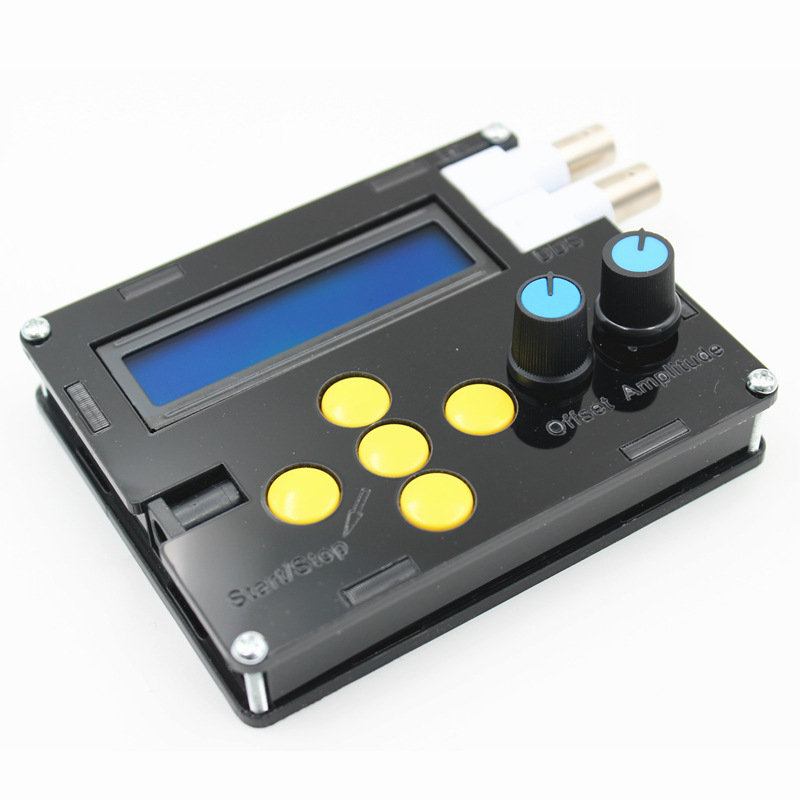

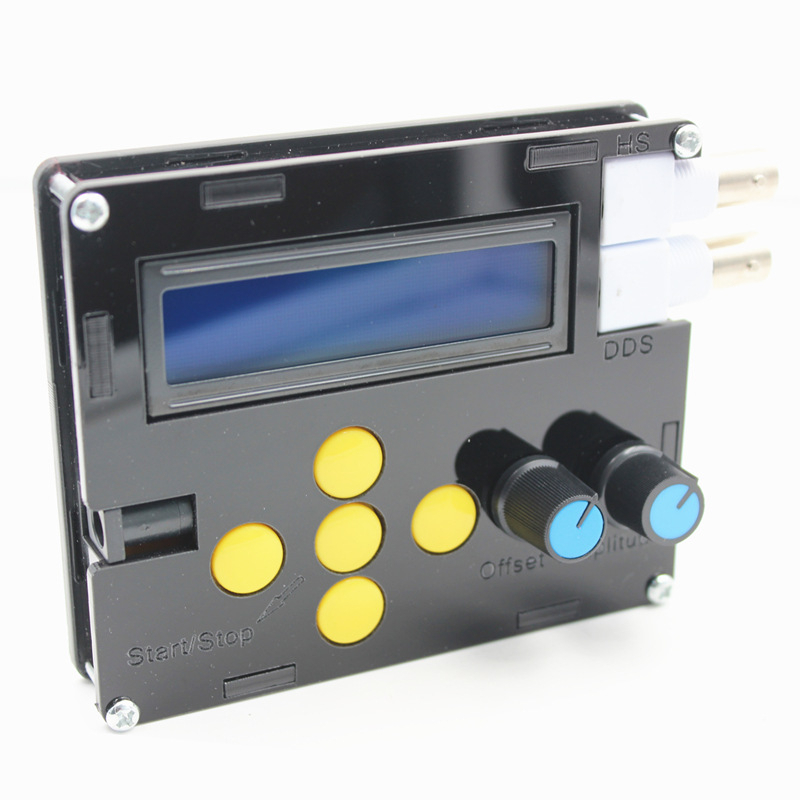

Gambar produk
