DDHIFI BM4P Headphone Cable Replacement Adapters Set BM25 BM35 BM44 Plugs with Aluminum Alloy Shell

Detail DDHIFI BM4P Headphone Cable Replacement Adapters Set BM25 BM35 BM44 Plugs with Aluminum Alloy Shell

DDHIFI BM4P Headphone Cable Replacement Adapters Set BM25 BM35 BM44 Plugs with Aluminum Alloy Shell

DDHIFI BM4P Headphone Cable Replacement Adapters Set BM25 BM35 BM44 Plugs with Aluminum Alloy Shell

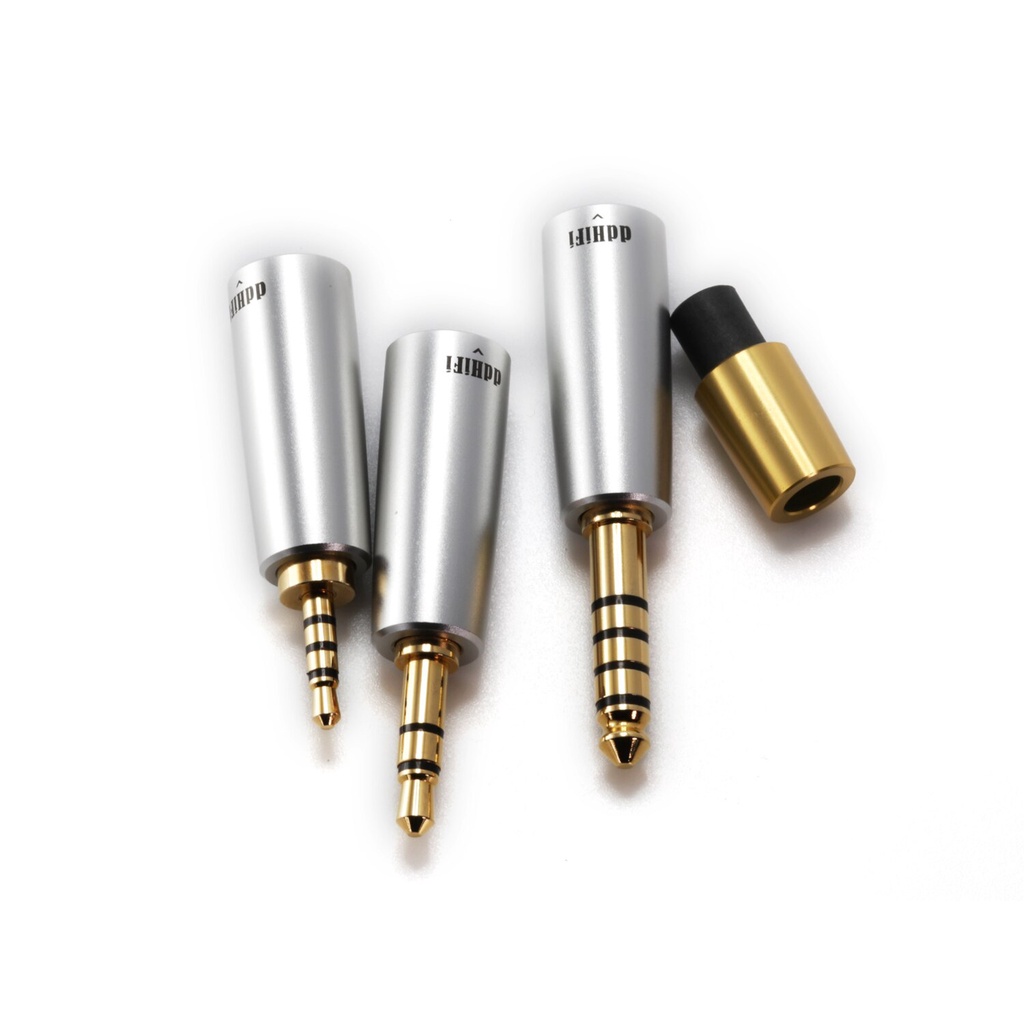

【Configuration of “3+1”】

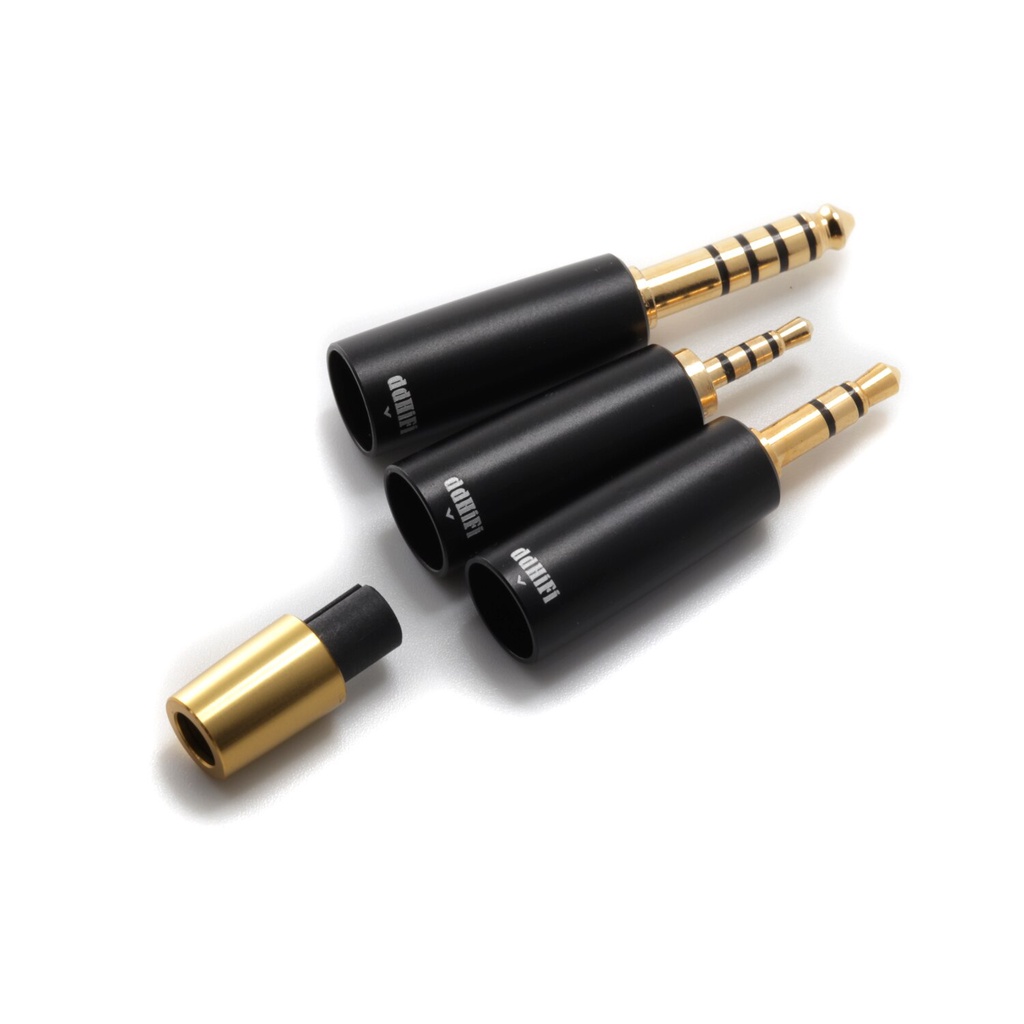

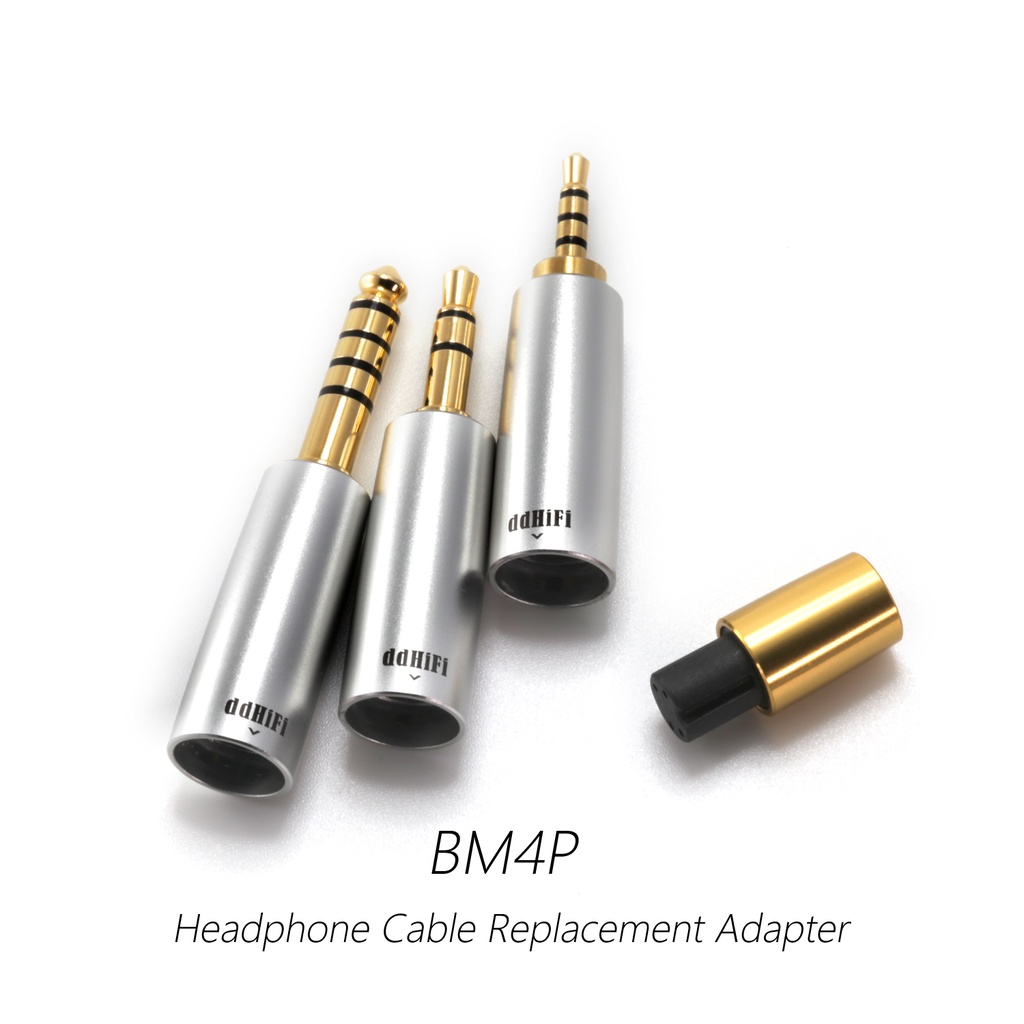

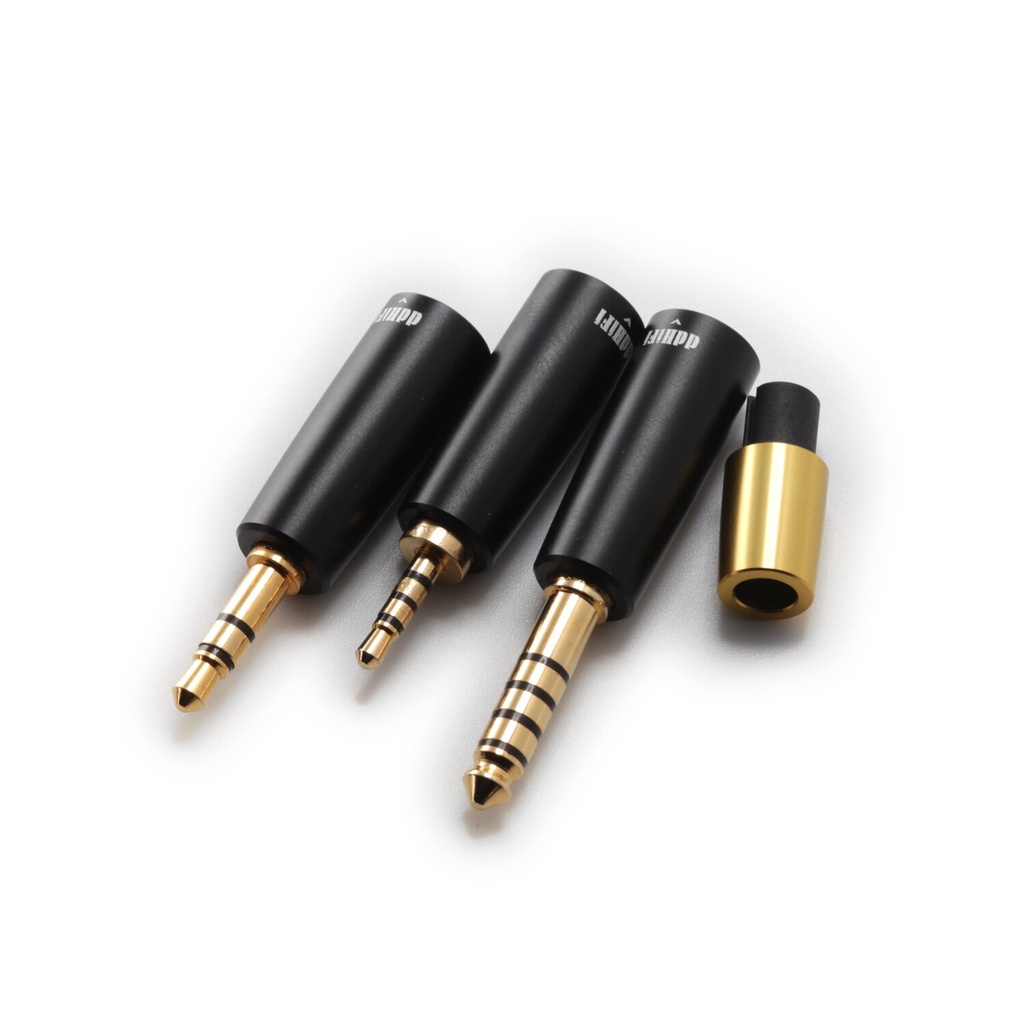

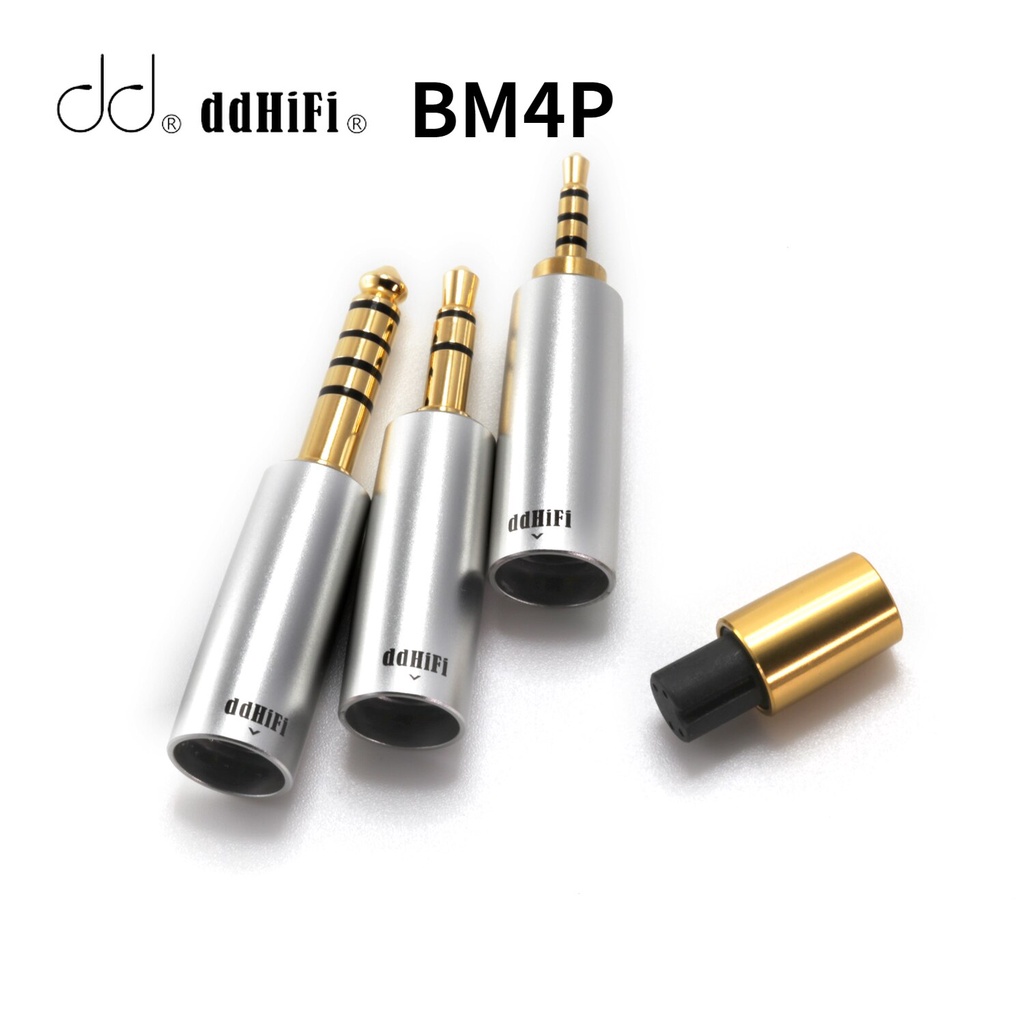

In the package of BM4P, you will find 3 male plugs （ BM25+ BM35 + BM44） and 1 female （4pin) socket and shell. It's designed for audiophiles with basic hands-on skills.



【Do-it-yourself Headphone Cable】

Please follow the picture to solder the left and right channels of the earphone Cable. Put on the shell after insulation, and use quick-drying glue to fix the shell and the female socket. To avoid burns during soldering, be sure to use clamps to fix it.

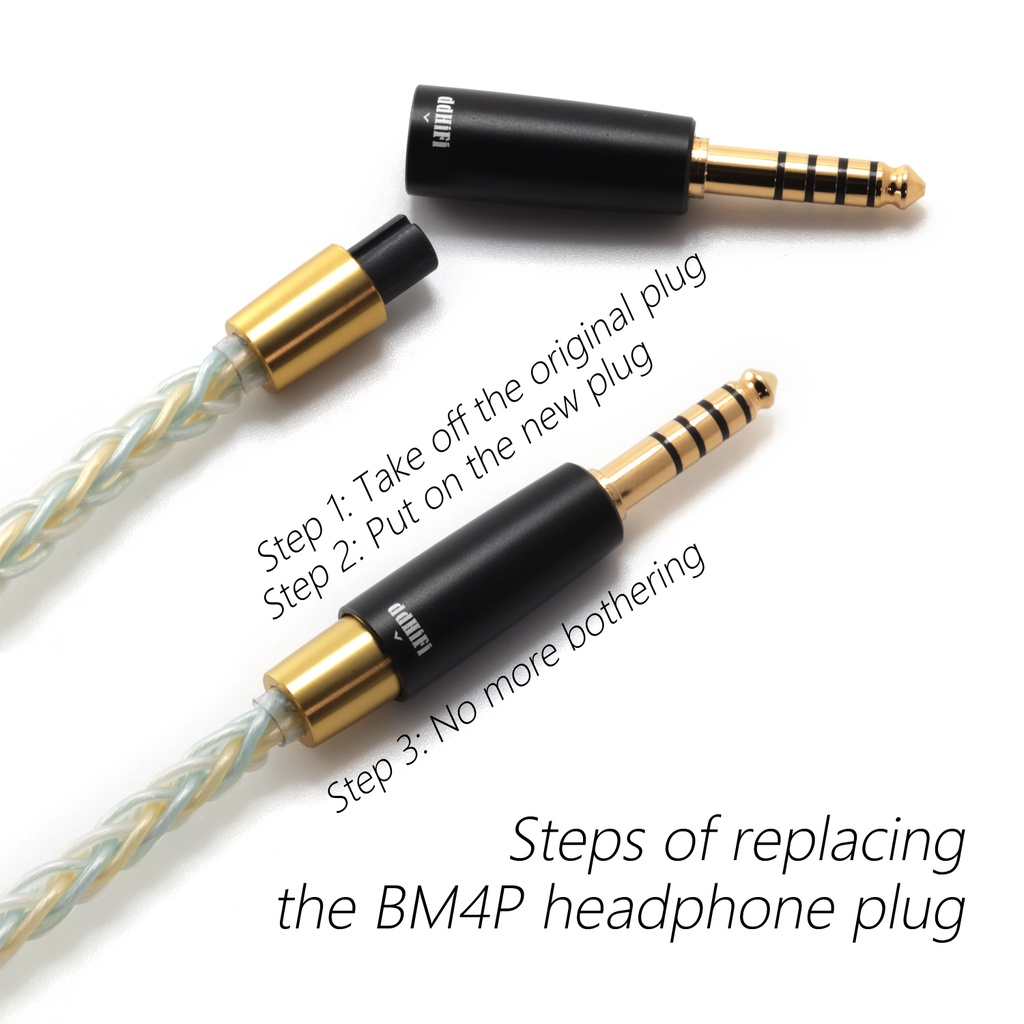

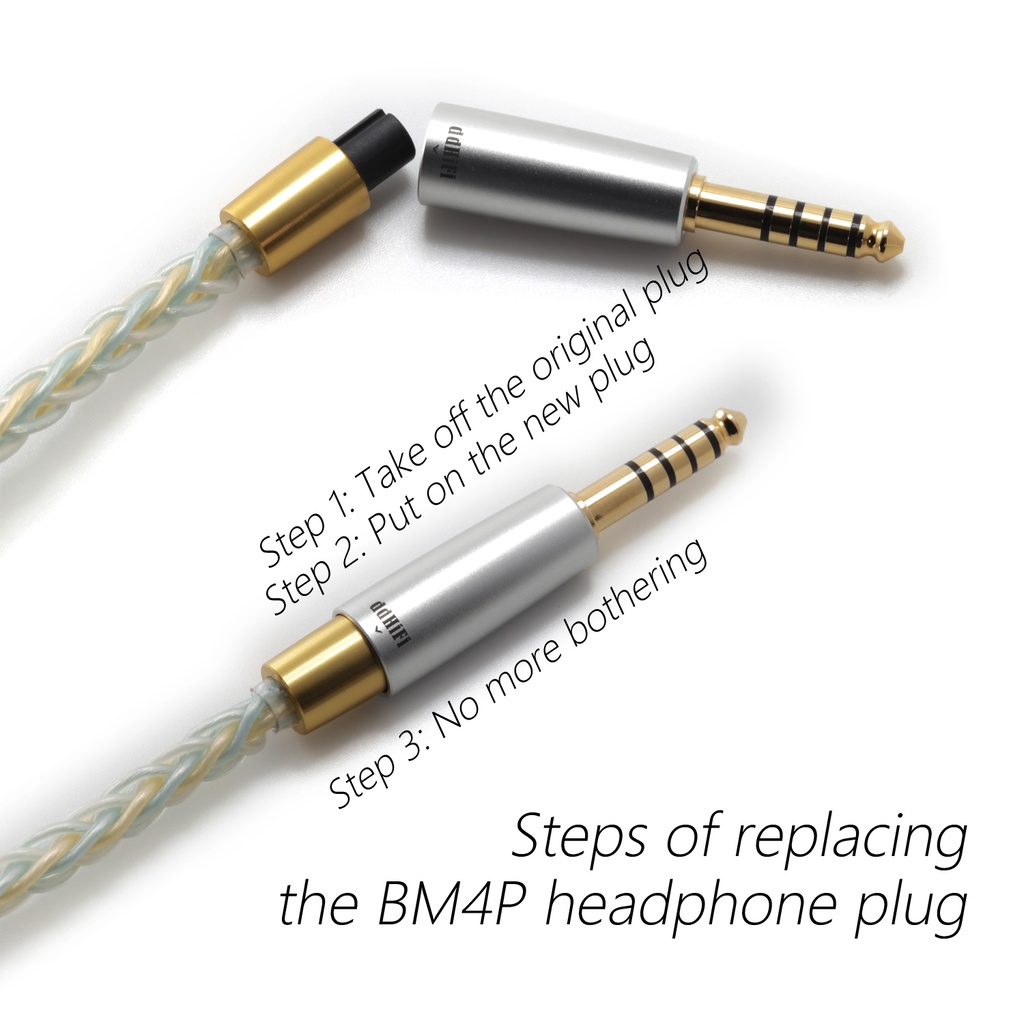

【Steps of Replacing the BM4P Headphone Plug】

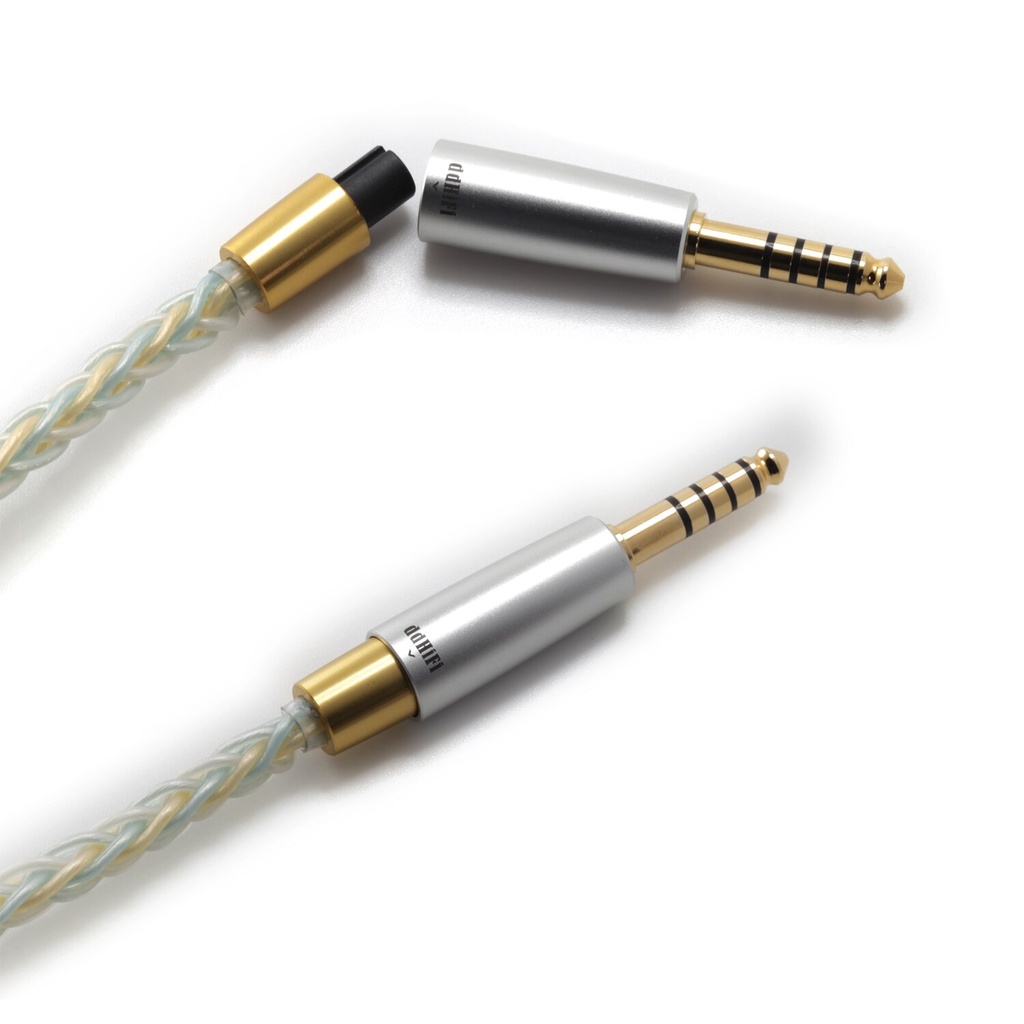

Step 1: Take off the original plug. Step 2: Put on the new plug. Step 3: No more bothering. Audiophile with simple hands-on ability can easily operate, find the fun of DIY cable.



【Aluminum Alloy Shell 】

DDHIFI BM4P headphone cable replacement adapters set is made of aluminum alloy shell, stylish and compact, easy to operate. Also available in black and silver, owns both matchability and durability.



Tips for DIY process:

Please kindly note that this product is designed for audiophiles with basic hands-on skills. In order to facilitate DIY process, we’ve prepared a small piece of silver-containing solder wire and heat shrinkable tube. But you can also purchase suitable solder wire and heat shrinkable tube accessories according to the personal headphone cable or through other channels. Fast-drying glue such as 406 is recommended for fixing glue.



Specifications:

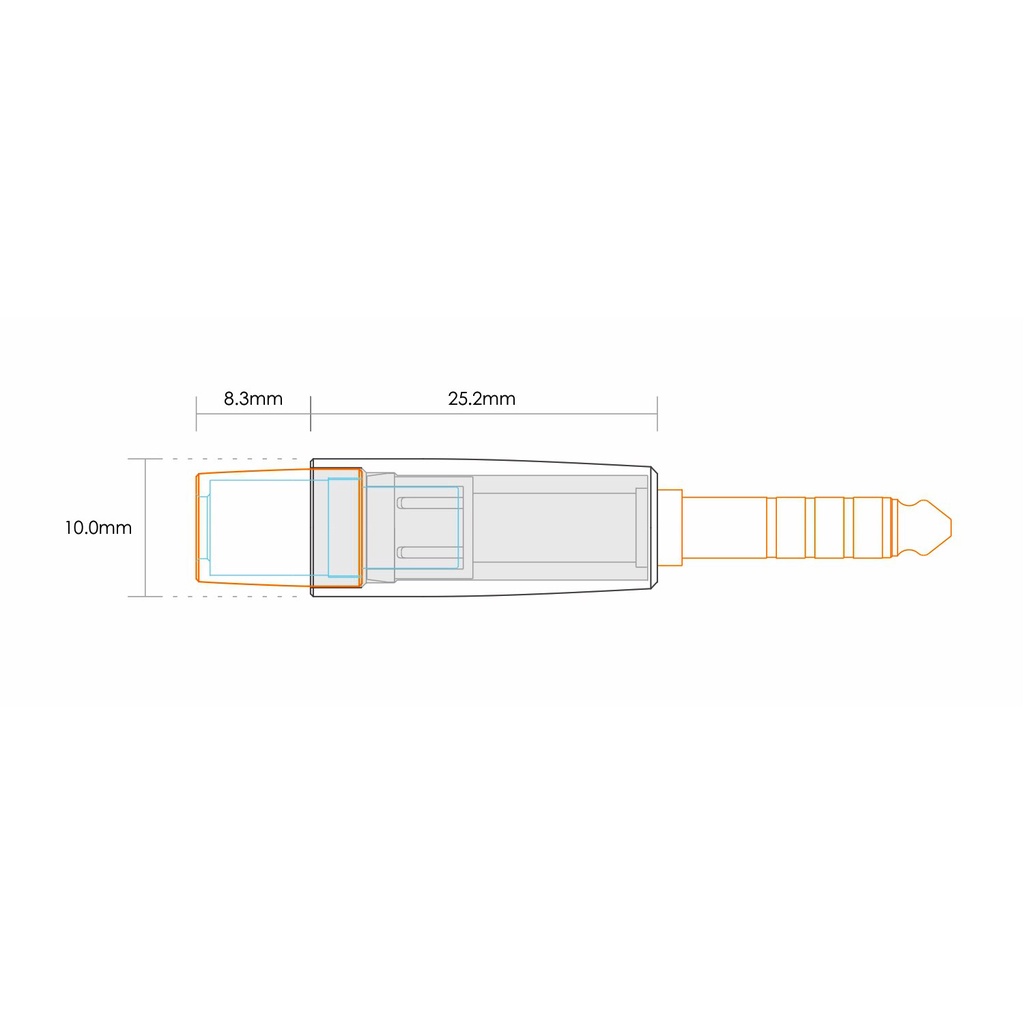

Length of shell (after assembly): 33.5mm (excl. the plug)

Weight: 4.0g (BM25)/ 4.1g (BM35) / 5.1g (BM44)

Material of plug: High purity 24K gold -plated copper

Internal connecting material: mixed conductor of OCC and silver-plated OCC

Material of shell: 6063 aluminum alloy
