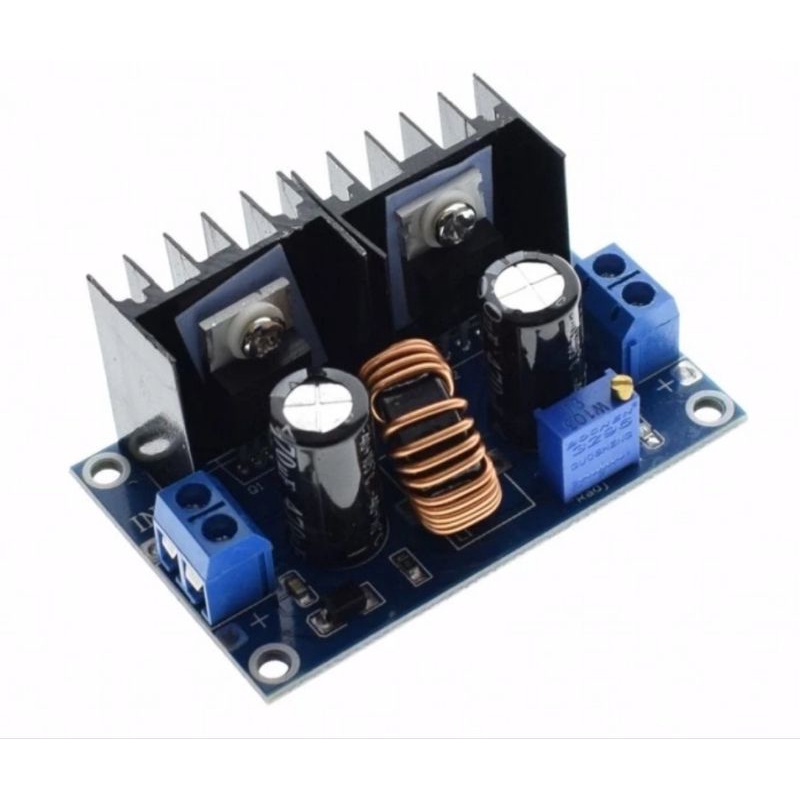

Detail DC to DC converter xl4016 pwm 4-38v to 1.25-36v adj step down board module

Features:
The voltage regulator has excellent linearity regulation and load regulation
With multiple protection: over-current protection, over-temperature protection and short circuit protection, etc
Wide Application:
Car audio, radio, navigator, monitor, LED car display, air conditioner, interphone, motors etc

Note:
Please make sure there is a 2V voltage difference between input voltage and output voltage
The maximum output current can reach 8A; For long time working please make sure the current is less than 5A.
This is not a step up module, but a step down module
Product name: DC voltage regulator
Voltage regulating mode: PWM modulation
Input voltage: DC 4-38V
Output voltage: DC 1.25-36V
Maximum current: 8A(please add fan and make current less than 5A for a long term use)
Maximum power: 200W
Conversion efficiency: 95%
Switching frequency: 180KHz
Working Temperature: -45~+85℃
Size: 6x3.7cm/2.36x1.46inch
