Size: 5.2 x 2.65 x 1.4cm (L x W x H) Module Properties: non-isolated constant current and voltage module Rectification: non-synchronous rectification Input voltage: 8V-36V Output voltage: 1.25V-32V Output current: adjustable maximum 5A Conversion efficiency: 95% (the highest) Switching frequency: 180KHz Output ripple: 50mV (max) 20M bandwidth Load Regulation: ± 0.5% Voltage Regulation: ± 2.5% Operating Temperature: -40 °c to +85 °c
Gambar produk

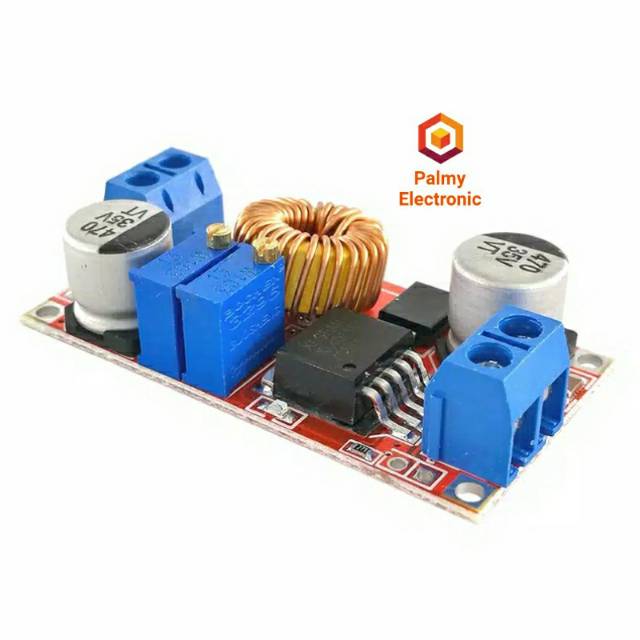

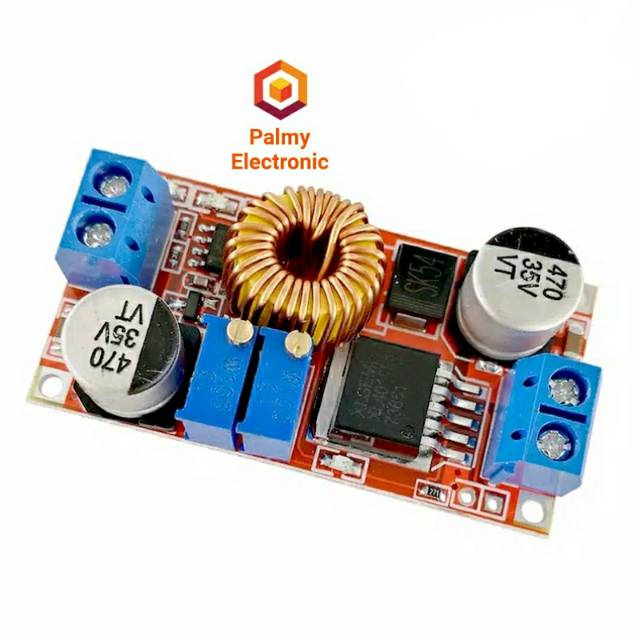

DC to DC Buck Converter XL4015 5ADC to DC Buck Converter XL4015 5ADC to DC Buck Converter XL4015 5ADC to DC Buck Converter XL4015 5ADC to DC Buck Converter XL4015 5A
