DC TO DC 3A Stepdown LM2596 Module Adjustable Mini Power Supply
Deskripsi singkat
Komputer & Aksesoris > Komponen Desktop & Laptop > Power Supply > DC TO DC 3A Stepdown LM2596 Module Adjustable Mini Power Supply
- Pengiriman Ekspres
- Barang yang diperiksa
- Bayar di tempat berlaku
- Kualitas, Prestise
- Pengembalian produk
- Dukung pembuatan faktur
Produk Terkait
Detail DC TO DC 3A Stepdown LM2596 Module Adjustable Mini Power Supply

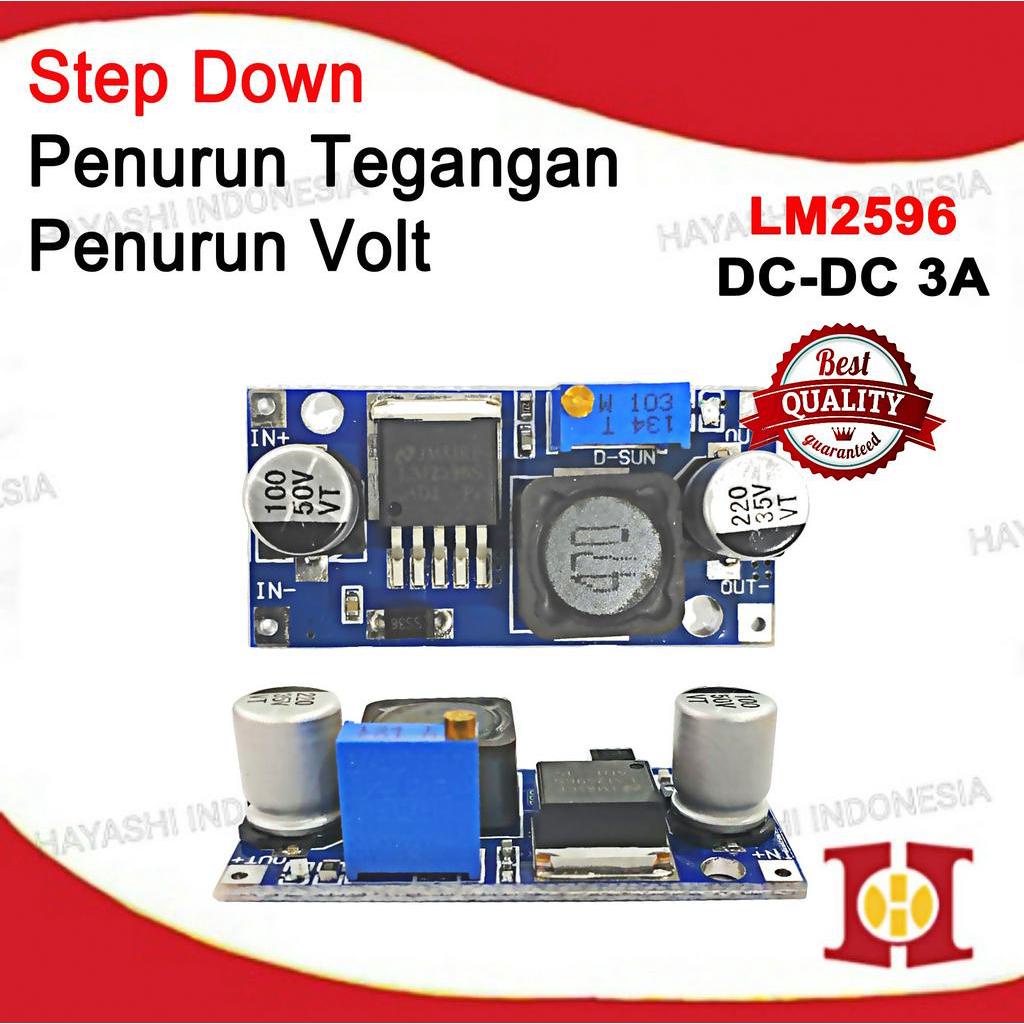

DC to DC Stepdown 3A, LM2596 mini module 0.36inch (Red)** Spesifikasi :
- Input voltage : 3.5V - 35V
- Output voltage : 1.25V - 30V (Adjustable)
- Dropout Voltage : input voltage must be higher than output voltage
- Output Current : 0-3A, 3A Maximum
- Conversion Effeciency : 95% maximum (the higher output voltage, the higher effeciency)
- Size : 41 (L) x 20 (W) x 14 (H) mm (including potentiometers)
- Operating Temperature : -40 to 85(C)
- Voltage Regulation : 2.5%
- Load Regulation : 0.5%
- Output Ripple : 30mV (max)
- Switching Frequency : 150KHz
- Rectification : Non-Synchronous rectification
module properties : non-isolated constant current and voltage module.
isi paket :
1x Stepdown module DC to DC LM2596 3A
Gambar produk
