Dc step up regulator promo

Detail Dc step up regulator promo

Deskripsi Dc step up regulator promo

bisa diatur tegangan keluarnya
barang sudah di tes jadi jangan khawatir
Features:
Advanced microprocessor,
Use button fine regulated output voltage, current
4 bit high brightness LED, real-time display output voltage, current, you can manually switch shown, can also set set auto rotate

Specification:
Input voltage: 6V -40V
Input Current: 15A (max)
Output voltage: 8V -80V (adjustable)
Output power: 400W (max)
Output current: maximum output current of 10A (adjustable)
Output power: the effective power P = input voltage V * 10A
Conversion efficiency: up to 95% (input voltage, current; output voltage and current impact of conversion efficiency)
Short circuit protection: Fuse
Size: 85 * 75 * 64mm
Weight: 295g

Applications:
1. DIY an output adjustable power supply, only need to enter the access 6v, 12V.24v. 36v power supply or battery can be (14V-80V) free continuous adjustment, but the output voltage can not be lower than the input voltage.
2 universal car laptop power supply. Input connected to 12V power supply, the output voltage can be adjusted to the notebook need work.
3.Boost charger with 12V power supply is higher than 12V battery charging, for example, 24V battery and charging current can be adjusted.
4. For electronic equipment power supply, as long as the voltage regulator to the required voltage and current does not exceed the rated current is normal.

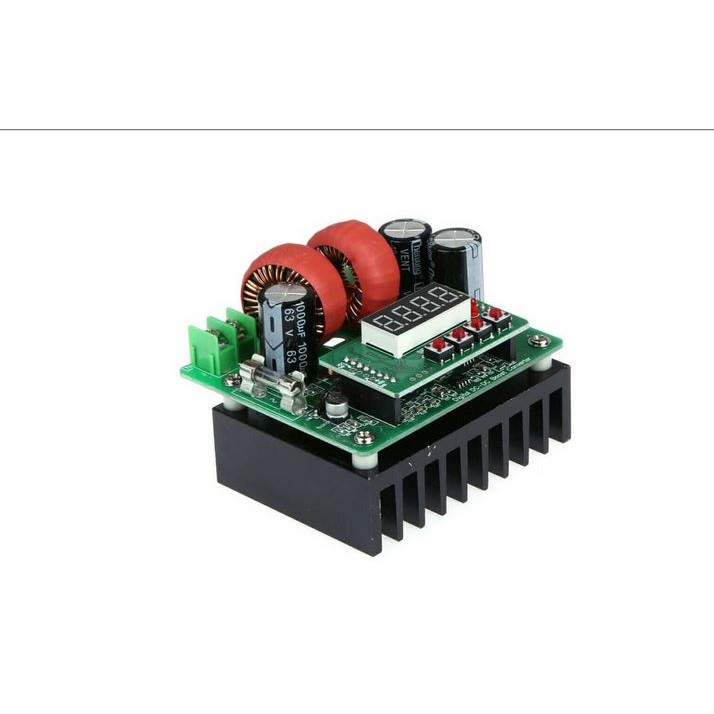

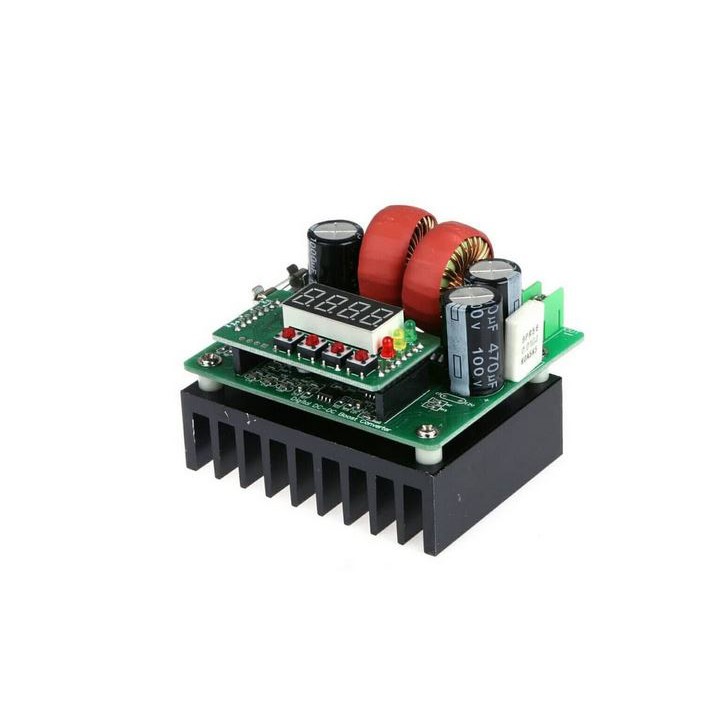

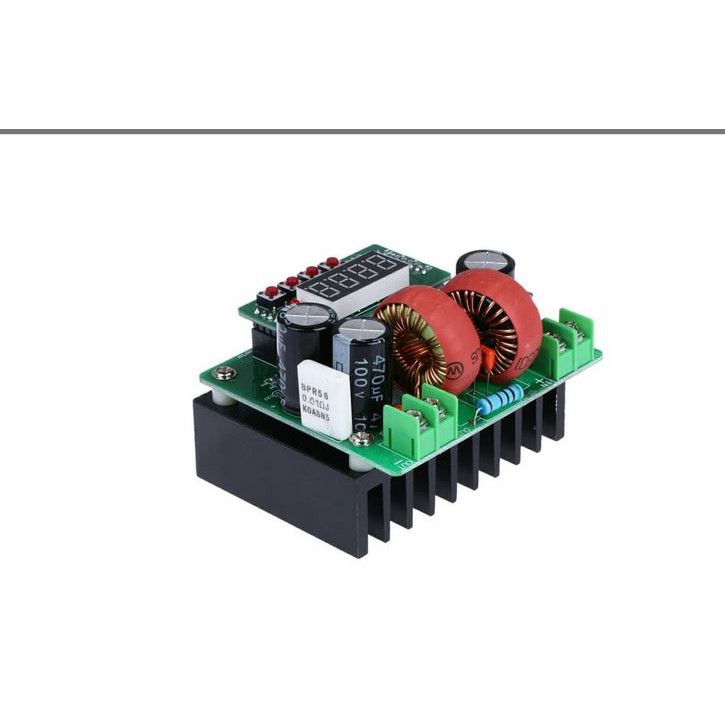

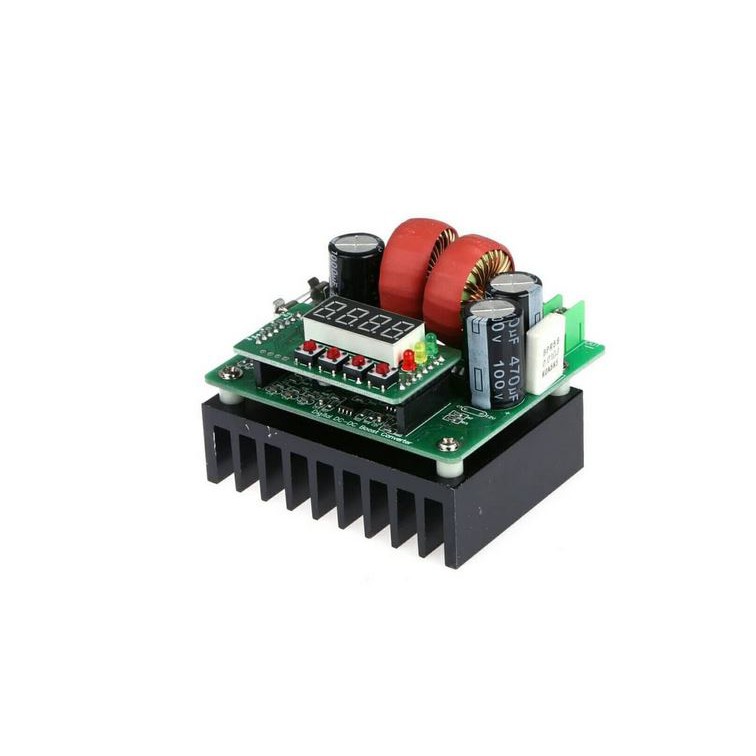

Gambar produk
