DC Out 5 - 50V XL6009 Boost Step Up Converter Module Power Supply Red

Detail DC Out 5 - 50V XL6009 Boost Step Up Converter Module Power Supply Red

DC Out 5 - 50V XL6009 Boost Step Up Converter Module Power Supply Red

Step Up / Boost Converter versi XL6009 dengan tegangan out lebih lebar mencapai 50V
Produk sudah di test "by ArfanStore" dengan tegangan input 3V dan Out 50V

Spesifikasi:
Input voltage: 5-32V
Output voltage: 5-50V (Adjustable / bisa di seting sesuai keperluan)
Input Current Max: 4A
Output Current Max: 2.5A
Output Power: 15W (naturan cooling), Max 25W (+Heatsink)

Operating temperature: Industrial grade (-40 C to + 85 C) (ambient temperature exceeds 40 degrees, lower power use, or to enhance heat dissipation)
Full load temperature rise: 45 C
Operating frequency: 400khz
Load current: 5V turn 12V 15mA, 8.4V turn 12V 7mA, 12V switch 24V 9mA, 12V switch 36V 18mA, 24V switch 48V 9mA, 24V switch 36V 6mA.
Load regulation: 0.5%
Voltage regulation: 0.5%
Dynamic response speed: 5% 200uS
Enable Control Port: Yes, high 1.4V-VIN (ON), low 0-0.8V (OFF), the default high
Short circuit protection: None (Please install fuse or protection circuit input)
Input reverse polarity protection: None, please with our reverse protection diode board or in the input series.
Installation: You can screw (Fixing holes 3 mm), 2 fixing holes

Paket:
1 buah XL6009 5-50V

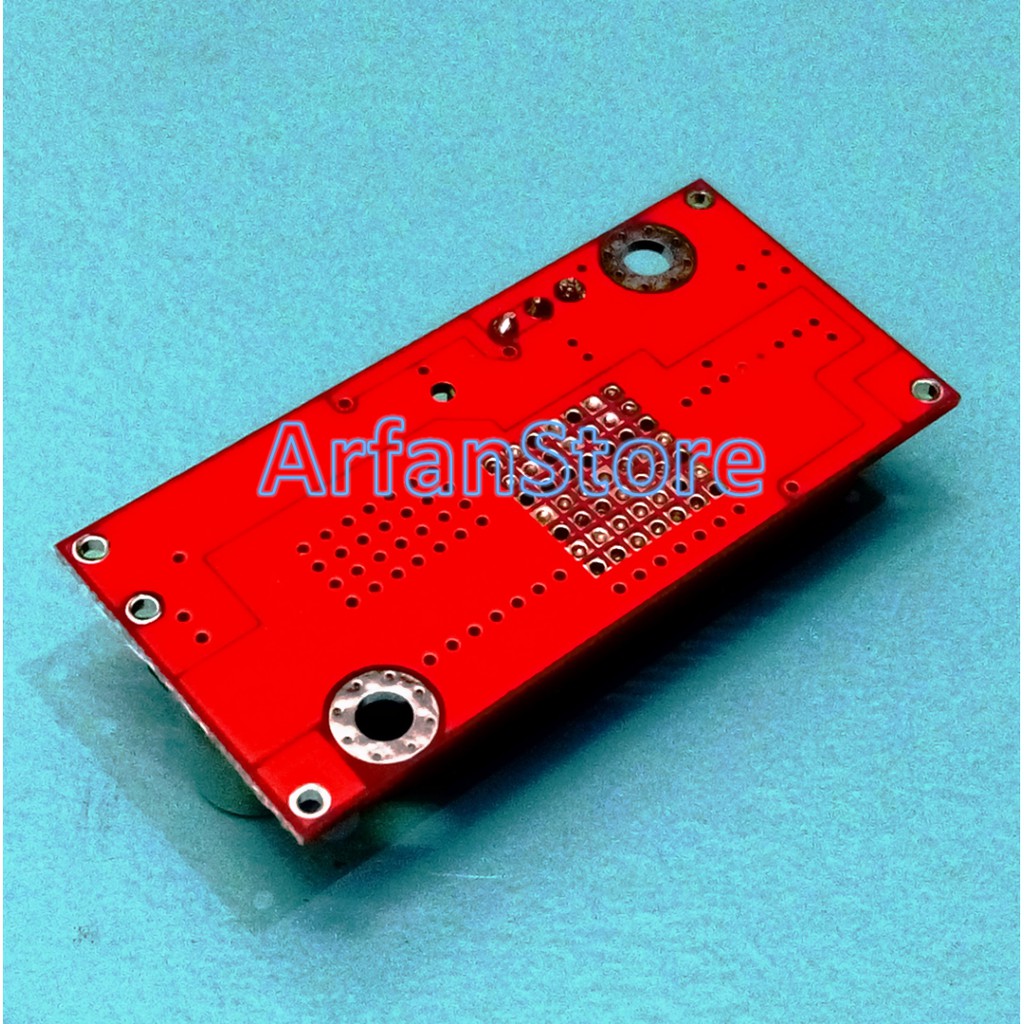

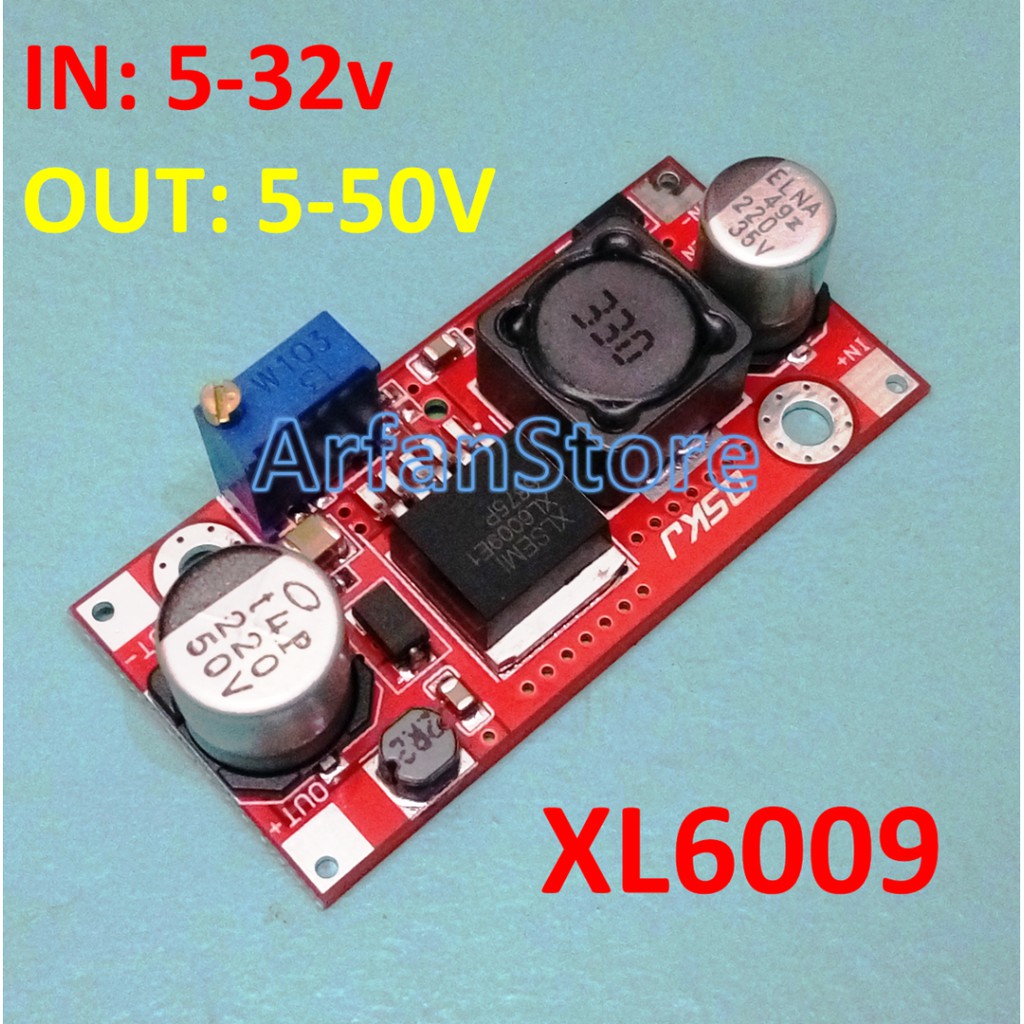

Gambar produk
